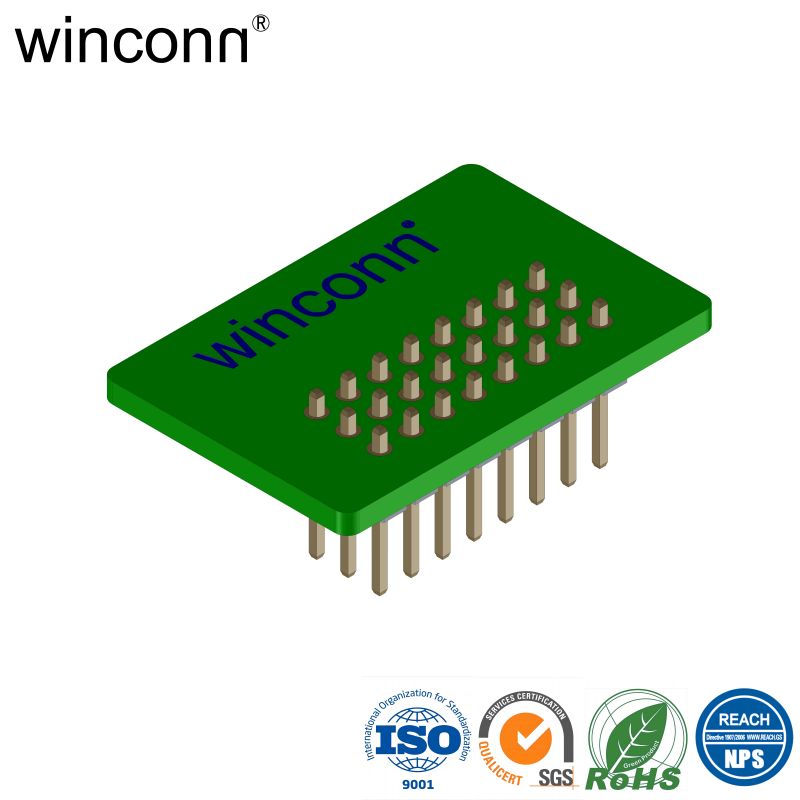

Pin Header Pitch=2.54mm Triple Row Straight DIP Type

P/N: WPH-8001-3XX-4GXB-XR
Packing: Bag/Tray/Tape Reel
Delivery time: 10~20 Days
RoHS/HF/GP Compliant
Availability:
  • WPH-8001-3XX-4GXB-XR

  • winconn

Product Description

Pin Header Pitch=2.54mm Triple Row Straight DIP Type

P/N: WPH-8001-3XX-4GXB-XR


1. MATERIAL:

HOUSING: THERMOPLASTIC,HIGH TEMP, 30% G/F

UL 94V-0, COLOR:BLACK.

CONTACT: BRASS.


2. FINISH:

CONTACT: AU PLATING OVER NI(50m" MIN.)

3.ELECTRICAL:


CONTACT RESISTANCE: 20mΩ Max.

INSULATION RESISTANCE: 1000MΩ Min.

DIELECTRIC WITHSTANDING VOLTAGE: 500V AC

CURRENT RATING: 3A


4.ENVIRONMENTAL:

OPERATING TEMPERATURE: -25°C TO +85°C


WPH-8001-3XX-4GXB-XR

2D Drawing
