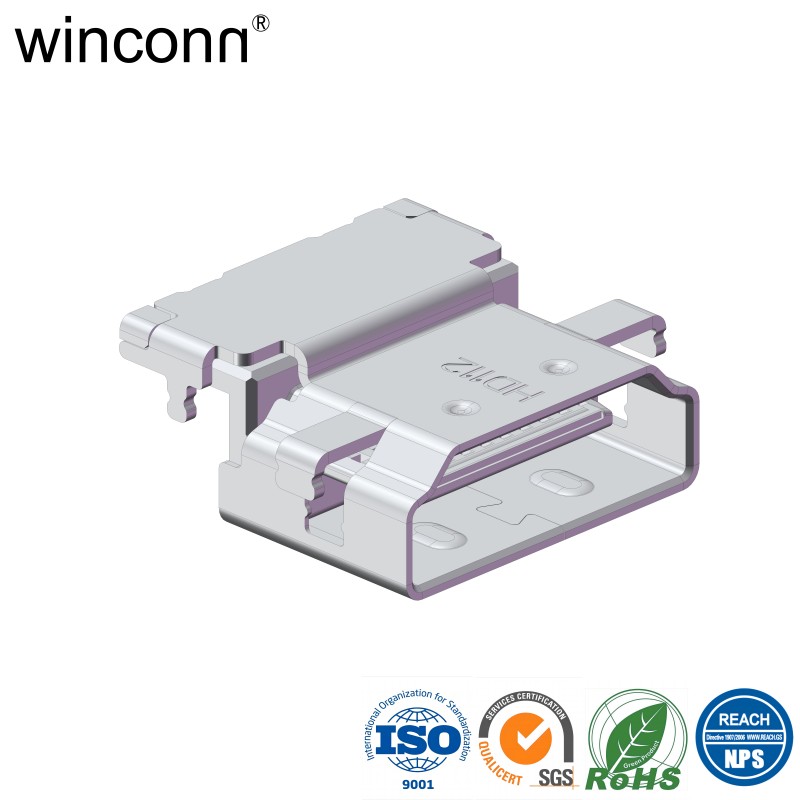

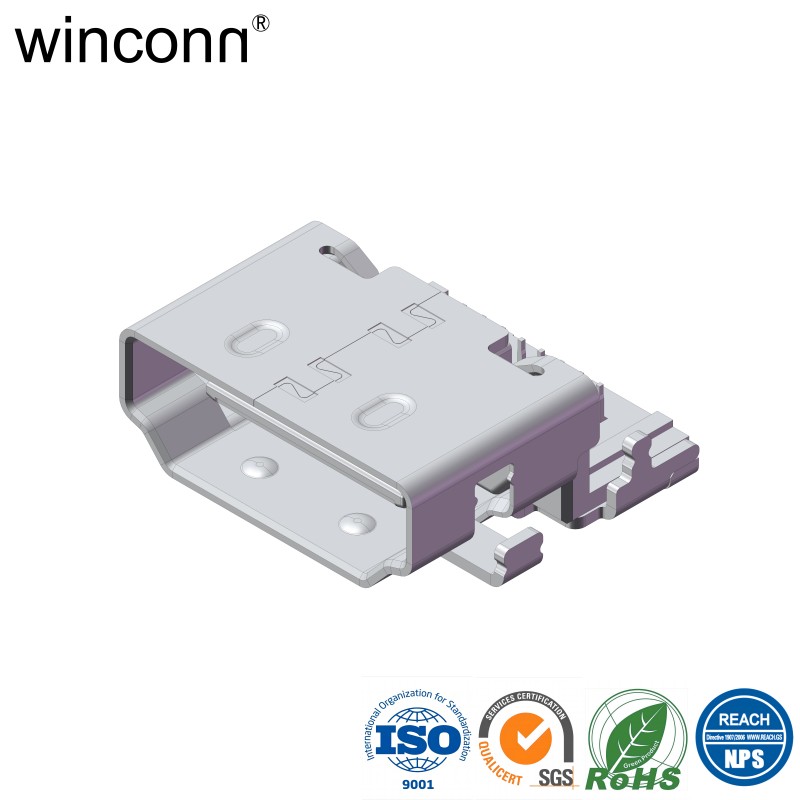

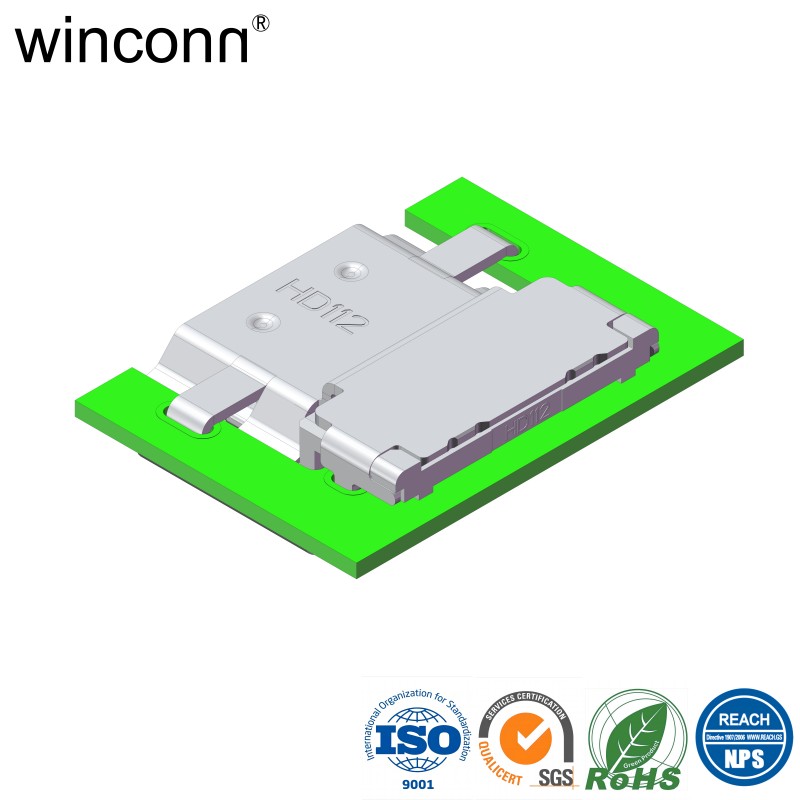

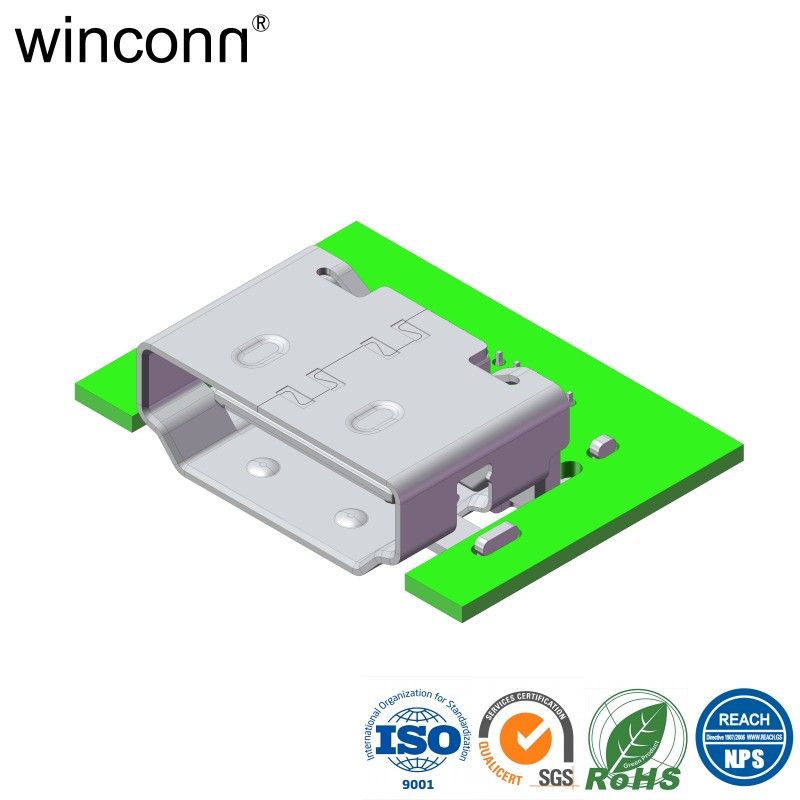

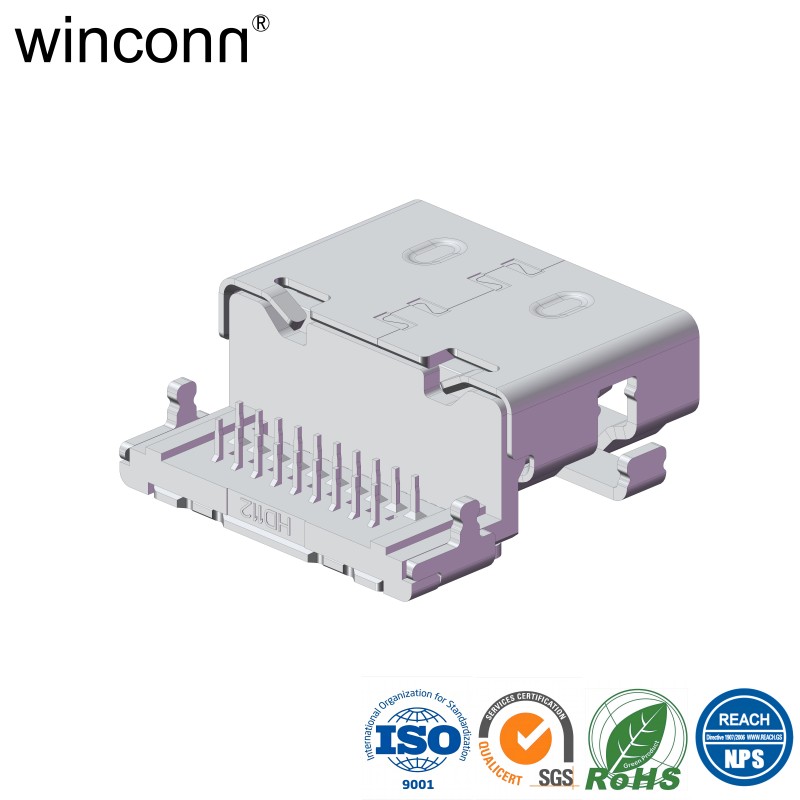

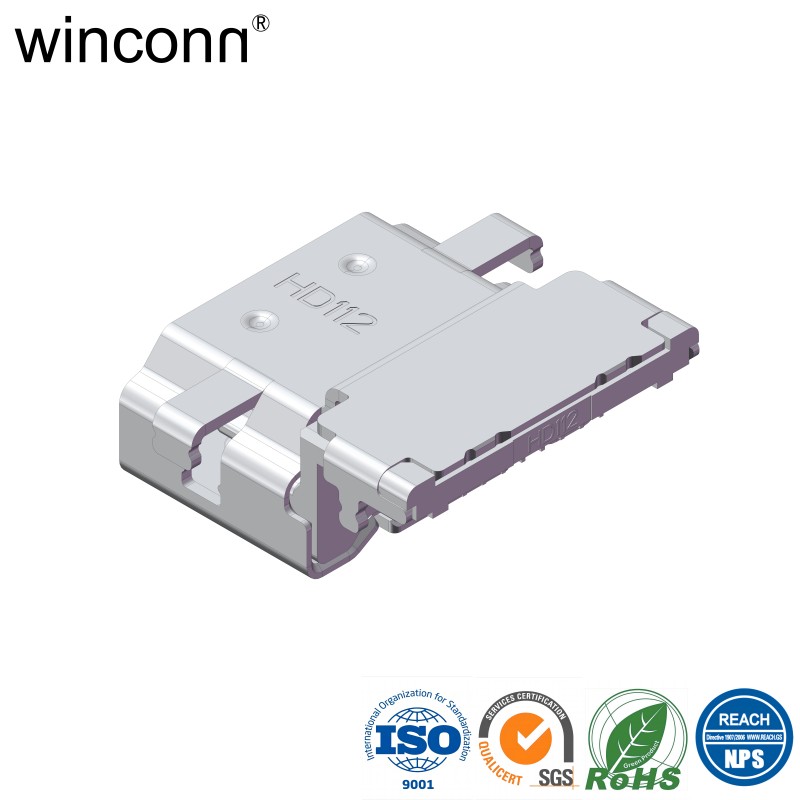

Type A 19P through hole HDMI socket

19P Type A through hole HDMI socket,through hole 19P Type A HDMI socket,Type A through hole 19P HDMI socket,HDMI Type A through hole 19P socket,HDMI socket Type A through hole 19P
Availability:
  • HD112-AB1101

  • winconn

Product Description

NOTES:

1.MATERIAL:

1.1 INSULATOR:LCP E130i WITH 30% G/F UL 94V-0 COLOR:BLACK

1.2 CONTACT:BRASS C2680 T=0.20MM

1.3 SHELL:STEEL T=0.5MM


2.PLATING SPECIFICATION:

2.1 CONTACTS:Ni 50u" MIN. UNDER PLATED,GOLD FLASH PLATED

ON THE MATING AREA OF CONTACT.

MATTE Sn MIN. PLATED ON THE SOLDER TALL.

2.2 FRONT SHELL:Black Ni or Ni 50u"MIN. UNDER PLATED OVER ALL.


3.ELECTRICAL CHARACTERISTIC:

3.1 LOW LEVEL CONTACT RESISTANCE:30mΩ MAX.

3.2 DIELECTIC WITHSTANDING VOLTAGE:

300 VAC BETWEEN ADJACENT TERMINAL OR GROUND,No Breakdown

3.3 INSULATION RESISTANCE:100MΩ  MINIMUM(Unmated).

10MΩ  MINIMUM(Mated).


4.MECHANICAL CHARACTERISTIC:

4.1 INSERTION FORCE:44.1N(4.5kgf)MAXIMUM.

4.2 EXTRACTION FORCE:

INITIAL:9.8N(1.0kgf)-39.2N(4.0kgf).

AFTER 2001 TO 10000 CYCLES:4.9N(0.5kgf)-39.2N(4.0kgf).


5.SALT SPRAY TEST: 24H
