P/N: PC8009-X0XX (36P)/PC8010-X0XX (64P)/PC8011-X0XX (98P)/PC8012-X0XX (164P)
Packing: Bag/Tray/Tape Reel
Delivery time: 10~20 Days
RoHS/HF/GP Compliant
0
0
P/N: SA9001-X0XX
Packing: Bag/Tray/Tape Reel
Delivery time: 10~20 Days
RoHS/HF/GP Compliant
0
0
SEND US A MESSAGE

Pin header connectors are a fundamental component in the electronics industry, serving as a bridge for electrical signals between two points without the need for soldering. WCONN Connector, a leading provider of high-quality connectors, offers an extensive selection of pin header connectors designed to meet various application needs.

Types of Pin Header Connectors:

1、Single Row Pin Headers:
These are the simplest form of pin headers, featuring a single row of pins. They are widely used in smaller devices where space is limited and a few connections are required.

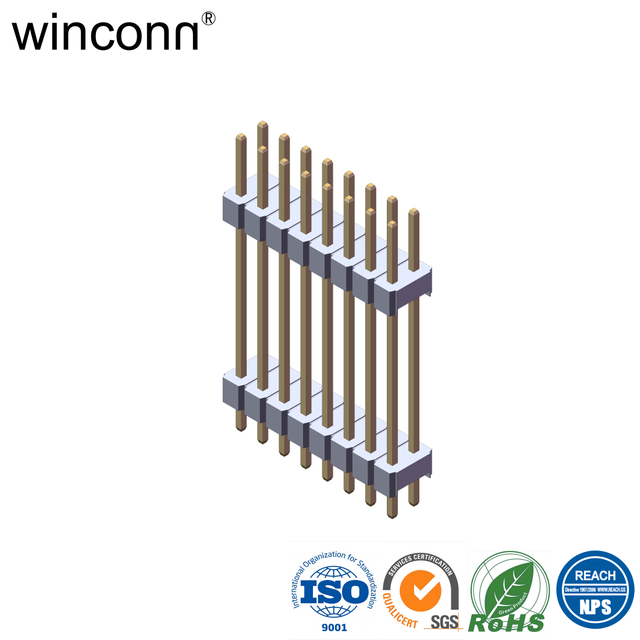

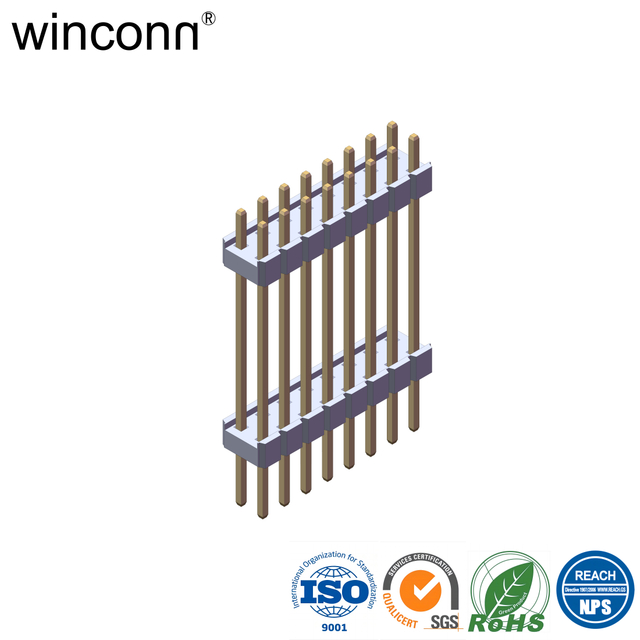

2、Dual Row Pin Headers:
Dual row pin headers double the connectivity in a compact space, providing two parallel rows of pins. They are ideal for denser board layouts and higher connection density requirements.

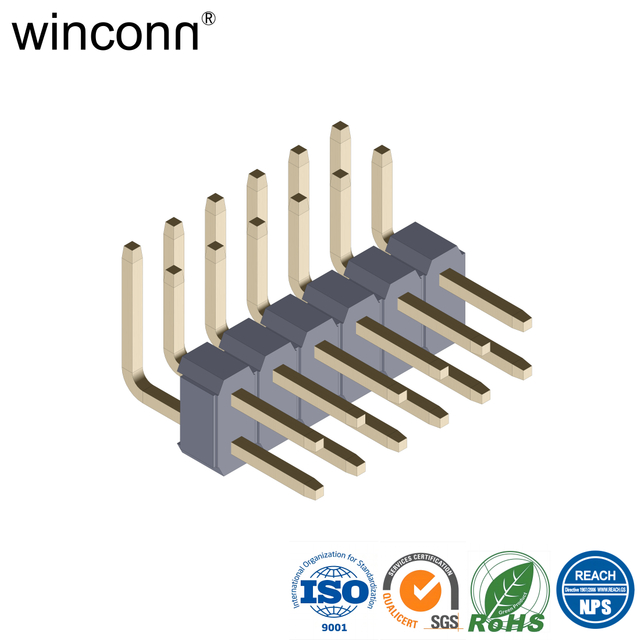

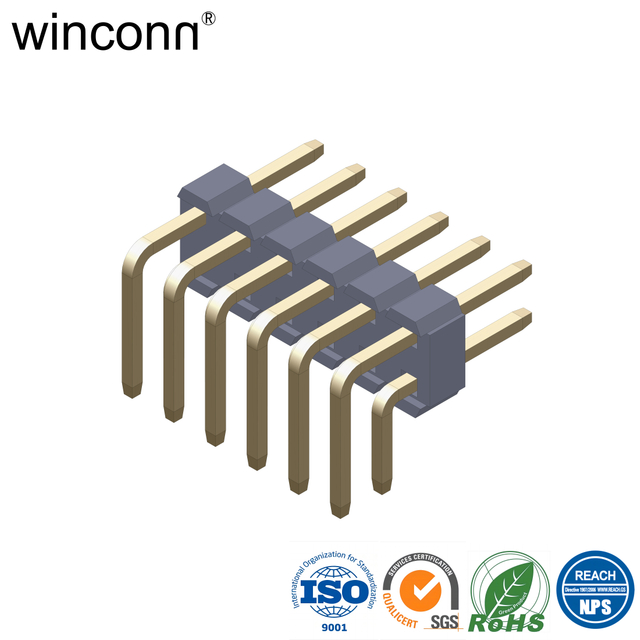

3、Right-Angle Pin Headers:
Right-angle pin headers are designed to allow horizontal connections on a vertical plane, making them perfect for applications where vertical space is constrained.

4、Shrouded Pin Headers:
Shrouded pin headers come with a plastic enclosure that helps guide the mating connector and provides additional protection against misalignment, dust, and short circuits.

5、Board-to-Board Pin Headers:
These connectors are designed to connect two PCBs together in a stackable or side-by-side configuration, facilitating modular design and easy assembly.

Uses:
Pin header connectors from WCONN Connector are utilized in a multitude of applications, including:

1、Prototyping and development boards
2、Consumer electronics such as computers, gaming consoles, and home appliances
3、Industrial machinery for signal and power transmission
4、Automotive electronics for control units and infotainment systems
5、Medical devices where reliable connections are crucial

Advantages:
WCONN Connector's pin header connectors offer several advantages:

1、Versatility: With various configurations and pitches, they can be adapted to a wide range of applications.
2、Durability: Manufactured with high-quality materials, these connectors ensure a long operational life.
3、Ease of Use: Pin headers are designed for easy insertion and removal, facilitating maintenance and testing.
4、Customization: WCONN Connector provides options for customization, allowing clients to meet specific design requirements.
