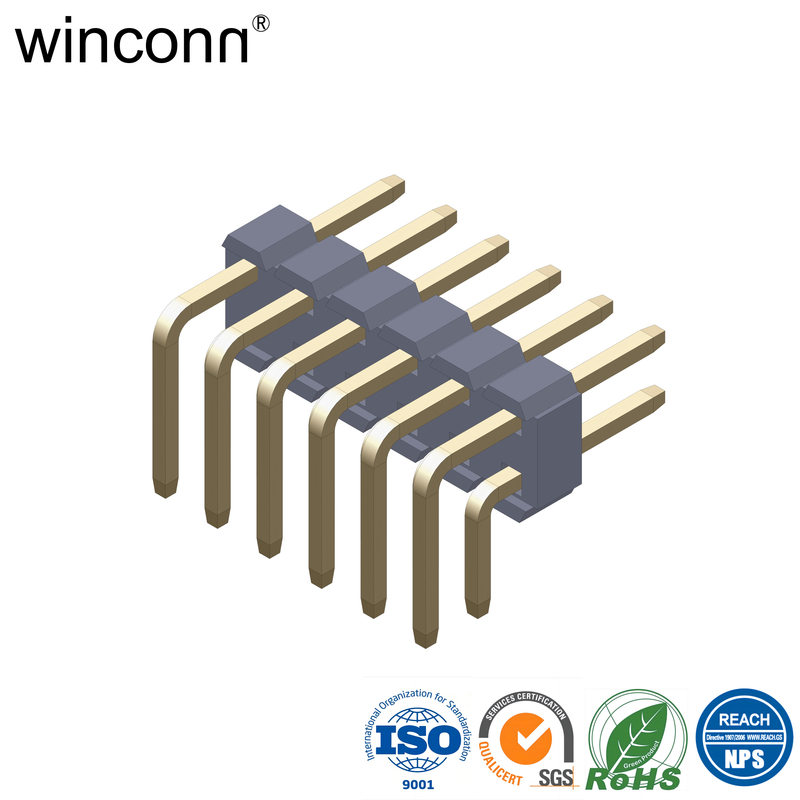

PCB Connector Male Right Angle Double Row 2.0mm Pitch Pin Header

PCB Connector Male Right Angle Double Row 2.0mm Pitch Pin Header

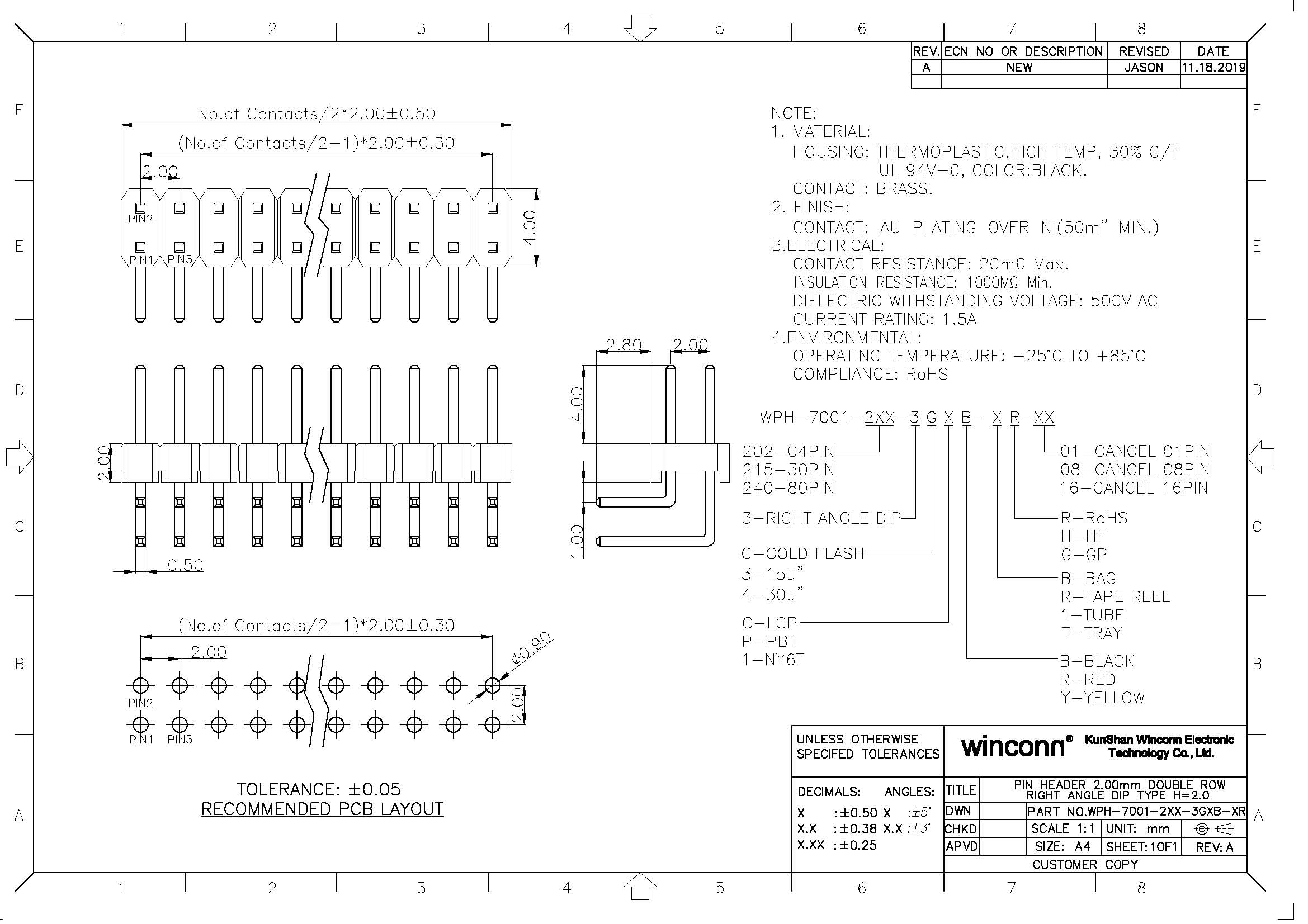

P/N: WPH-7001-206-3GXB-XR

1. MATERIAL:
     HOUSING: THERMOPLASTIC,HIGH TEMP, 30% G/F
                       UL 94V-0, COLOR:BLACK.
     CONTACT: BRASS.
   2. FINISH:
     CONTACT: AU PLATING OVER NI(50m" MIN.)
   3.ELECTRICAL:
     CONTACT RESISTANCE: 20mΩ Max.
     INSULATION RESISTANCE: 1000MΩ Min.
     DIELECTRIC WITHSTANDING VOLTAGE: 500V AC
     CURRENT RATING: 1.5A
   4.ENVIRONMENTAL:
     OPERATING TEMPERATURE: -25°C TO +85°C

   COMPLIANCE: RoHS or HF
