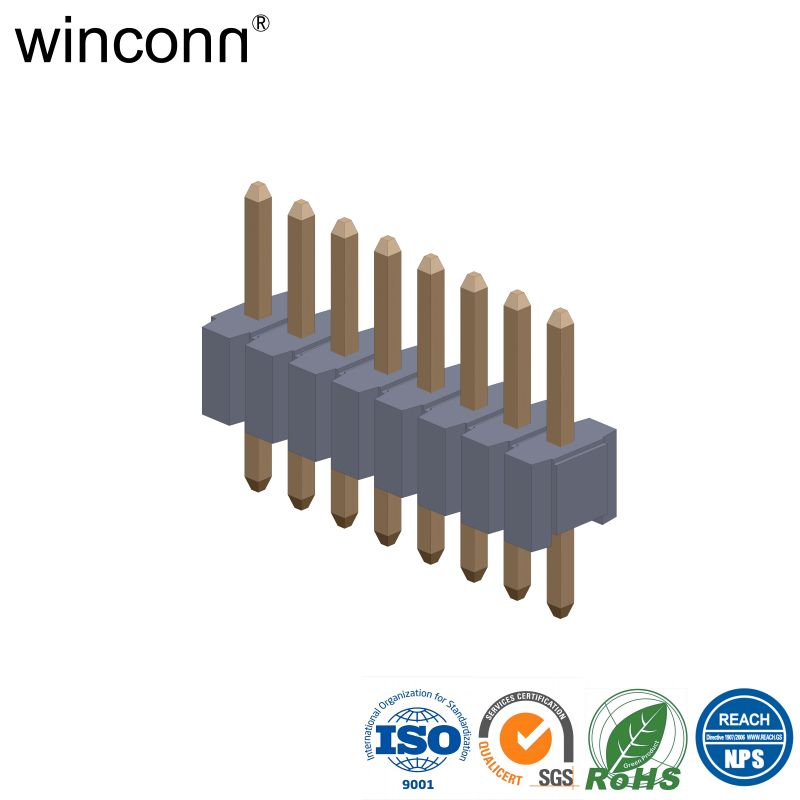

Through Hole Horizontal Copper Alloy High Current 0.05"(1.27mm) Pin Header Connector

PIN HEADER 1.27mm SINGLE ROW STRAIGHT DIP TYPE H=2.0mm

P/N: WPH-6001-1XX-4GXB-XR

1. MATERIAL:
  HOUSING: THERMOPLASTIC,HIGH TEMP, 30% G/F
               UL 94V-0, COLOR:BLACK.
  CONTACT: BRASS.
2. FINISH:
  CONTACT: AU PLATING OVER NI(50m" MIN.)
3.ELECTRICAL:
  CONTACT RESISTANCE: 20mΩ Max.
   INSULATION RESISTANCE: 1000MΩ Min.
  DIELECTRIC WITHSTANDING VOLTAGE: 500V AC
  CURRENT RATING: 1.0A
4.ENVIRONMENTAL:
  OPERATING TEMPERATURE: -25°C TO +85°C
  COMPLIANCE: RoHS
