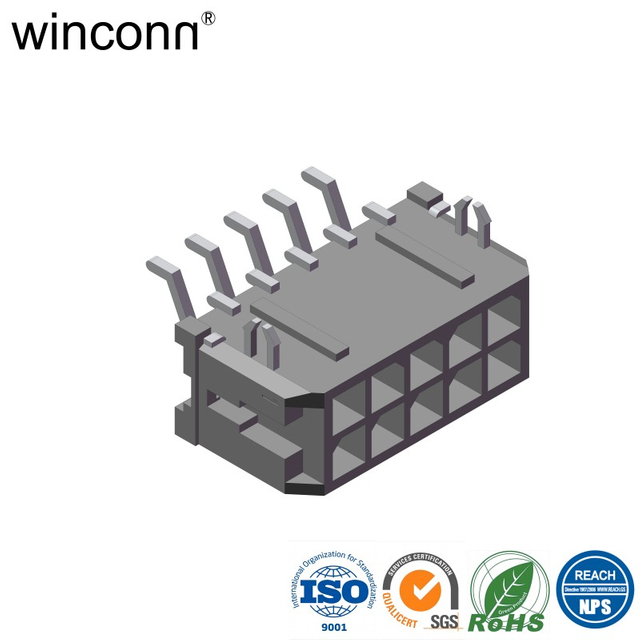

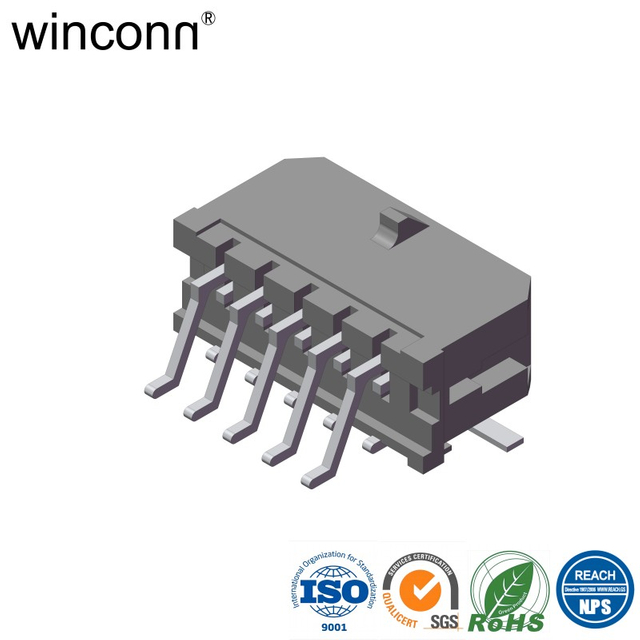

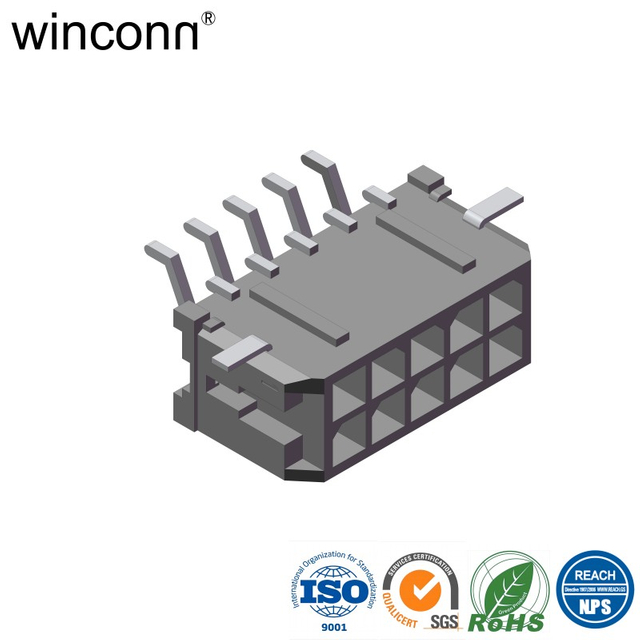

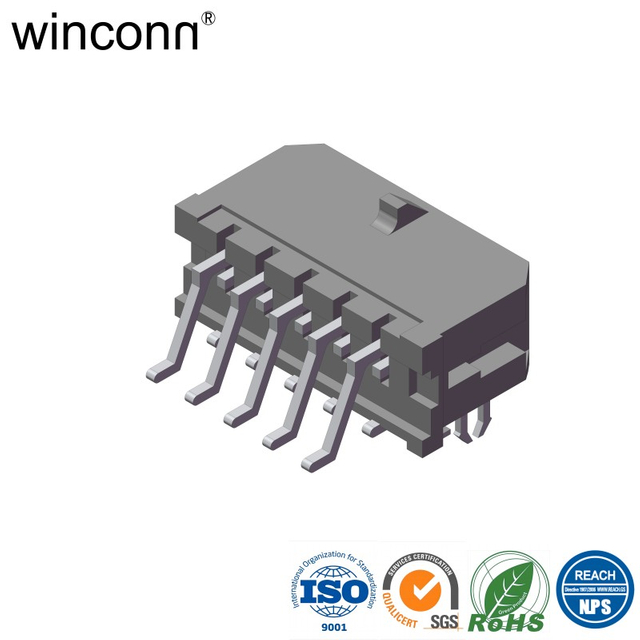

The Micro-Fit Connector delivers an operating temperature from -40° C up to +125° C, offers a double crimp tool and is available in Board-to-Board, Wire-to-Board, and Wire-to-Wire configurations, Its single P current can reach up to 10A, which can meet today's trend to require high current and support blind insertion and latching function. It has a single row; double row, vertical, right angle DIP, vertical SMT, and right angle SMT type. this pitch is 3.0mm, and 1*2~1*12;2*1~2*12P. High-power devices require more current. The customer desires to have this high current without sacrificing the space occupied by a smaller connector. With its unique keying design, the 3.00mm pitch Micro-Fit connector offers up to 13.0A of current, providing high current capacity for different applications in the same space occupied by a smaller connector.
