Straight DIP Home appliances Micro-Fit Socket

Straight DIP Home appliances Micro-Fit Socket,Home appliances Straight DIP Micro-Fit Socket,Straight DIP Home appliances Socket Micro-Fit,DIP Home appliances Socket Straight Micro-Fit,Home appliances Socket Straight DIP Micro-Fit
Availability:
  • WBT-6002-2XX-4GXB-XR

  • winconn

Product Description

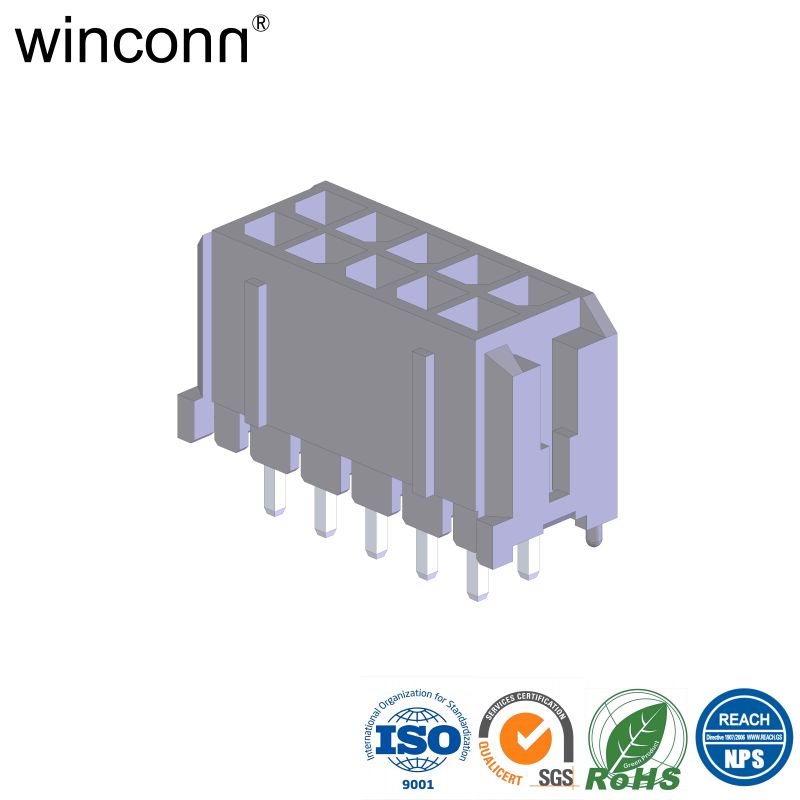

Micro Fit Pitch3.00mm Double Row Straight DIP Type

P/N: WBT-6002-2XX-4GXB-XR


1.MATERIAL:
HOUSING:HIGH TEMPERATURE THERMOPLASTIC,UL94V-0
CONTACTS:COPPER ALLOY
2.PLATING:
CONTACT:100U"MIN TIN PLATED OVER Ni
3.ELECTRICAL:
CONTACT RESISTANCE:20 MILLIOHMS
INSULATION RESISTANCE:1000 MEGOHMS
DIELECTRIC WITHSTANDING VOLTAGE:1000V AC
VOLTAGE RATING:250V AC/DC

CURRENT RATING:


4.ENVIRONMENTAL:
OPERATING TEMPERATURE:-40℃ TO +105℃


WBT-6001-2XX-4GXB-XR_00
