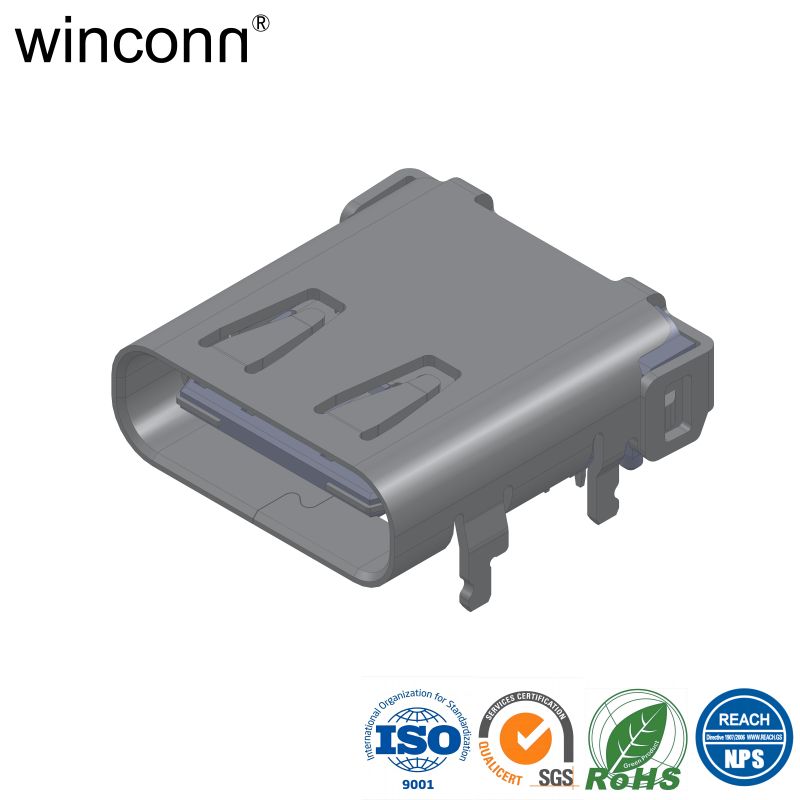

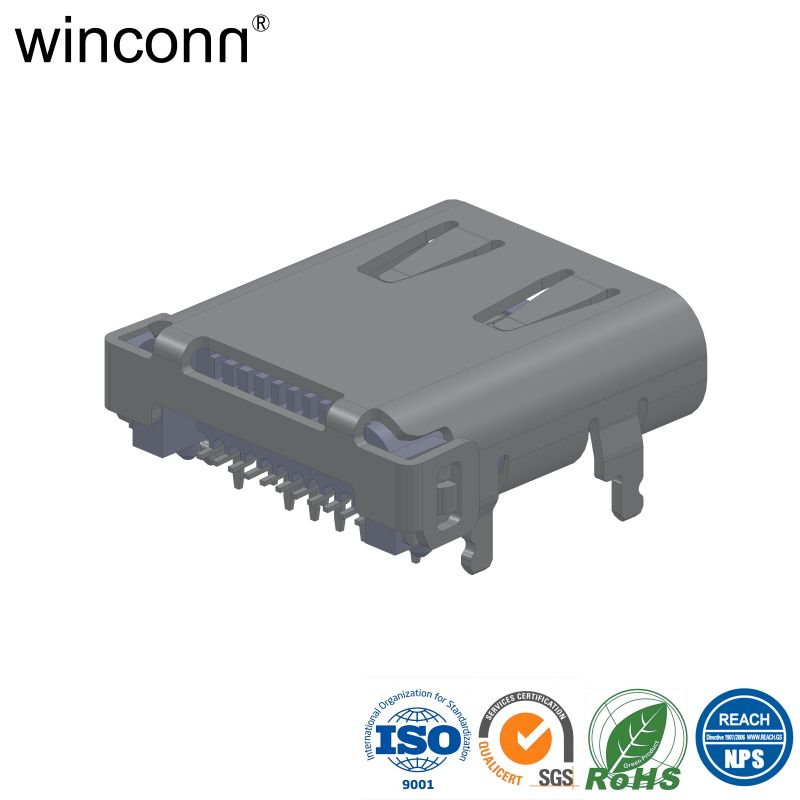

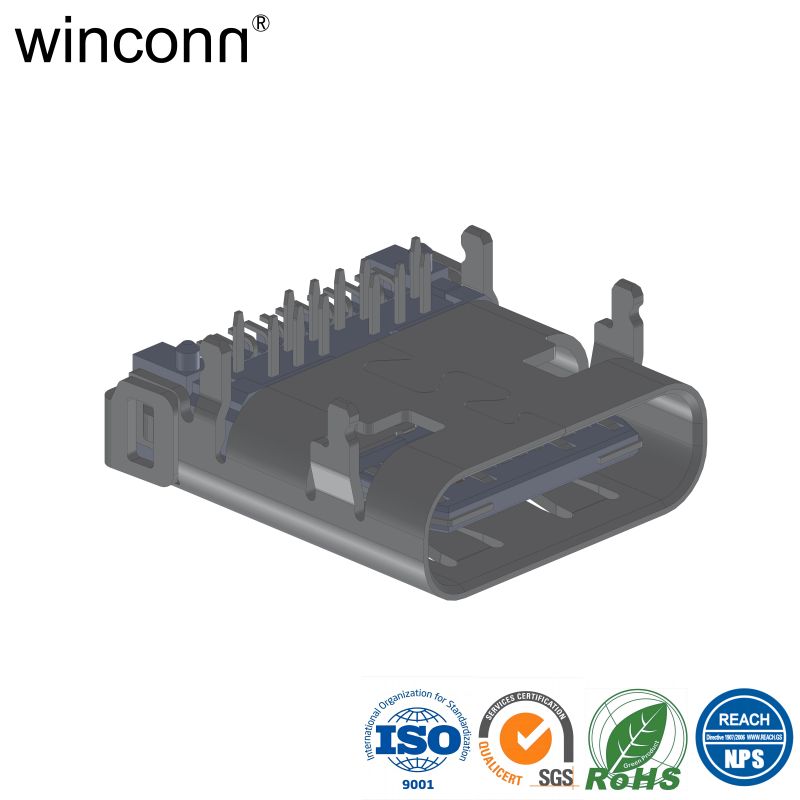

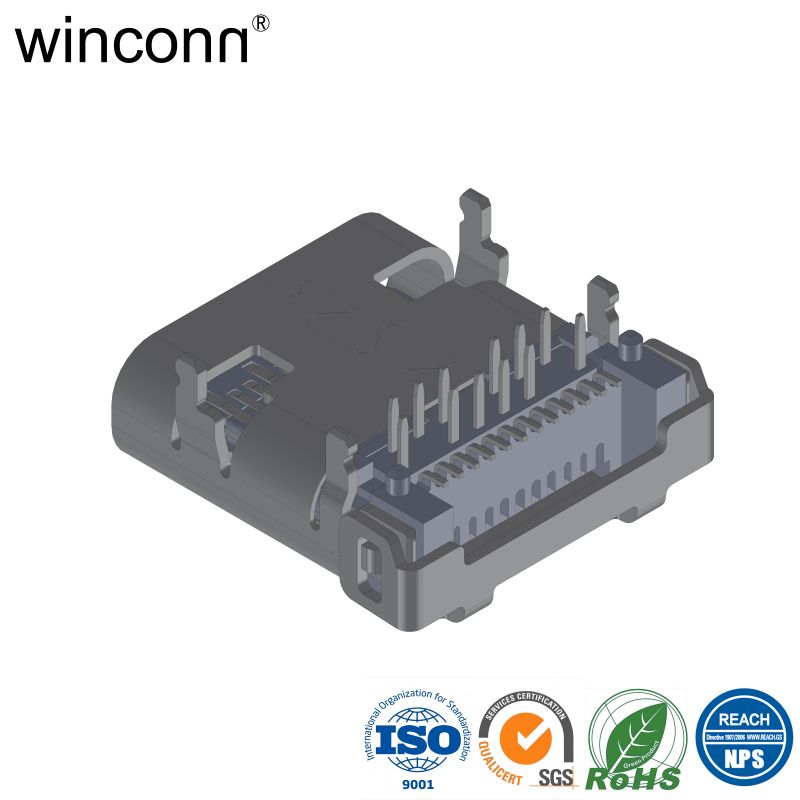

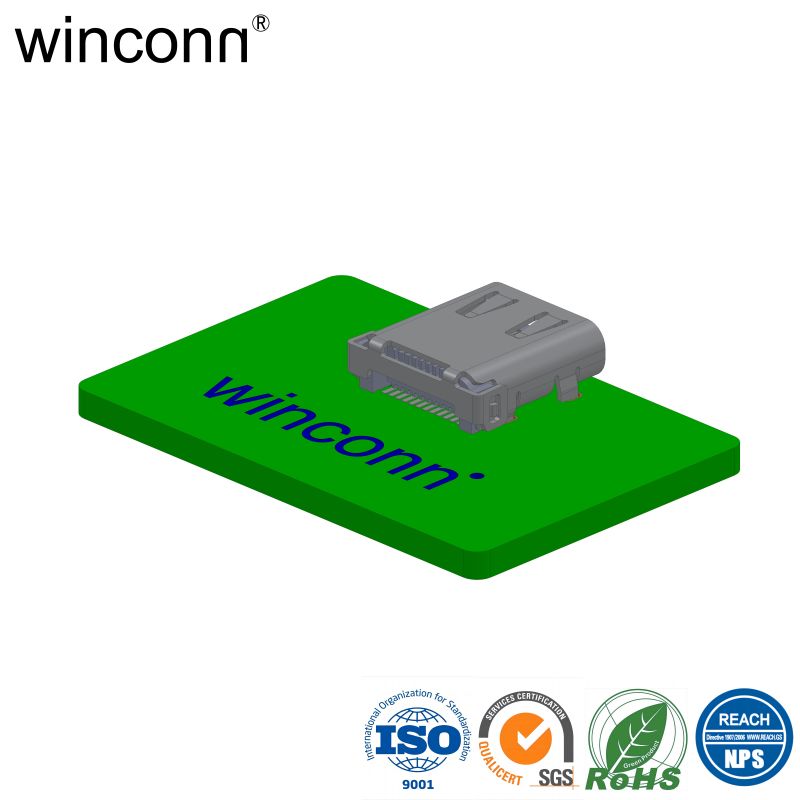

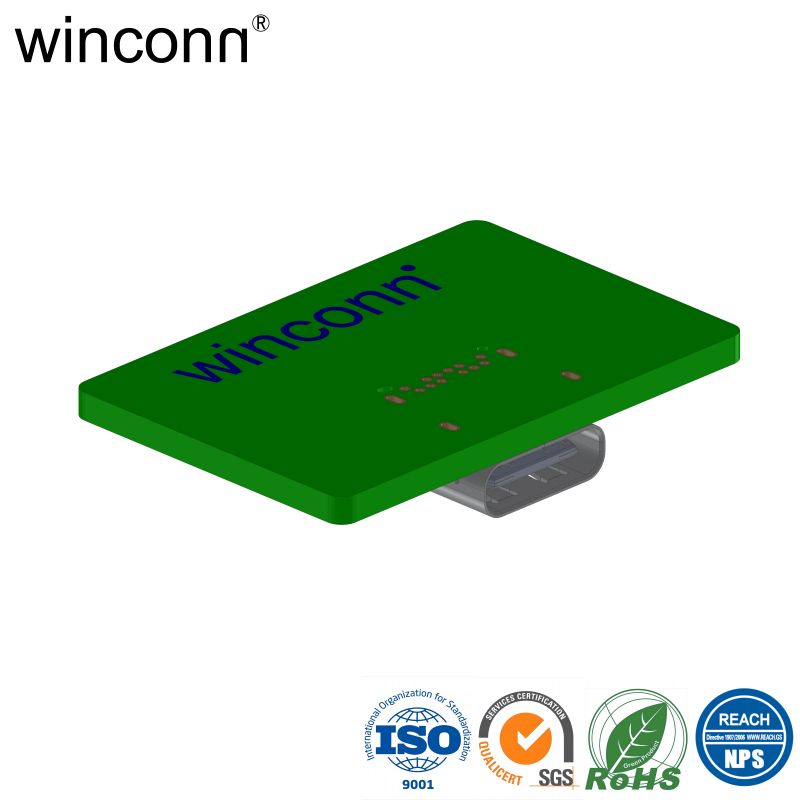

USB Type C 3.1 Receptacle Socket Terminal Power Connector

USB Type C 3.1 Receptacle Socket Terminal Power Connector,Type C USB 3.1 Receptacle Socket Terminal Power Connector,USB 3.1 Type C Receptacle Socket Terminal Power Connector,Type C Receptacle Socket Terminal Power USB 3.1 Connector,Receptacle Socket Terminal Power USB 3.1 Type C Connector
Availability:
  • UC-3008-5GNB-RR

  • winconn

Product Description

SPECIFICATIONS:

1.MECHANICAL :

1.1 INSERTION FORCE :5N~20N

1.2 WITHDRAWAL FORCE :8N~20N

AFTER 10,000 CYCLES MATING: 6N~20N.


2.ELECTRICAL:

2.1 APPLIED CURRENT (REQUIREMENT)

2.1.1 VBUS PIN: 5A

2.1.2 GND PIN: 6.25A

2.1.3 VCONN PIN: 1.25A

2.1.4 OTHER PINS: 0.25A

2.3 WITHSTANDING VOLTAGE: 100 VAC FOR 1 MINUTE.

2.4 INSULATION RESISTANCE: 100 MEGAOHMS MIN.

2.5 CONTACT RESISTANCE: 40 MILLIOHMS MAX.


3. ENVIRONMENTAL :

3.1 OPERATING TEMPERATURE:-25°C TO +85°C


4.THIS CONNECTORI ALL PASS UNIVERSAL SERIAL BUS TYPE-C CONNECTOR SEPCIFICATION.
