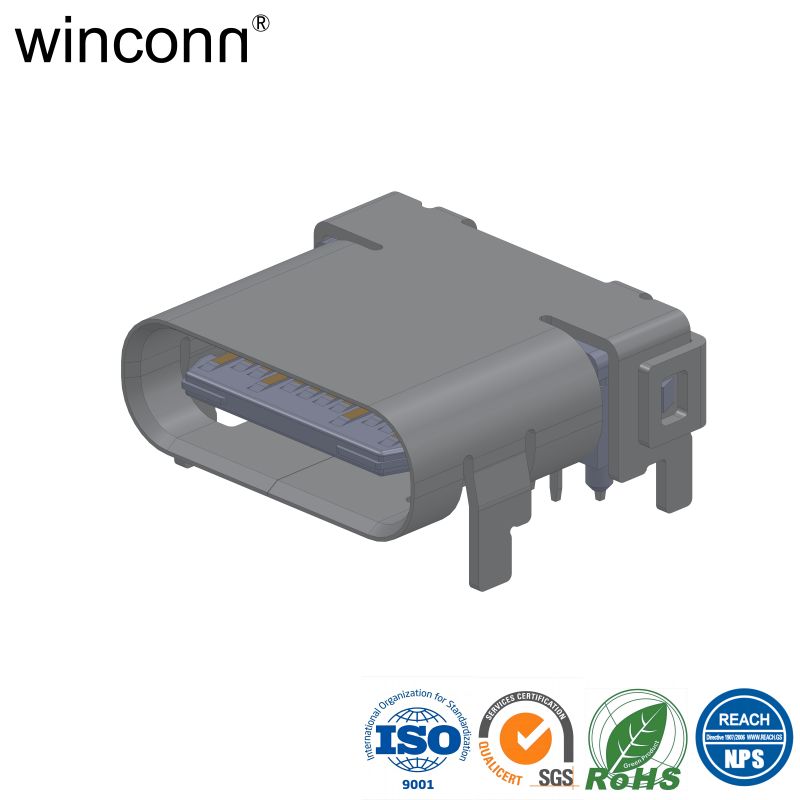

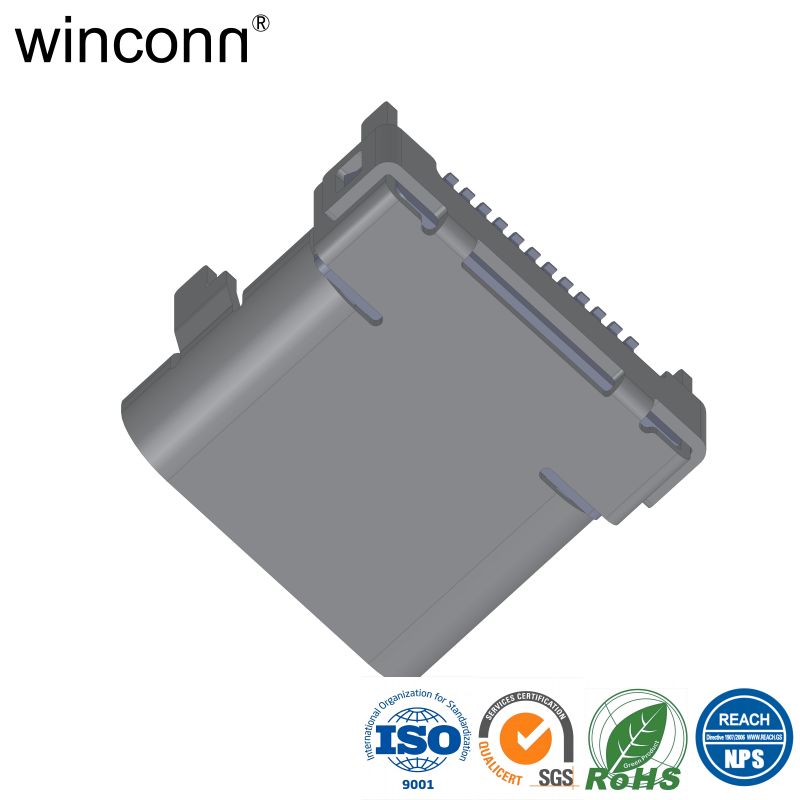

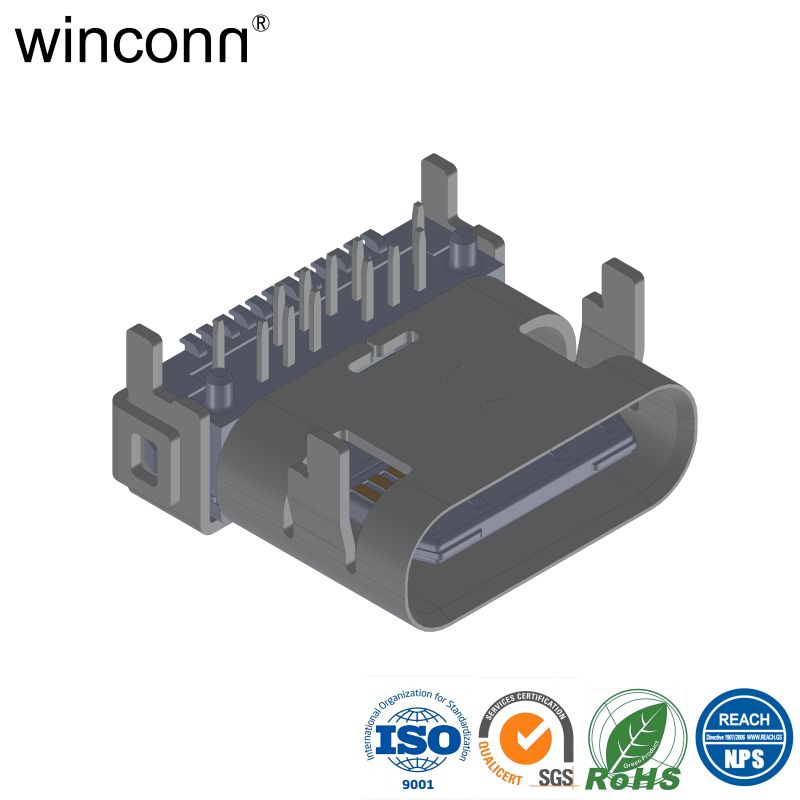

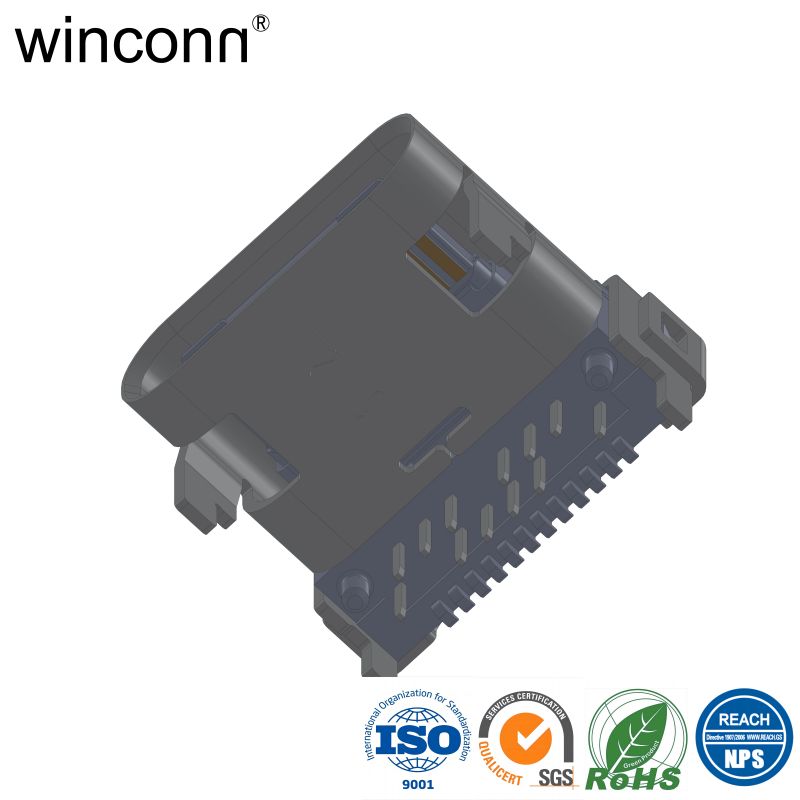

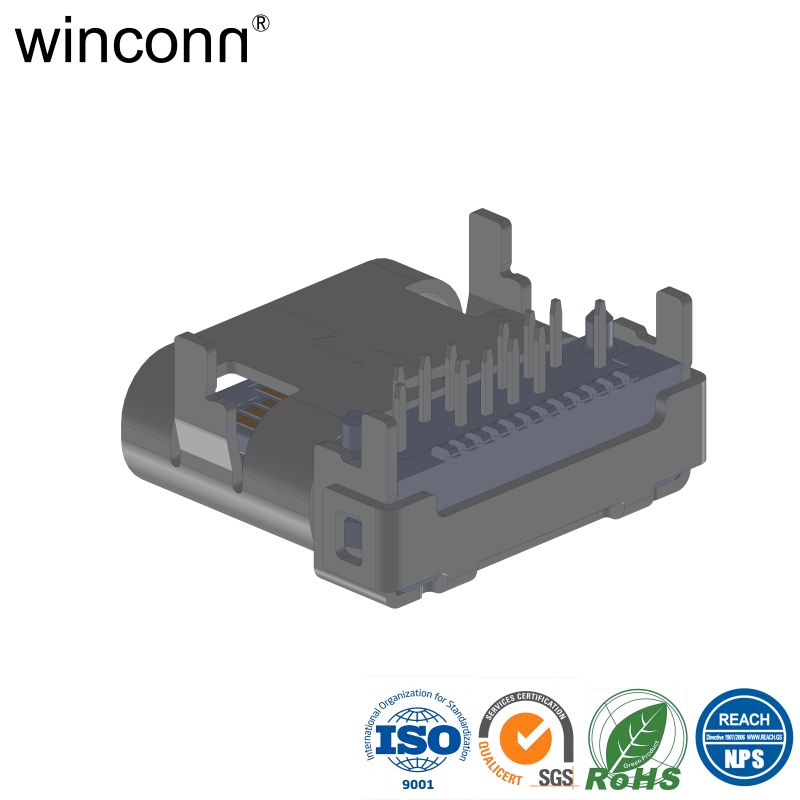

micro USB through hole USB socket

micro USB through hole USB socket,through hole micro USB USB socket,micro USB USB socket through hole,micro USB USB through hole socket,USB through hole micro USB socket
Availability:
  • UC-3001-55NB-RR

  • winconn

Product Description

SPECIFICATIONS:

1.MECHANICAL :

1.1 INSERTION FORCE :5N~20N

1.2 WITHDRAWAL FORCE :8N~20N

AFTER 10,000 CYCLES MATING: 6N~20N.


2.ELECTRICAL:

2.1 APPLIED CURRENT (REQUIREMENT)

2.1.1 VBUS PIN: 5A

2.1.2 GND PIN: 6.25A

2.1.3 VCONN PIN: 1.25A

2.1.4 OTHER PINS: 0.25A

2.3 WITHSTANDING VOLTAGE: 100 VAC FOR 1 MINUTE.

2.4 INSULATION RESISTANCE: 100 MEGAOHMS MIN.

2.5 CONTACT RESISTANCE: 40 MILLIOHMS MAX.


3. ENVIRONMENTAL :

3.1 OPERATING TEMPERATURE:-25°C TO +85°C


4.THIS CONNECTORI ALL PASS UNIVERSAL SERIAL BUS TYPE-C CONNECTOR SEPCIFICATION.


UC-3001-55NB-RR_00

UC-3001-55NB-RR_01
