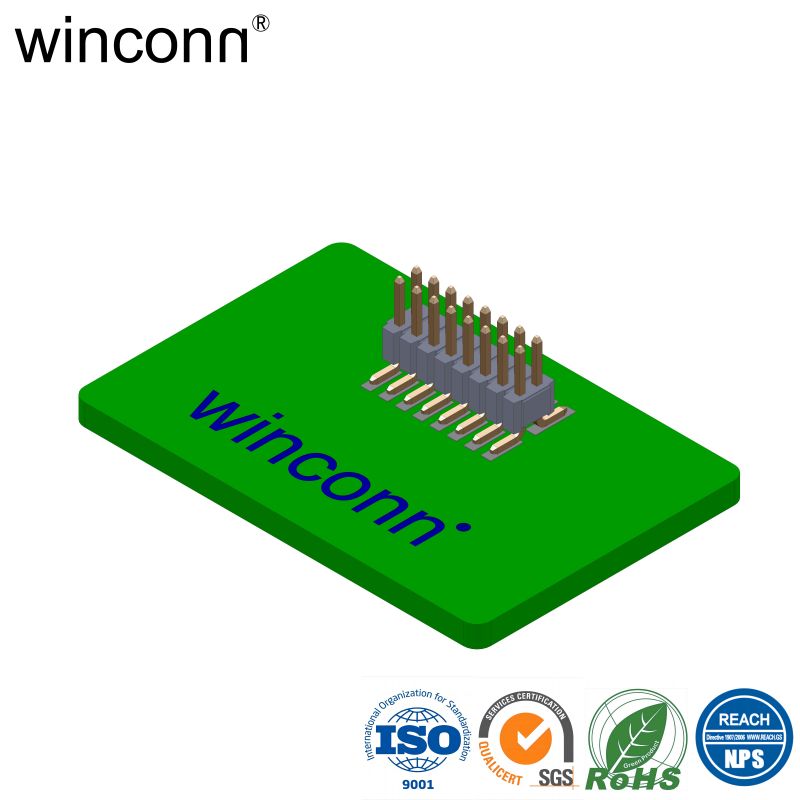

16 pins Mounting Flange Pin Header connector

P/N: WPH-6001-2XX-2GXB-XR
Packing: Bag/Tray/Tape Reel
Delivery time: 10~20 Days
RoHS/HF/GP Compliant
Availability:
  • WPH-6001-2XX-2GXB-XR

  • winconn

Product Description

PIN HEADER 1.27mm DOUBLE ROW VERTICAL SMT TYPE H=2.0mm

P/N: WPH-6001-2XX-2GXB-XR

1. MATERIAL:
  HOUSING: THERMOPLASTIC,HIGH TEMP, 30% G/F
               UL 94V-0, COLOR:BLACK.
  CONTACT: BRASS.
2. FINISH:
  CONTACT: AU PLATING OVER NI(50m" MIN.)
3.ELECTRICAL:
  CONTACT RESISTANCE: 20mΩ Max.
   INSULATION RESISTANCE: 1000MΩ Min.
  DIELECTRIC WITHSTANDING VOLTAGE: 500V AC
  CURRENT RATING: 1.0A
4.ENVIRONMENTAL:
  OPERATING TEMPERATURE: -25°C TO +85°C
  COMPLIANCE: RoHS or HF


WPH-6001-2XX-2GXB-XR

2D Drawing
