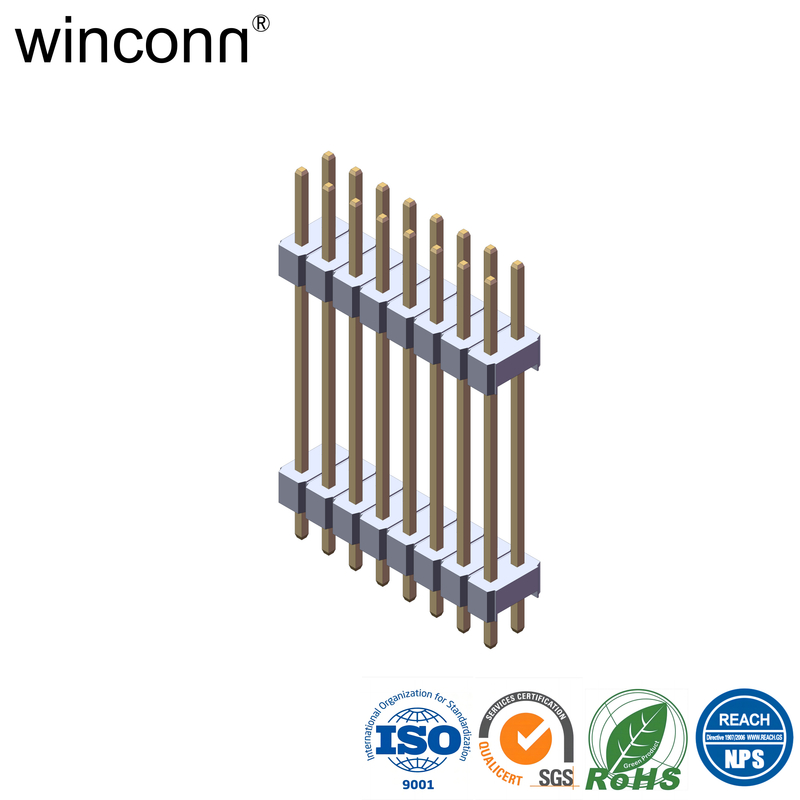

alternate wcon 1125-2210G0S300C001 pin header 2.54 double housing connector

P/N: WPH-8D01-210-4G1B-BR
Packing: Bag/Tray/Tape Reel
Delivery time: 10~20 Days
RoHS/HF/GP Compliant
Availability:
  • WPH-8D01-210-4G1B-BR

  • winconn

Product Description

Welcome to our selection of high-quality PCB connectors, perfect for industrial control systems and desktop computer components. This Gold Flash Control Board features a 2.54mm 0.393inch gold flash plated right angle DIP SMT LED light pin header connector socket terminal. The male header connector is ideal for electric control panels, offering a reliable and secure connection. With its gold-plated pins, this industrial control board ensures excellent conductivity and durability. Upgrade your electronic projects with this premium pin header connector, designed for seamless integration and long-lasting performance. Shop now and experience the superior quality and precision of our industrial-grade connectors.

P/N: WPH-8D01-210-4G1B-BR

WPH-8D01-2XX-4GXB-XR 20250224_00

1. MATERIAL:

HOUSING: THERMOPLASTIC,HIGH TEMP, 30% G/F

UL 94V-0, COLOR:BLACK.

CONTACT: BRASS.


2. FINISH:

CONTACT: AU PLATING OVER NI(50m" MIN.)

3.ELECTRICAL:


CONTACT RESISTANCE: 20mΩ Max.

INSULATION RESISTANCE: 1000MΩ Min.

DIELECTRIC WITHSTANDING VOLTAGE: 500V AC

CURRENT RATING: 3A


4.ENVIRONMENTAL:

OPERATING TEMPERATURE: -25°C TO +85°C

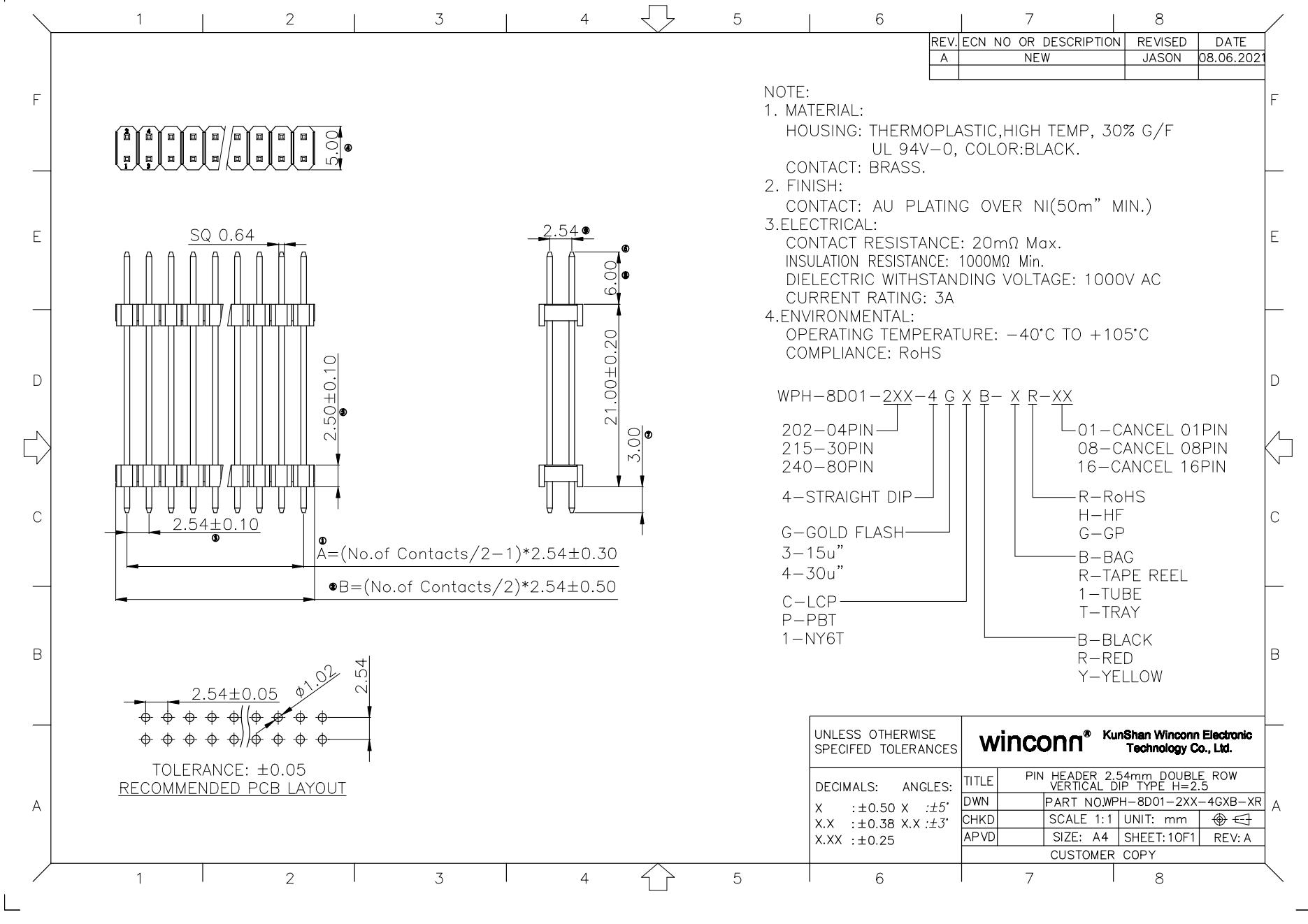

2D Drawing
