Horizontal DIP Supplied with M80-0400005 Contacts loose Female Header Terminal

P/N: WFH-8008-2XX-4GXB-XR
Packing: Bag/Tray/Tape Reel
Delivery time: 10~20 Days
RoHS/HF/GP Compliant
Availability:
Inquire Add to Basket

  • WFH-8008-2XX-4GXB-XR

  • winconn

Product Description

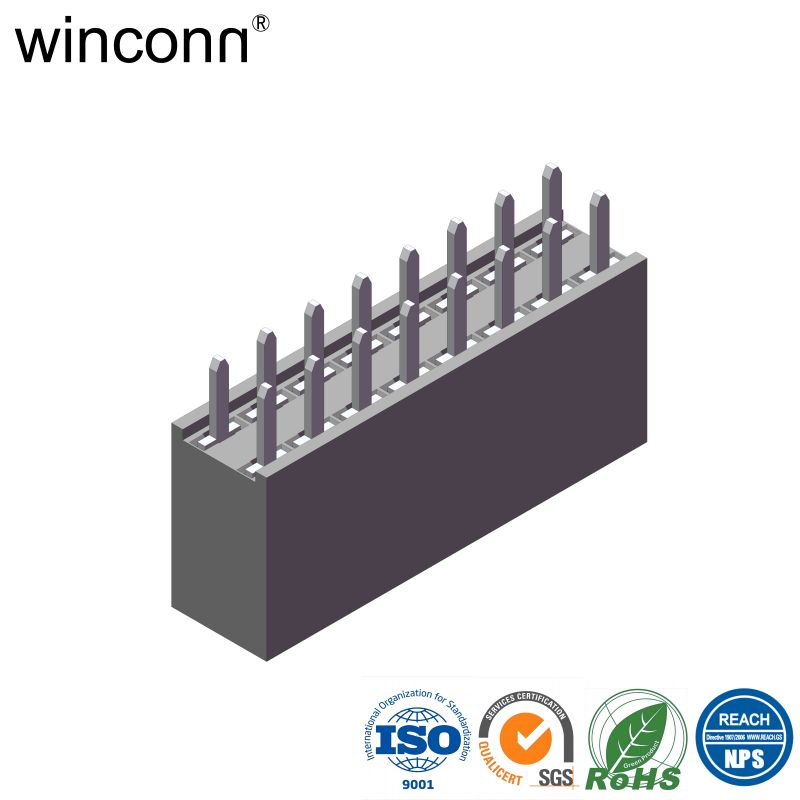

FEMALE HEADER 2.54mm DOUBLE ROW STRAIGHT DIP TYPE H=8.5mm

P/N: WFH-8008-2XX-4GXB-XR

NOTE:

1. MATERIAL:

HOUSING: THERMOPLASTIC,HIGH TEMP, 30% G/F

UL 94V-0, COLOR:BLACK.

CONTACT: PHOSPHOR BRONZE OR BRASS.


2. FINISH:

CONTACT: AU PLATING OVER NI(50m" MIN.)


3.ELECTRICAL:

CONTACT RESISTANCE: 20mΩ Max.

INSULATION RESISTANCE: 1000MΩ Min.

DIELECTRIC WITHSTANDING VOLTAGE: 500V AC

CURRENT RATING: 3A


4.ENVIRONMENTAL:

OPERATING TEMPERATURE: -25°C TO +85°C


WFH-8008-2XX-4GXB-XR_00
