SSD Solder Lug Straight DIP Hard disk drive Slimline Serial ATA

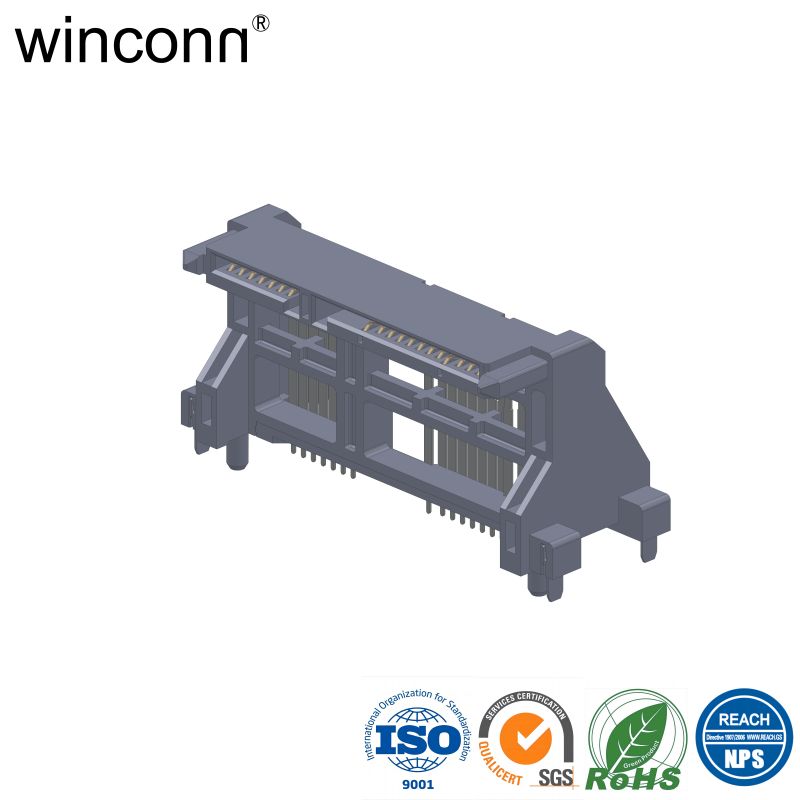

SATA 22P RECEPTACLE RIGHT ANGLE DIP TYPE H=20.75mm

P/N: SA7002-X0XX

1.Material:

HOUSING: THERMOPLASTIC,HIGH TEMP, 30% G/F

UL 94V-0, COLOR:BLACK.

CONTACT: PHOSPHOR BRONZE.

BOARDLOCK :BRASS.

2.FINISH:

CONTACT: AU PLATING ON CONTACT AREA SN(100m" MIN. ) PLATING

ON SOLDER TAILS,NI(50m" MIN.) UNDERPLATING OVER ALL.

BOARDLOCKS: SN (100m" MIN.) OVER NI(50m" MIN.)

UNDERPLATING OVER ALL.

3.ELECTRICAL:

CONTACT RESISTANCE: 30 mΩ MAX.

INSULATION RESISTANCE: 1000MΩ Min.

DIELECTRIC WITHSTANDING VOLTAGE: 500V AC

CURRENT RATING: 1.5A

VOLAGE RATING: 12V AC

4.MECHANICAL:

INSERTION FORCE: 45N Max

WITHDRAWAL FORCE: 10N Min

DURABILITY: 500 CYCLES

5.ENVIRONMENTAL:

OPERATING TEMPERATURE: -25°C TO +85°C
