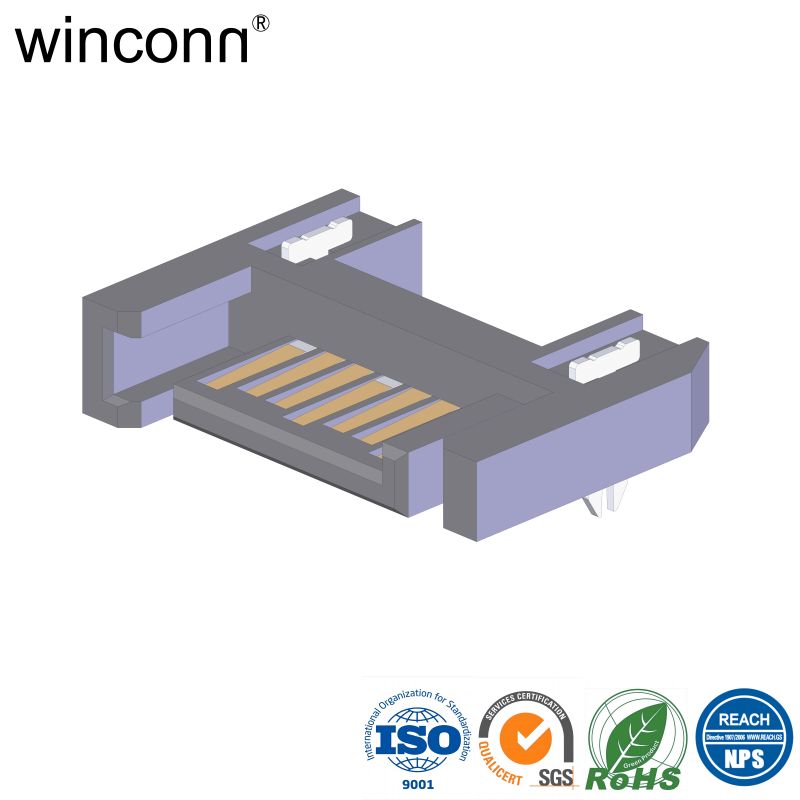

SATA 7P PLUG RIGHT ANGLE SMT TYPE

P/N: SA3003-X0XX

Computing horizontal surface mount LCP Easy actuation Slimline Serial ATA

horizontal surface mount LCP Easy actuation Computing Slimline Serial ATA

surface mount LCP Easy actuation Computing horizontal Slimline Serial ATA

LCP Easy actuation Computing horizontal surface mount Slimline Serial ATA

Easy actuation Computing horizontal surface mount LCP Slimline Serial ATA

actuation Computing horizontal surface mount LCP Easy Slimline Serial ATA

Slimline Serial ATA Computing horizontal surface mount LCP Easy actuation

Slimline Serial ATA horizontal surface mount LCP Easy actuation Computing

Slimline Serial ATA surface mount LCP Easy actuation Computing horizontal

Slimline Serial ATA LCP Easy actuation Computing horizontal surface mount

1.Material:
 HOUSING: THERMOPLASTIC,HIGH TEMP, 30% G/F
         UL 94V-0, COLOR:BLACK.
 CONTACT: BRASS.
 BOARDLOCK :BRASS.
2.FINISH:
 CONTACT:  AU PLATING ON CONTACT AREA SN(100m" MIN. ) PLATING
          ON SOLDER TAILS,NI(50m" MIN.) UNDERPLATING OVER ALL.
 BOARDLOCKS: SN (100m" MIN.) OVER NI(50m" MIN.)
            UNDERPLATING OVER ALL.
3.ELECTRICAL:
  CONTACT RESISTANCE: 30 mΩ MAX.
  INSULATION RESISTANCE: 1000MΩ Min.
  DIELECTRIC WITHSTANDING VOLTAGE: 500V AC
  CURRENT RATING: 1.5A
  VOLAGE RATING: 12V AC
4.MECHANICAL:
 INSERTION FORCE: 45N Max
 WITHDRAWAL FORCE: 10N Min
 DURABILITY: 500 CYCLES
5.ENVIRONMENTAL:
  OPERATING TEMPERATURE: -25°C TO +85°C
