6 Gbps Top Mount Type Right Angle SMT Mini SATA connector

P/N: SA3002-X0XX
Packing: Bag/Tray/Tape Reel
Delivery time: 10~20 Days
RoHS/HF/GP Compliant
Availability:
  • SA3002-X0XX

  • winconn

Product Description

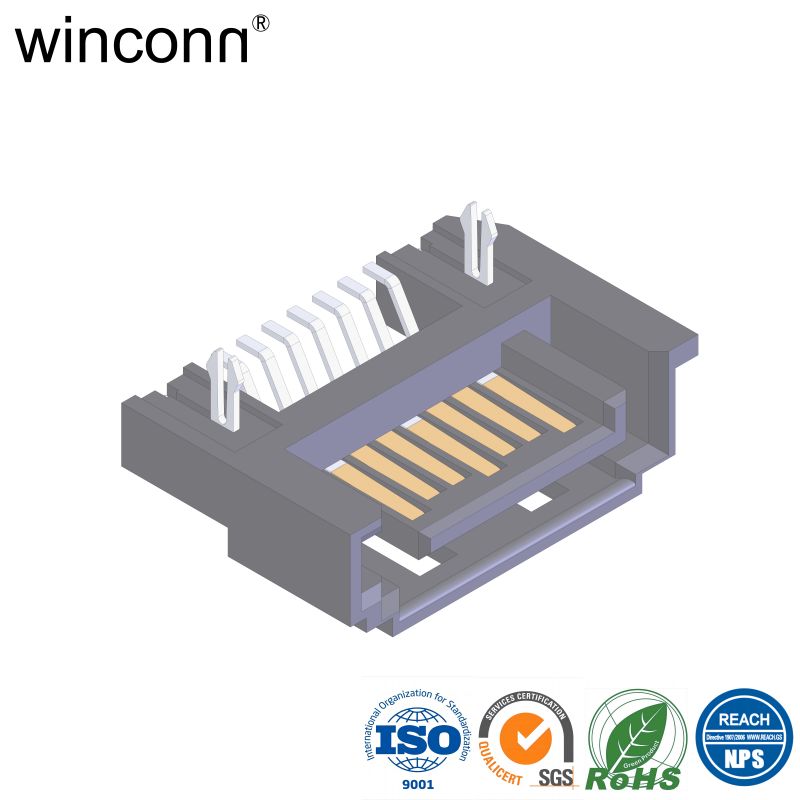

SATA 7P PLUG RIGHT ANGLE SMT TYPE

P/N: SA3002-X0XX


1.Material:
 HOUSING: THERMOPLASTIC,HIGH TEMP, 30% G/F
         UL 94V-0, COLOR:BLACK.
 CONTACT: BRASS.
 BOARDLOCK :BRASS.
2.FINISH:
 CONTACT:  AU PLATING ON CONTACT AREA SN(100m" MIN. ) PLATING
          ON SOLDER TAILS,NI(50m" MIN.) UNDERPLATING OVER ALL.
 BOARDLOCKS: SN (100m" MIN.) OVER NI(50m" MIN.)
            UNDERPLATING OVER ALL.
3.ELECTRICAL:
  CONTACT RESISTANCE: 30 mΩ MAX.
  INSULATION RESISTANCE: 1000MΩ Min.
  DIELECTRIC WITHSTANDING VOLTAGE: 500V AC
  CURRENT RATING: 1.5A
  VOLAGE RATING: 12V AC
4.MECHANICAL:
 INSERTION FORCE: 45N Max
 WITHDRAWAL FORCE: 10N Min
 DURABILITY: 500 CYCLES
5.ENVIRONMENTAL:
  OPERATING TEMPERATURE: -25°C TO +85°C


SA3002-X0XX_00
