Pin Header Kinked pin

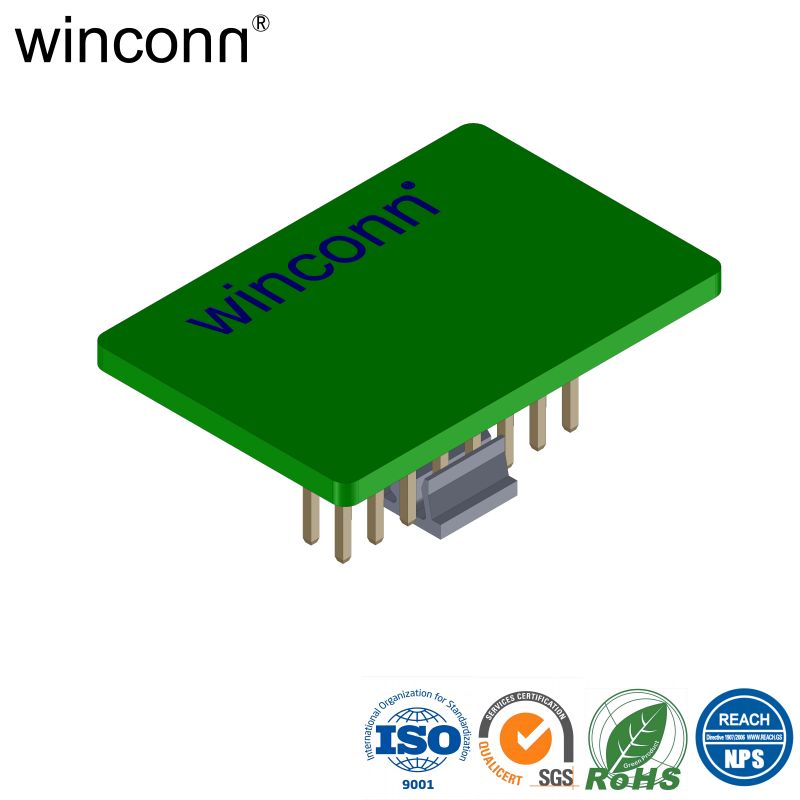

Pin Header Pitch=2.54mm Double Row Vertical SMT Type

P/N: WPH-8019-2XX-2GXB-XR

Pin Header Kinked pin

Kinked pin 2.54mm Pin Header

Kinked pin 2.00mm Pin Header

Kinked pin 1.27mm Pin Header

Kinked pin 1.00mm Pin Header

Kinked pin 0.80mm Pin Header

Kinked pin 1.50mm Pin Header

Kinked pin 3.96mm Pin Header

Kinked pin 5.08mm Pin Header

1. MATERIAL:

HOUSING: THERMOPLASTIC,HIGH TEMP, 30% G/F

UL 94V-0, COLOR:BLACK.

CONTACT: BRASS.

2. FINISH:

CONTACT: AU PLATING OVER NI(50m" MIN.)

3.ELECTRICAL:

CONTACT RESISTANCE: 20mΩ Max.

INSULATION RESISTANCE: 1000MΩ Min.

DIELECTRIC WITHSTANDING VOLTAGE: 500V AC

CURRENT RATING: 3A

4.ENVIRONMENTAL:

OPERATING TEMPERATURE: -25°C TO +85°C
