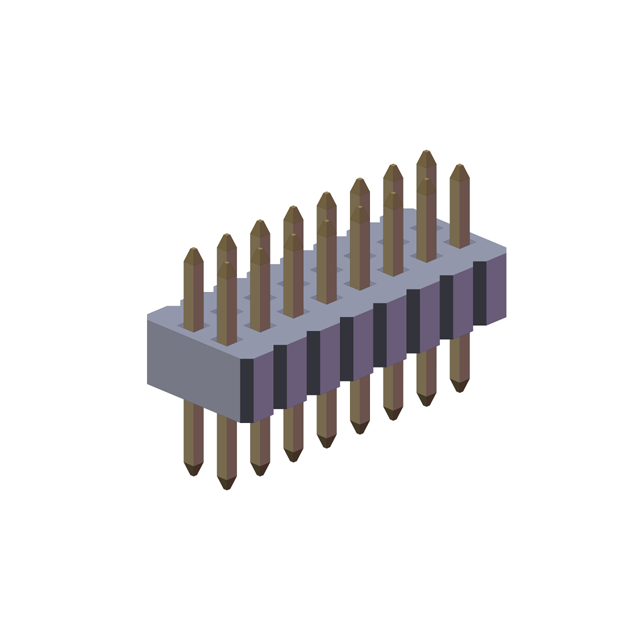

Pin Header 0.0393" inch 1.00mm right angle DIP

Low Pitch Pin Header
P/N: WPH-5001-2XX-4GXB-XR
Packing: Bag/Tray/Tape Reel
Delivery time: 10~20 Days
RoHS/HF/GP Compliant
Availability:
  • WPH-5001-2XX-4GXB-XR

  • winconn

Product Description

Pin Header Pitch=1.00mm Double Row Straight DIP Type

P/N: WPH-5001-2XX-4GXB-XR


Low Pitch pin header

0.393"inch pin header

In response to the smaller, thinner and lighter products, we launched 0.393" inch (1.00mm) pitch pin header , which allows customers to design smaller PCBs, reduce space and win the market, this product is used with 0.393" inch (1.00mm) Female Header, which can connect two PCBs.


1. MATERIAL:

HOUSING: THERMOPLASTIC,HIGH TEMP, 30% G/F

UL 94V-0, COLOR:BLACK.

CONTACT: BRASS.


2. FINISH:

CONTACT: AU PLATING OVER NI(50m" MIN.)

3.ELECTRICAL:


CONTACT RESISTANCE: 20mΩ Max.

INSULATION RESISTANCE: 1000MΩ Min.

DIELECTRIC WITHSTANDING VOLTAGE: 500V AC

CURRENT RATING: 3A


4.ENVIRONMENTAL:

OPERATING TEMPERATURE: -25°C TO +85°C


WPH-5001-2XX-4GXB-XR_00

2D Drawing
