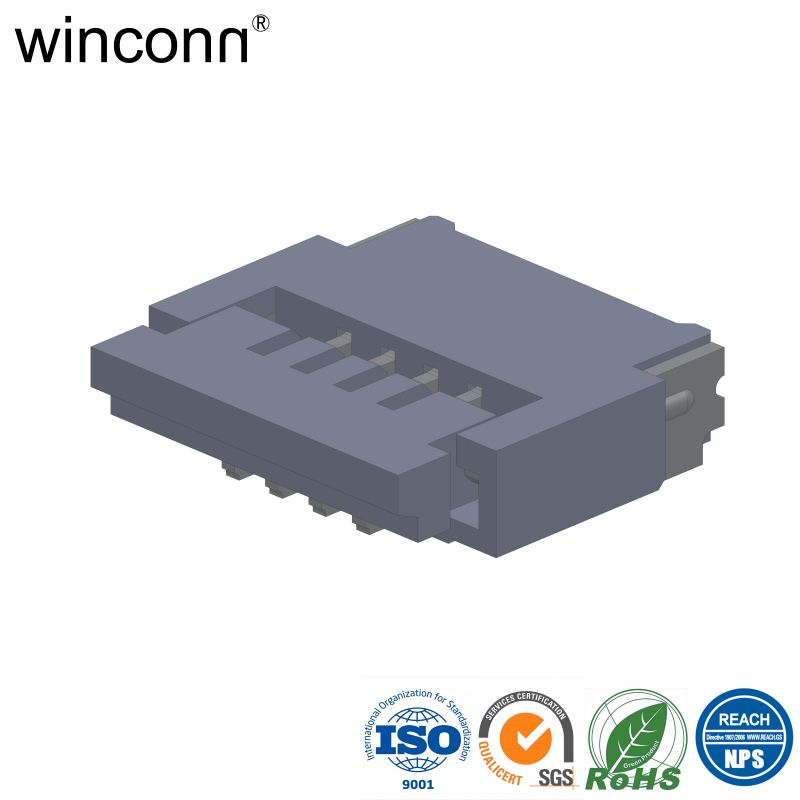

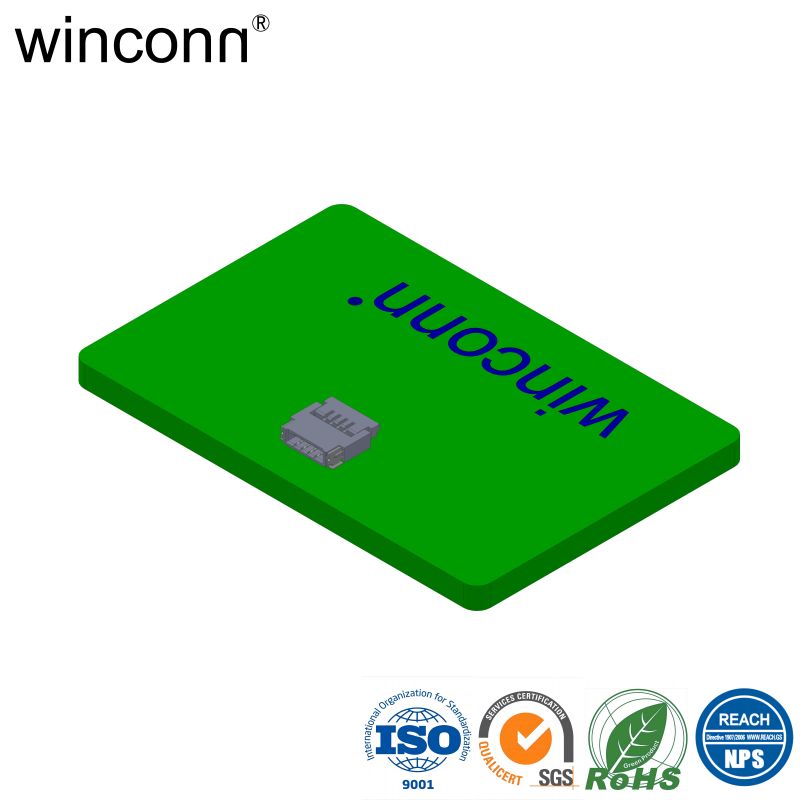

horizontal surface mount Polyester Film 0.019"(0.5mm) FFC connector

P/N: WFP243A-004G1AM
Packing: Bag/Tray/Tape Reel
Delivery time: 10~20 Days
RoHS/HF/GP Compliant
Availability:
  • WFP243A-004G1AM

  • winconn

Product Description

FPC 0.50mm H1.50 W/cover R/A SMT Type

P/N: WFP243A-004G1AM



Product Parameters

1.MATERIAL:

HOUSING: HIGH TEMPERATURE THERMOPLASTIC,UL 94V-0,Nature

COVER: HIGH TEMPERATURE THERMOPLASTIC,UL 94V-0,Black

CONTACT: COPPER ALLOY.

PEG: COPPER ALLOY.


2.FINISH:

CONTACT: Au plating on contact area,Sn(100u" Min.) plating on solder tail,

Ni(50u'' Min.) underplating overall

PEG: Tin plated on Ni overall.


3.ELECTRICAL:

CURRENT RATING: 0.5A AC/DC.

VOLTAGE RATING: 50V AC/DC.


4.ENVIRONMENTAL:

OPERATING TEMPERATURE: -25°C TO +85°C


WFP243X-0XXG1AM_00

WFP243X-0XXG1AM_01

WFP243X-0XXG1AM_02





2D Drawing
