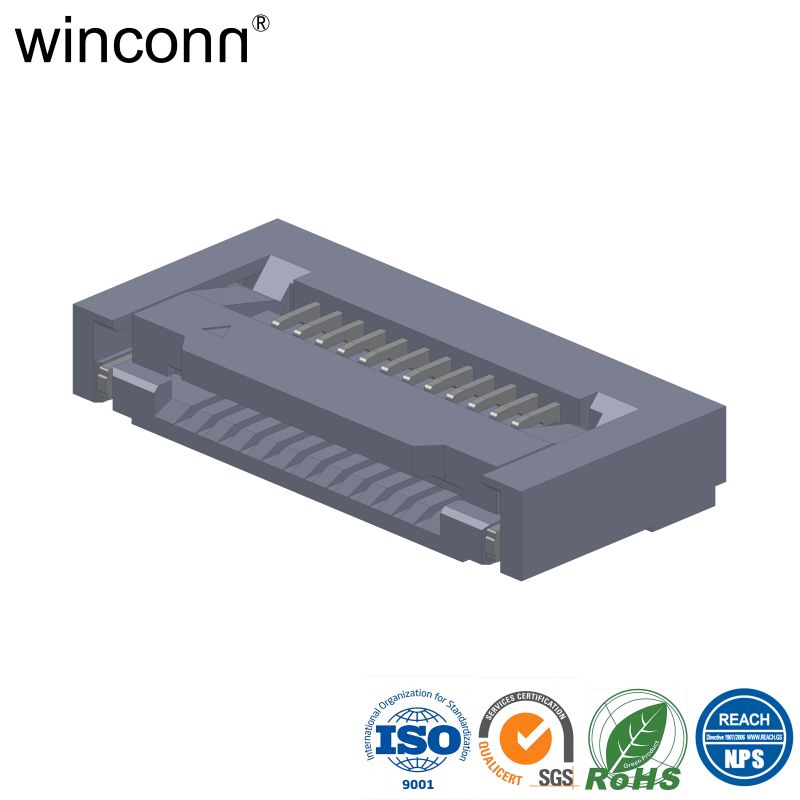

Front Flip Mounting Flange Comfort FFC connector

P/N: WFP260H-0XXG10M
Packing: Bag/Tray/Tape Reel
Delivery time: 10~20 Days
RoHS/HF/GP Compliant
Availability:
  • WFP260H-0XXG10M

  • winconn

Product Description

FPC 0.50mm H1.80 Non Zif Right Angle SMT Type

P/N: WFP260H-0XXG10M



Product Parameters

1.MATERIAL:

HOUSING: HIGH TEMPERATURE THERMOPLASTIC,UL 94V-0,Nature

COVER: HIGH TEMPERATURE THERMOPLASTIC,UL 94V-0,Black

CONTACT: COPPER ALLOY.

PEG: COPPER ALLOY.


2.FINISH:

CONTACT: Au plating on contact area,Sn(100u" Min.) plating on solder tail,

Ni(50u'' Min.) underplating overall

PEG: Tin plated on Ni overall.


3.ELECTRICAL:

CURRENT RATING: 0.5A AC/DC.

VOLTAGE RATING: 50V AC/DC.


4.ENVIRONMENTAL:

OPERATING TEMPERATURE: -25°C TO +85°C


WFP260H-0XXG10M_00

WFP260H-0XXG10M_01









2D Drawing
