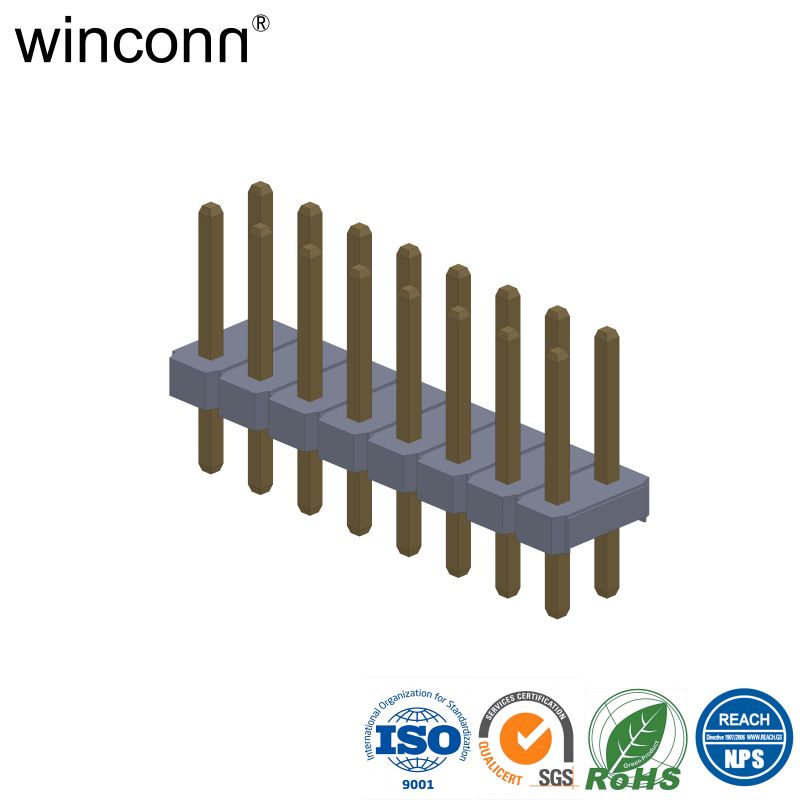

Straight DIP Wire to Wire Pin Header Terminal

Straight DIP Wire to Wire Pin Header Terminal,DIP Wire to Wire Straight Pin Header Terminal,Wire to Wire Straight DIP Pin Header Terminal,Straight DIP Wire to Wire Terminal Pin Header,DIP Wire to Wire Terminal Straight Pin Header
Availability:
  • WPH-8003-2XX-4GXB-XR

  • winconn

Product Description

Pin Header Pitch=2.54mm Double Row Straight DIP Type

P/N: WPH-8003-2XX-4GXB-XR


1. MATERIAL:

HOUSING: THERMOPLASTIC,HIGH TEMP, 30% G/F

UL 94V-0, COLOR:BLACK.

CONTACT: BRASS.


2. FINISH:

CONTACT: AU PLATING OVER NI(50m" MIN.)

3.ELECTRICAL:


CONTACT RESISTANCE: 20mΩ Max.

INSULATION RESISTANCE: 1000MΩ Min.

DIELECTRIC WITHSTANDING VOLTAGE: 500V AC

CURRENT RATING: 3A


4.ENVIRONMENTAL:

OPERATING TEMPERATURE: -25°C TO +85°C


WPH-8003-2XX-4GXB-XR
