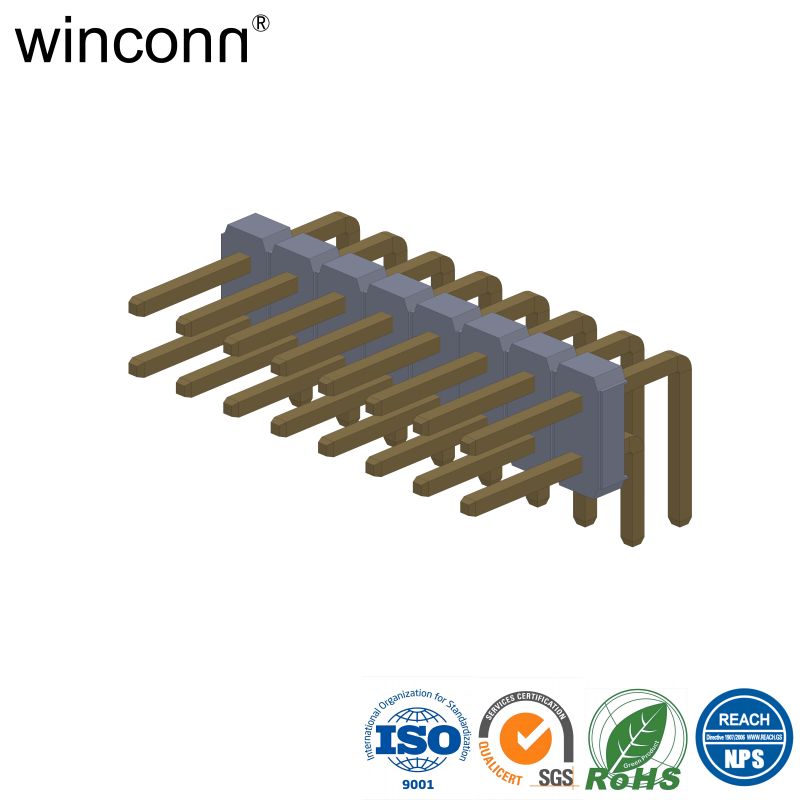

Molex Alternative Materials Kinked pin Pin Header connector

Pin Header Pitch=2.54mm Double Row Right Angle DIP Type

P/N: WPH-8003-2XX-3GXB-XR

1. MATERIAL:

HOUSING: THERMOPLASTIC,HIGH TEMP, 30% G/F

UL 94V-0, COLOR:BLACK.

CONTACT: BRASS.

2. FINISH:

CONTACT: AU PLATING OVER NI(50m" MIN.)

3.ELECTRICAL:

CONTACT RESISTANCE: 20mΩ Max.

INSULATION RESISTANCE: 1000MΩ Min.

DIELECTRIC WITHSTANDING VOLTAGE: 500V AC

CURRENT RATING: 3A

4.ENVIRONMENTAL:

OPERATING TEMPERATURE: -25°C TO +85°C
