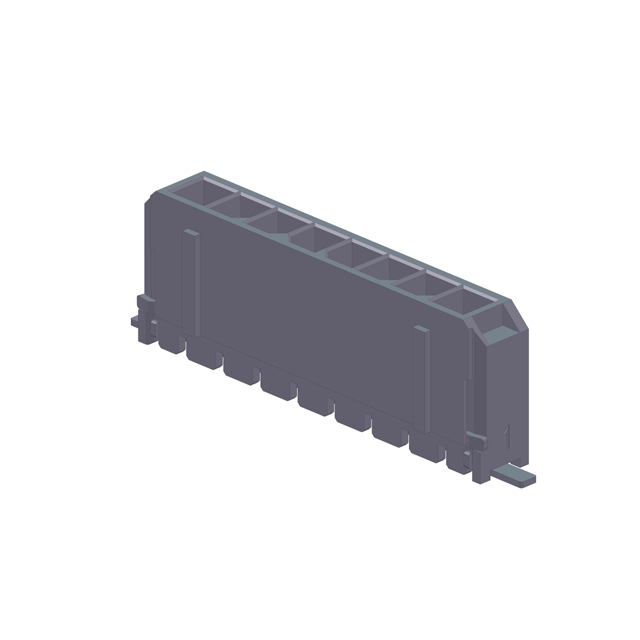

Vertical SMT Printers BTX Socket

P/N: WBT-6001-1XX-2GXB-XR
Packing: Bag/Tray/Tape Reel
Delivery time: 10~20 Days
RoHS/HF/GP Compliant
Availability:
  • WBT-6001-1XX-2GXB-XR

  • winconn

Product Description

Micro Fit Pitch 3.00mm Single Row Vertical SMT Type

P/N: WBT-6001-1XX-2GXB-XR


1.MATERIAL:
HOUSING:HIGH TEMPERATURE THERMOPLASTIC,UL94V-0
CONTACTS:COPPER ALLOY
2.PLATING:
CONTACT:100U"MIN TIN PLATED OVER Ni
3.ELECTRICAL:
CONTACT RESISTANCE:20 MILLIOHMS
INSULATION RESISTANCE:1000 MEGOHMS
DIELECTRIC WITHSTANDING VOLTAGE:1000V AC
VOLTAGE RATING:250V AC/DC

CURRENT RATING:


4.ENVIRONMENTAL:
OPERATING TEMPERATURE:-40℃ TO +105℃


WBT-6001-1XX-2GXB-XR_00

2D Drawing
