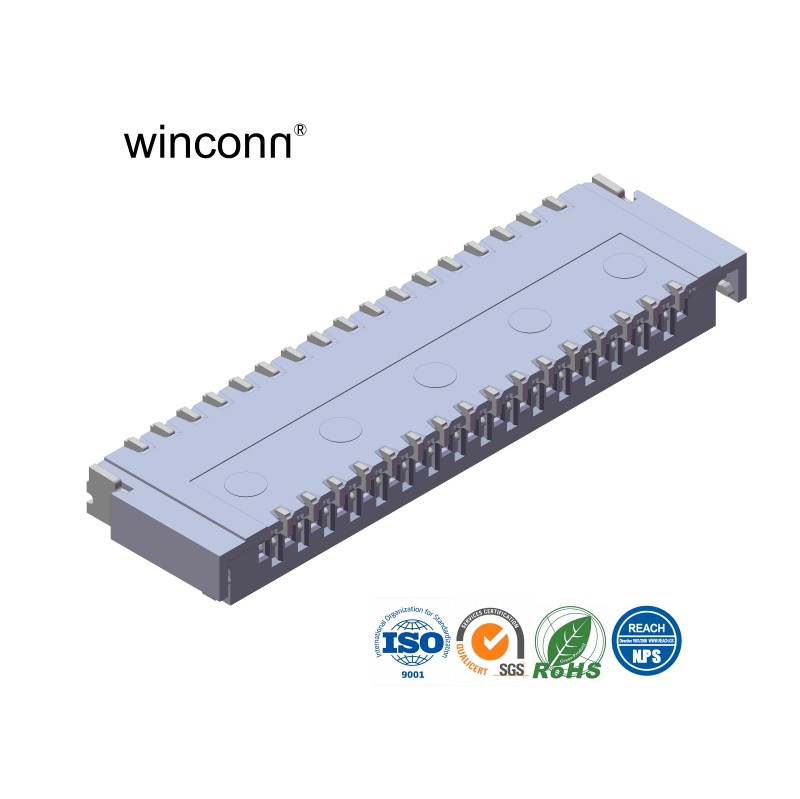

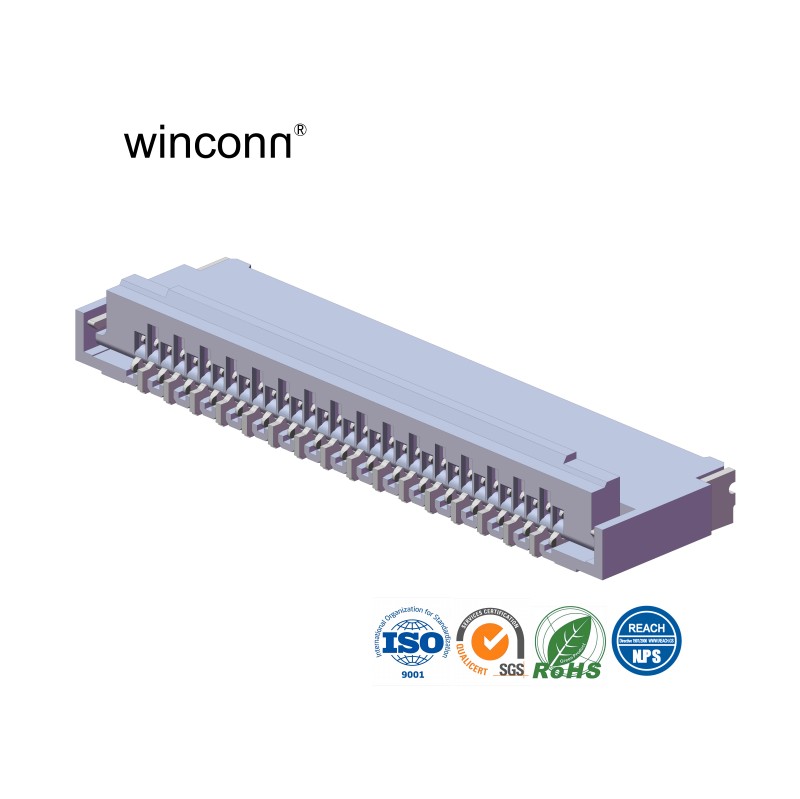

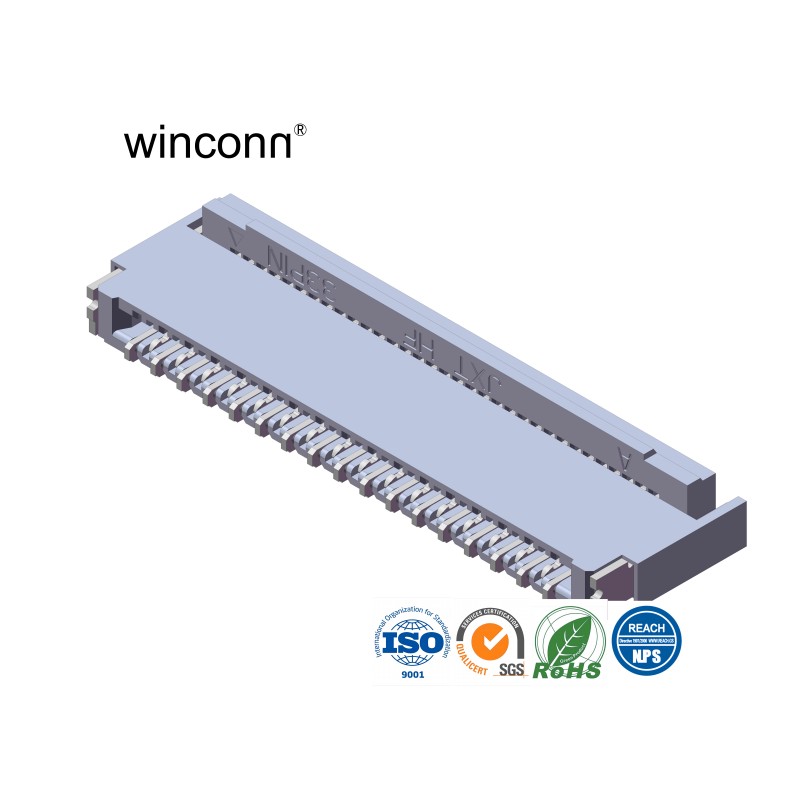

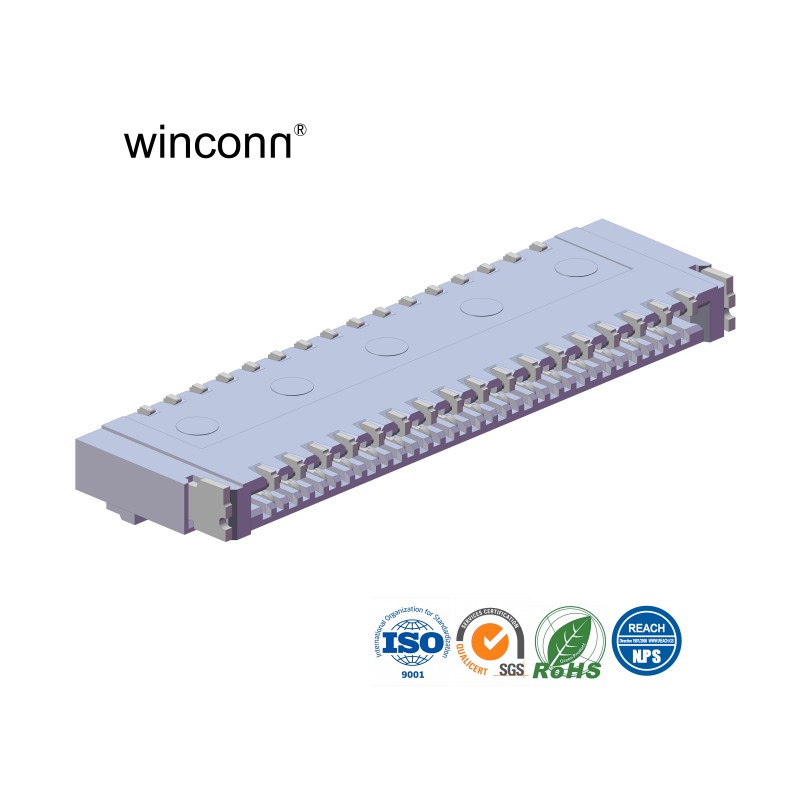

Right Angle SMT Copper 0.011(0.3mm) FFC connector

FPC 0.30mm H1.00 Right Angle SMT Type

P/N: WFP249AH-0XXG11M

NOTES:

1. MATERIAL:

HOUSING: HIGHT-TEMP PLASTIC,UL 94V-0,COLOR:NATURE;

COVER: HIGHT-TEMP PLASTIC,UL 94V-0,COLOR:BLACK;

TERMINAL: COPPER ALLOY;

PEG:  ALLOY;

2. PLATING:

TERMINAL: SEE PART NO.

PEG: TIN PLATED ON NICKEL OVERALL.

3. RATING:

CURRENT RATING: 0.3A AC/DC

VOLTAGE RATING: 30V AC/DC

TEMPERATURE RANGE: -55°C~+85°C;
