PCI Express 5.0 Straddle Type PCIE Connector

P/N: PC6006-X0XX (36P)/PC6007-X0XX (64P)/PC6008-X0XX (98P)/PC6009-X0XX (164P)
Packing: Bag/Tray/Tape Reel
Delivery time: 10~20 Days
RoHS/HF/GP Compliant
Availability:
  • PC6006-X0XX (36P)/PC6007-X0XX (64P)/PC6008-X0XX (98P)/PC6009-X0XX (164P)

  • winconn

Product Description

PCIE STRADDLE TYPE WITH GROOVE

PC6006-X0XX (36P)/PC6007-X0XX (64P)/PC6008-X0XX (98P)/PC6009-X0XX (164P)


PCI Express 5.0 Straddle Type PCIE Connector

Straddle Type PCI Express 5.0 PCIE Connector

PCI Express 5.0 Straddle Type Connector PCIE

5.0 PCI Express Straddle Type Connector PCIE

PCI Express Straddle Type Connector PCIE 5.0

PCI Express PCIE 5.0 Straddle Type Connector

PCIE 5.0 Straddle Type PCI Express Connector

PCIE 5.0 PCI Express Straddle Type Connector

Connector PCIE 5.0 PCI Express Straddle Type

Connector PCI Express Straddle Type PCIE 5.0


Material

Housing: HIGH TEMPERATURE THERMOPLASTIC UL94V-0

Contact: Brass

Plating: Au plating on contact area

Sn(100u" Min.) plating on solder tail

Ni(50u'' Min.) underplating overall

Mechanical

Insertion Force: 1.15N max per contact pair

Withdrawal Force: 0.15N min per contact pair

Contact Retention Force: 3.43N min per contact

Electrical Specification

Current Rating: 1.1 Ampere

Contact Resistance: 30 mΩ Max.

Insulation Resistance: 1000 MΩ Min.

Dielectric Withstanding Voltage: 500 VAC

Environmental

Operating Temperature: -25°C to +85°C

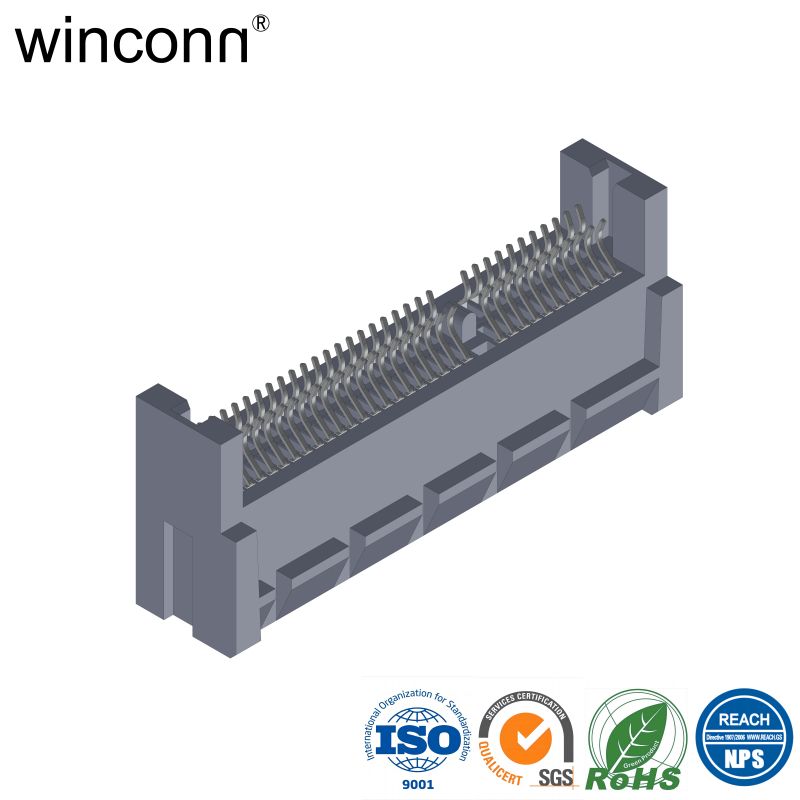

PC6007-X0XX_00

2D Drawing
