Micro Fit Pitch 3.00mm BTX Double Row Straight DIP Type

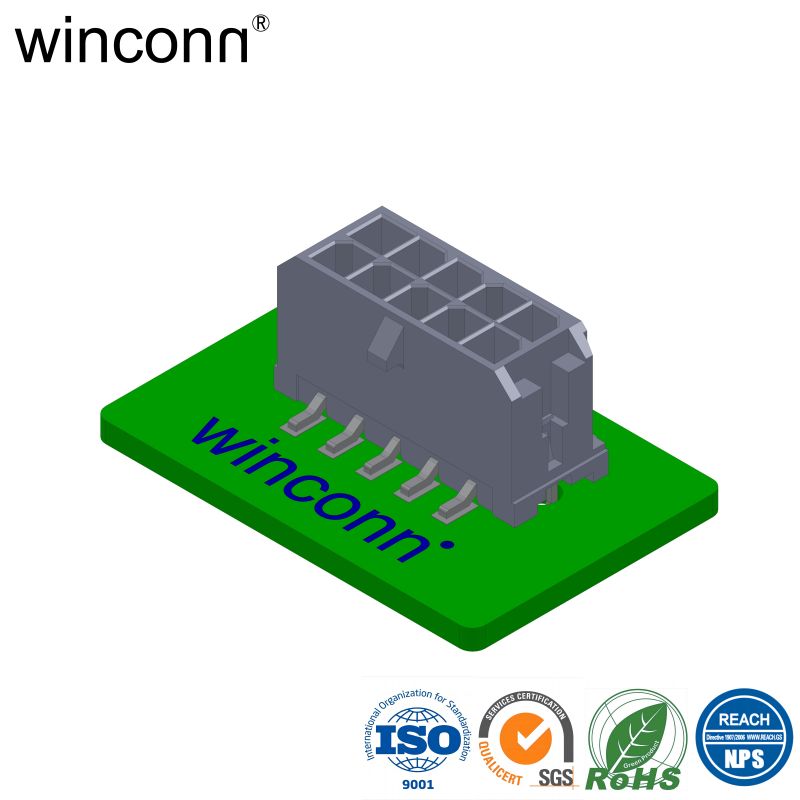

Micro Fit Pitch3.00mm Double Row Vertical SMT Type

P/N: WBT-6001-2XX-2GXB-XR

1.MATERIAL:
HOUSING:HIGH TEMPERATURE THERMOPLASTIC,UL94V-0
CONTACTS:COPPER ALLOY
2.PLATING:
CONTACT:100U"MIN TIN PLATED OVER Ni
3.ELECTRICAL:
CONTACT RESISTANCE:20 MILLIOHMS
INSULATION RESISTANCE:1000 MEGOHMS
DIELECTRIC WITHSTANDING VOLTAGE:1000V AC
VOLTAGE RATING:250V AC/DC

CURRENT RATING:

4.ENVIRONMENTAL:
OPERATING TEMPERATURE:-40℃ TO +105℃
