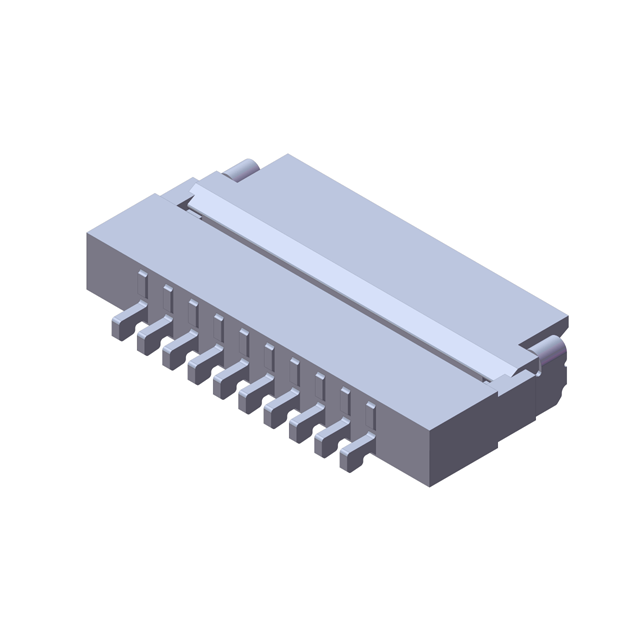

FPC 0.50mm H1.00 Non Zif Right Angle SMT Type

P/N: WFP241H-0XXG1AM

FPC ZIF(Zero Insertion Force)

FPC Non-ZIF

FPC easy-on

FFC ZIF

ZIF means (Zero inserttion force), commonly known as "zero insertion force connector", is relative to the NON-ZIF (non-zero insertion force), FPC / FPC is classified according to the row of wires, ZIF and NON-ZIF is classified according to the strength of the hand when inserted, FPC / FFC to achieve ZIF is generally structured by the seat (piano cover / flip cover) Front lock (Front lock) or Back lock (Back lock) to achieve. /FFC to achieve the way to achieve ZIF is generally structured by the seat (piano cover / flip cover) front lock (Front lock) or back lock (Back lock) to achieve.

Product Parameters

1.MATERIAL:

HOUSING: HIGH TEMPERATURE THERMOPLASTIC,UL 94V-0,Nature

COVER: HIGH TEMPERATURE THERMOPLASTIC,UL 94V-0,Black

CONTACT: COPPER ALLOY.

PEG: COPPER ALLOY.

2.FINISH:

CONTACT: Au plating on contact area,Sn(100u" Min.) plating on solder tail,

Ni(50u'' Min.) underplating overall

PEG: Tin plated on Ni overall.

3.ELECTRICAL:

CURRENT RATING: 0.5A AC/DC.

VOLTAGE RATING: 50V AC/DC.

4.ENVIRONMENTAL:

OPERATING TEMPERATURE: -25°C TO +85°C
