PC6001-X0XX (36P)/PC6002-X0XX (64P)/PC6003-X0XX (98P)/PC6005-X0XX (164P)
winconn

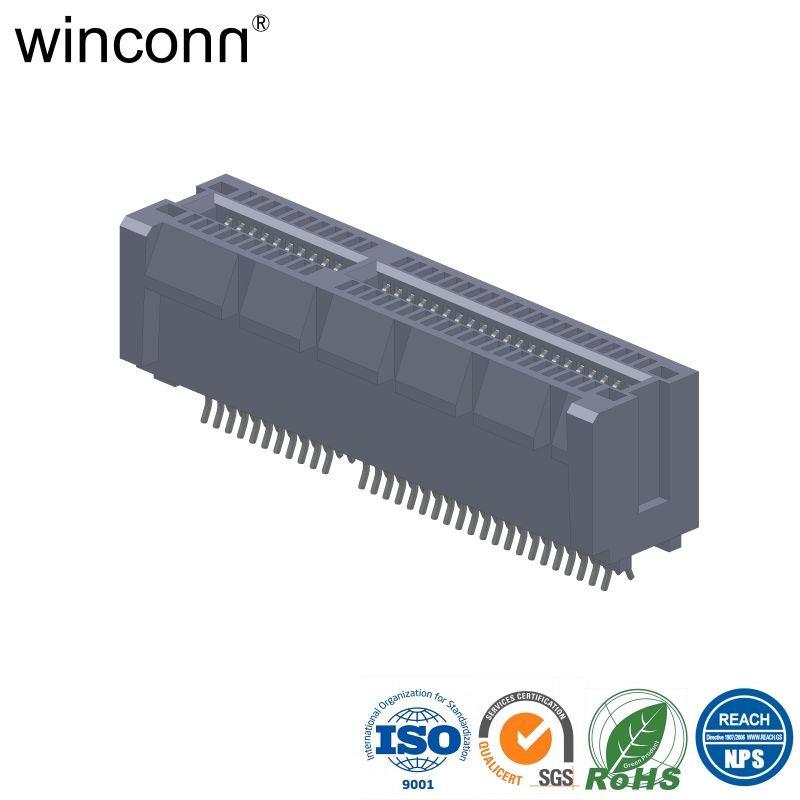

PCIe-36/64/98/164 pin, Straddle type
PC6001-X0XX (36P)/PC6002-X0XX (64P)/PC6003-X0XX (98P)/PC6005-X0XX (164P)
Material
Housing: HIGH TEMPERATURE THERMOPLASTIC UL94V-0
Contact: Brass
Plating: Au plating on contact area
Sn(100u" Min.) plating on solder tail
Ni(50u'' Min.) underplating overall
Mechanical
Insertion Force: 1.15N max per contact pair
Withdrawal Force: 0.15N min per contact pair
Contact Retention Force: 3.43N min per contact
Electrical Specification
Current Rating: 1.1 Ampere
Contact Resistance: 30 mΩ Max.
Insulation Resistance: 1000 MΩ Min.
Dielectric Withstanding Voltage: 500 VAC
Environmental
Operating Temperature: -25°C to +85°C
