China factory FPC

P/N: WFP243A-004G1AM
Packing: Bag/Tray/Tape Reel
Delivery time: 10~20 Days
RoHS/HF/GP Compliant
Availability:
  • WFP243A-004G1AM

  • winconn

Product Description

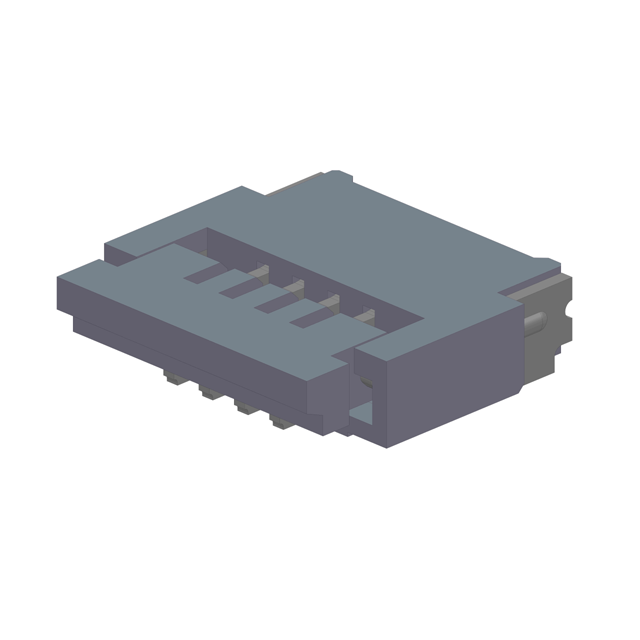

FPC 0.50mm H1.50 W/cover R/A SMT Type

P/N: WFP243A-004G1AM


China factory FPC


We are a professional FPC factory, we produce 0.25mm&0.30mm&0.50mm&0.80mm&1.00mm&1.50mm pitch FPC, 0.50mm H=0.9 for a large number of customers, price advantage and stable and reliable quality, welcome your inquiry.



Product Parameters

1.MATERIAL:

HOUSING: HIGH TEMPERATURE THERMOPLASTIC,UL 94V-0,Nature

COVER: HIGH TEMPERATURE THERMOPLASTIC,UL 94V-0,Black

CONTACT: COPPER ALLOY.

PEG: COPPER ALLOY.


2.FINISH:

CONTACT: Au plating on contact area,Sn(100u" Min.) plating on solder tail,

Ni(50u'' Min.) underplating overall

PEG: Tin plated on Ni overall.


3.ELECTRICAL:

CURRENT RATING: 0.5A AC/DC.

VOLTAGE RATING: 50V AC/DC.


4.ENVIRONMENTAL:

OPERATING TEMPERATURE: -25°C TO +85°C


WFP243X-0XXG1AM_00

WFP243X-0XXG1AM_01

WFP243X-0XXG1AM_02
