WFP257H-0XXG10M
winconn

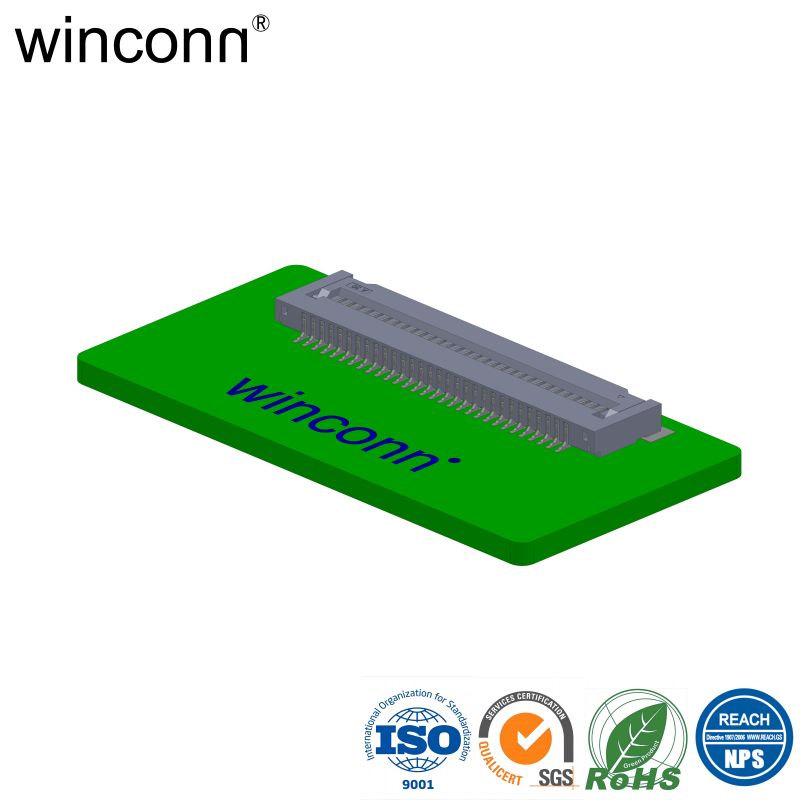

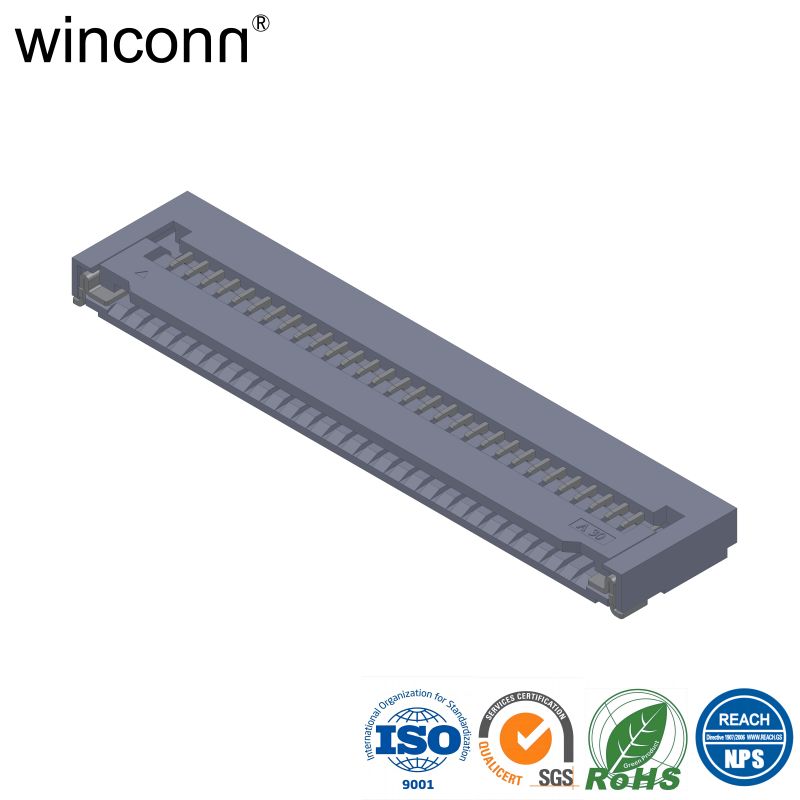

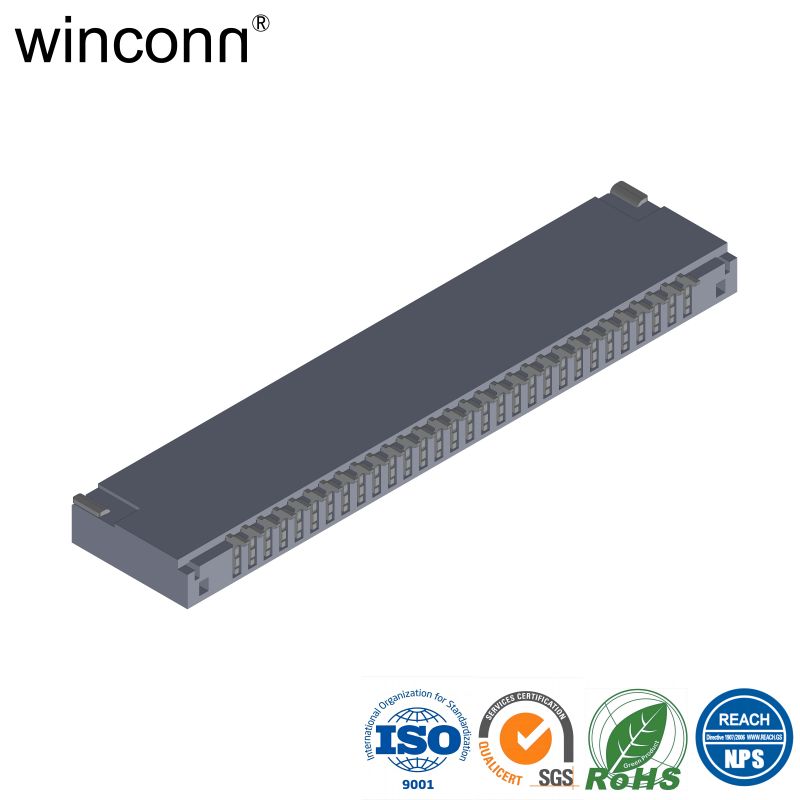

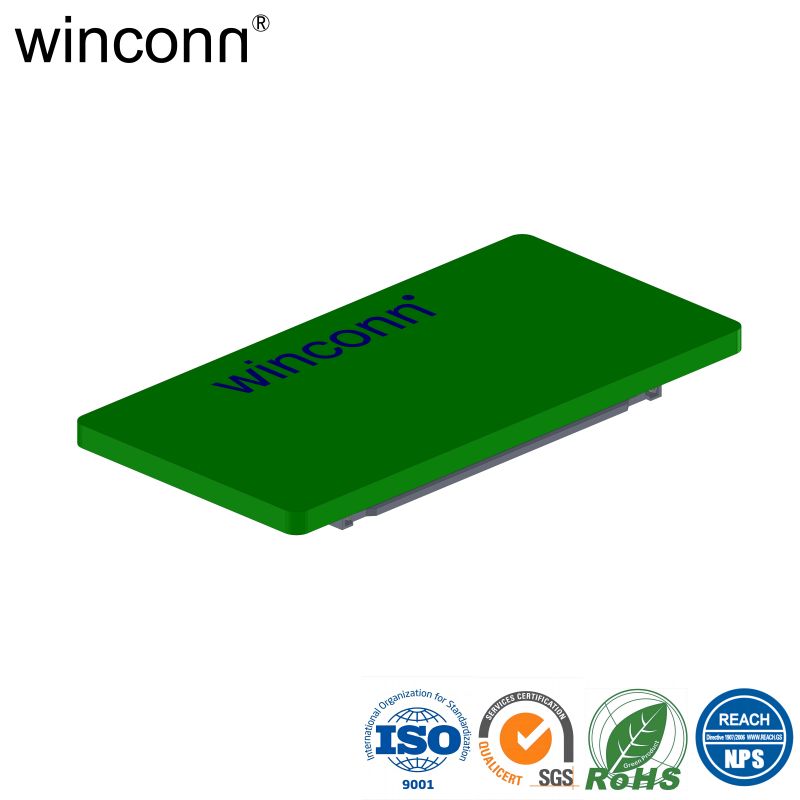

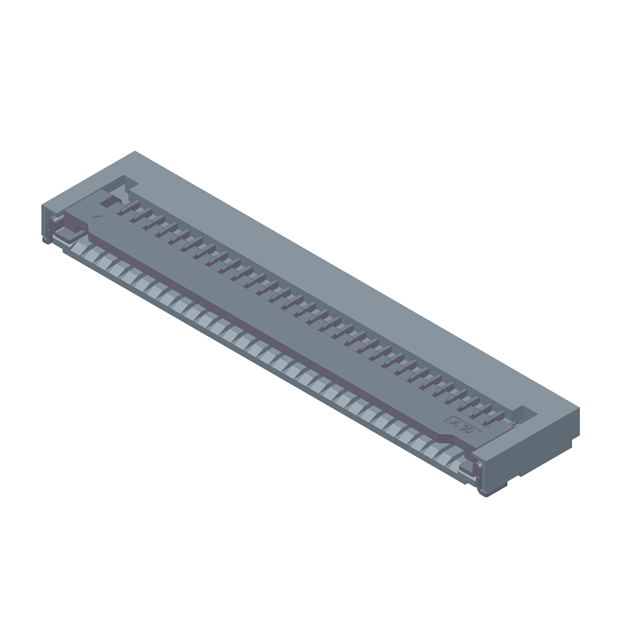

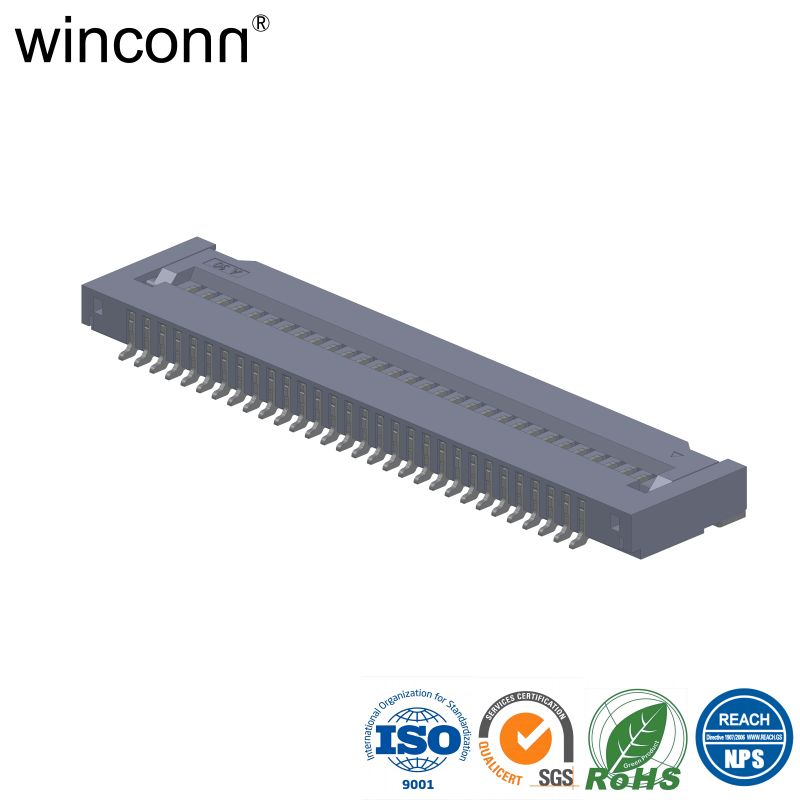

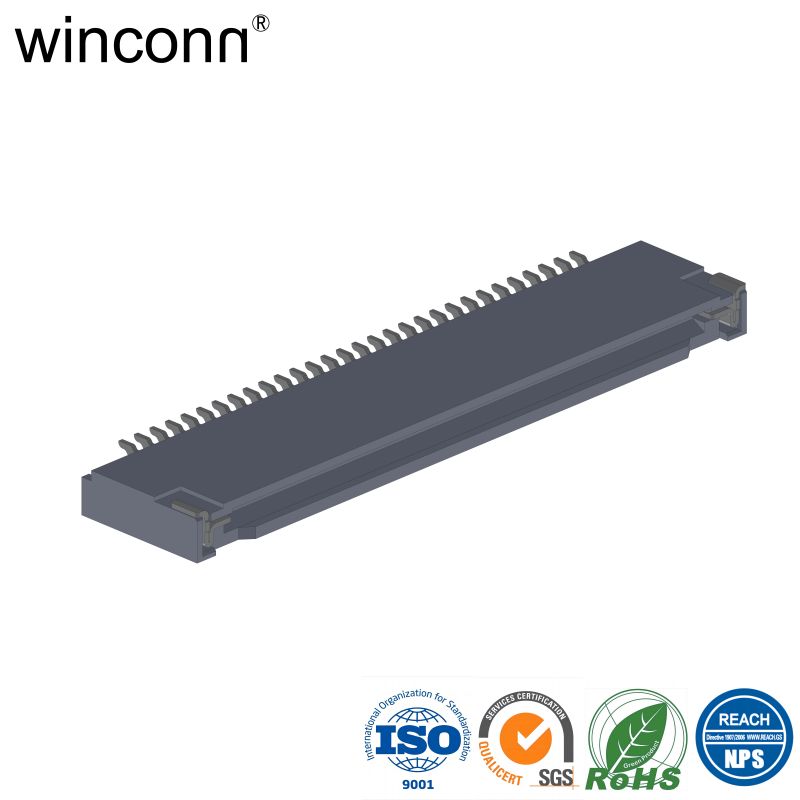

FPC 0.80mm H2.00 Right Angle SMT Type
P/N: WFP257H-0XXG10M
Product Parameters
1.MATERIAL:
HOUSING: HIGH TEMPERATURE THERMOPLASTIC,UL 94V-0,Nature
COVER: HIGH TEMPERATURE THERMOPLASTIC,UL 94V-0,Black
CONTACT: COPPER ALLOY.
PEG: COPPER ALLOY.
2.FINISH:
CONTACT: Au plating on contact area,Sn(100u" Min.) plating on solder tail,
Ni(50u'' Min.) underplating overall
PEG: Tin plated on Ni overall.
3.ELECTRICAL:
CURRENT RATING: 0.5A AC/DC.
VOLTAGE RATING: 50V AC/DC.
4.ENVIRONMENTAL:
OPERATING TEMPERATURE: -25°C TO +85°C
