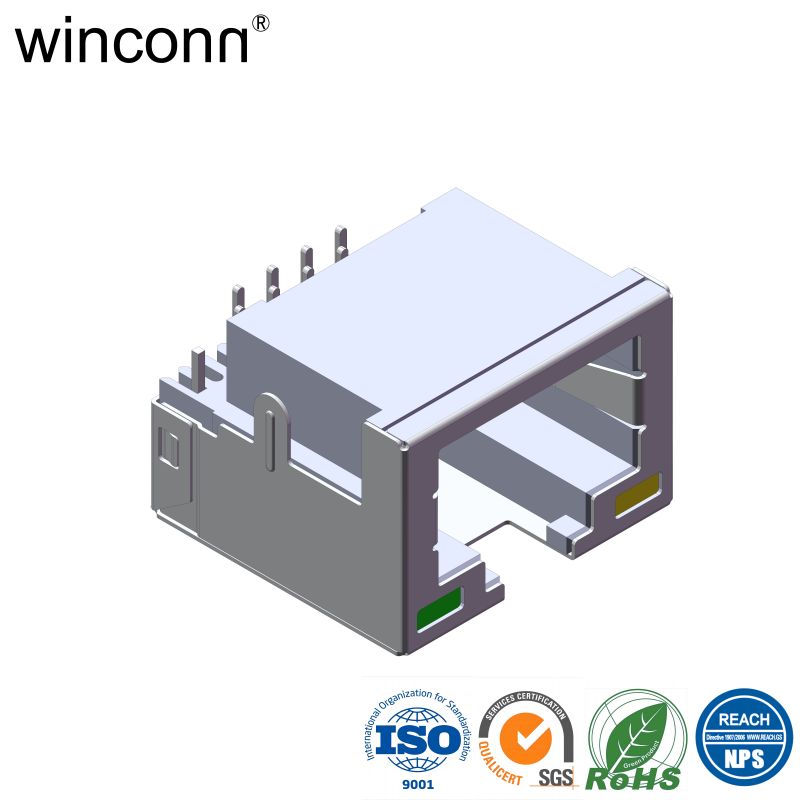

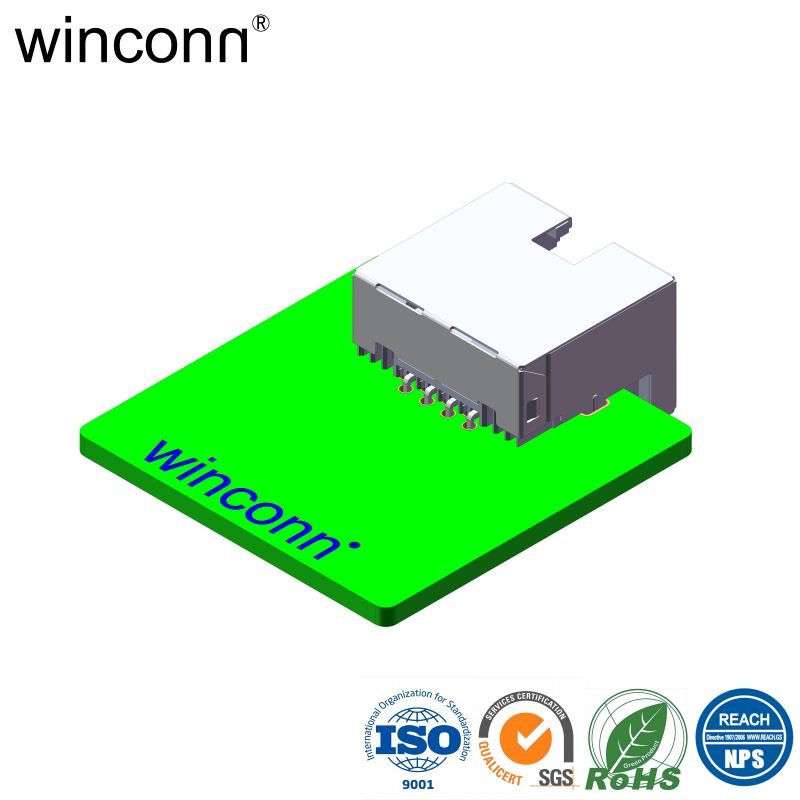

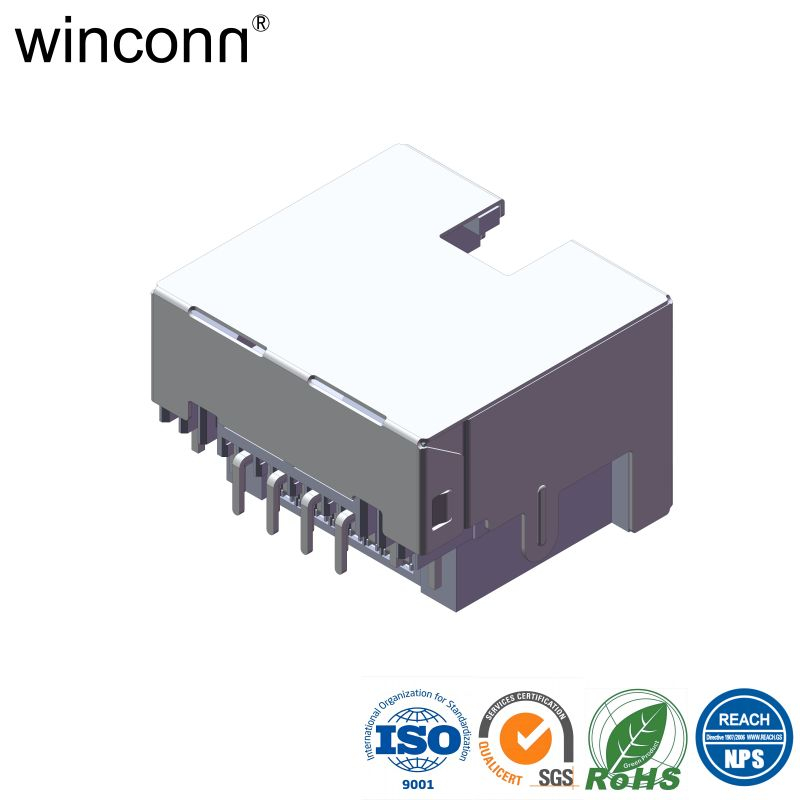

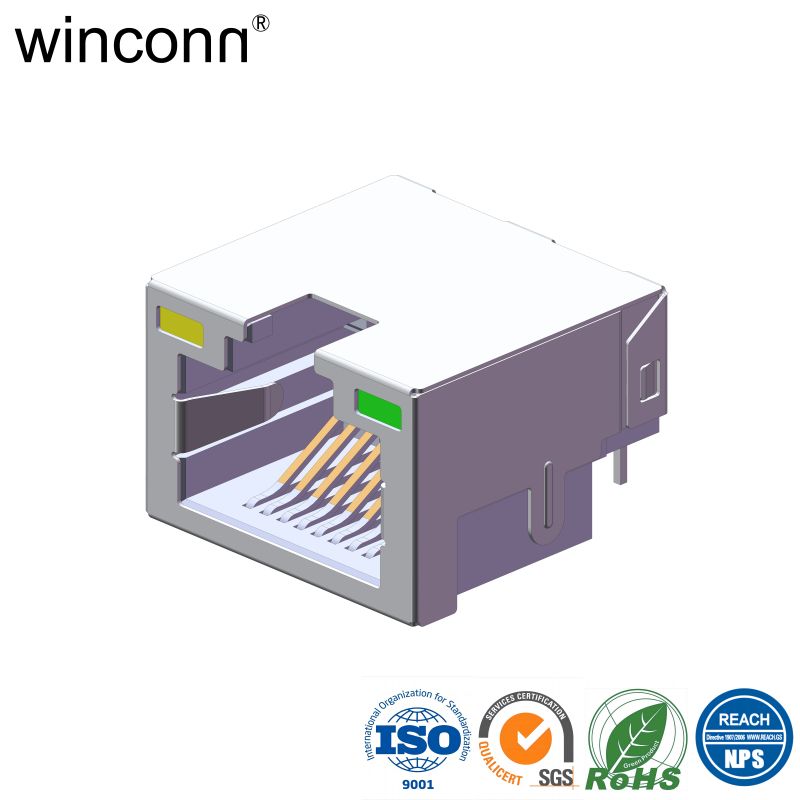

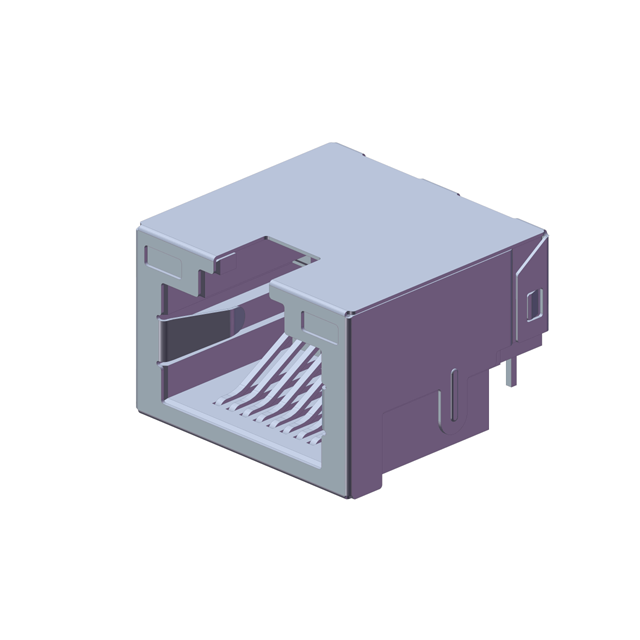

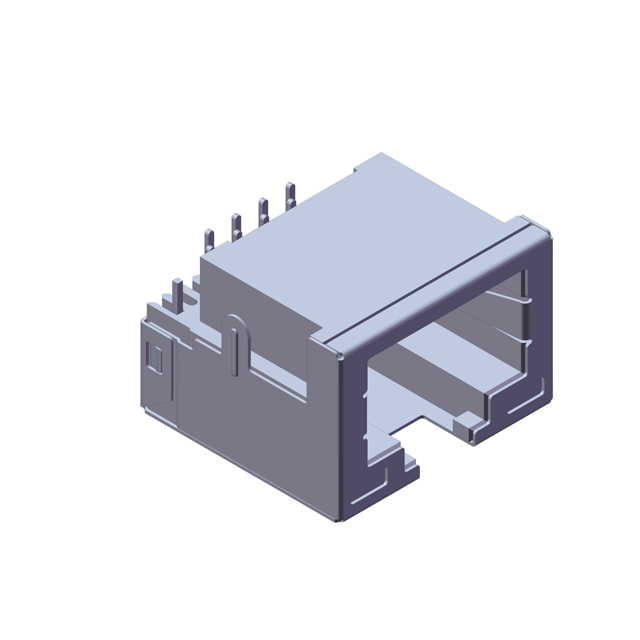

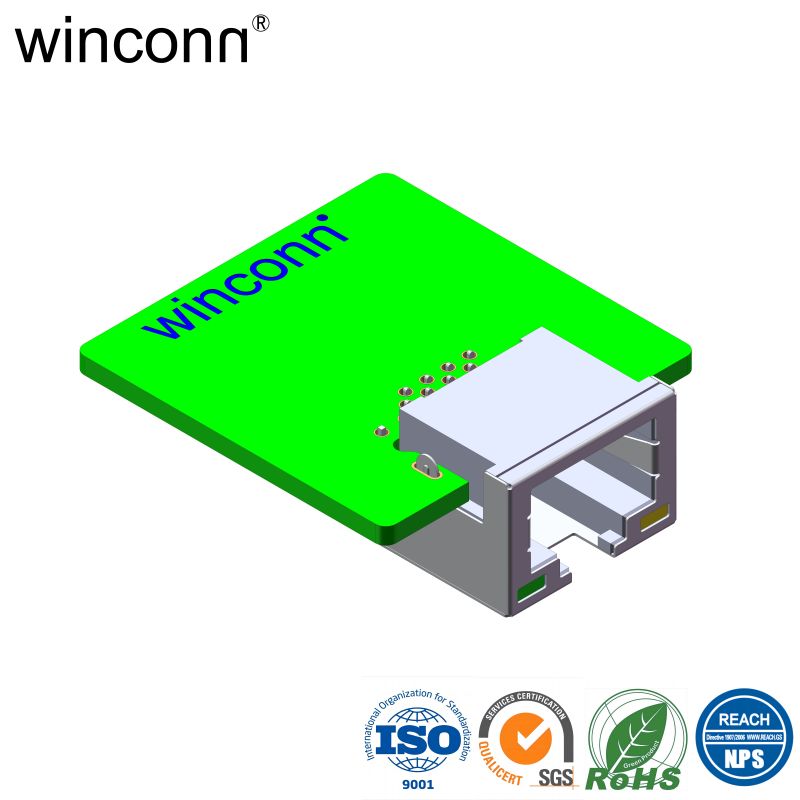

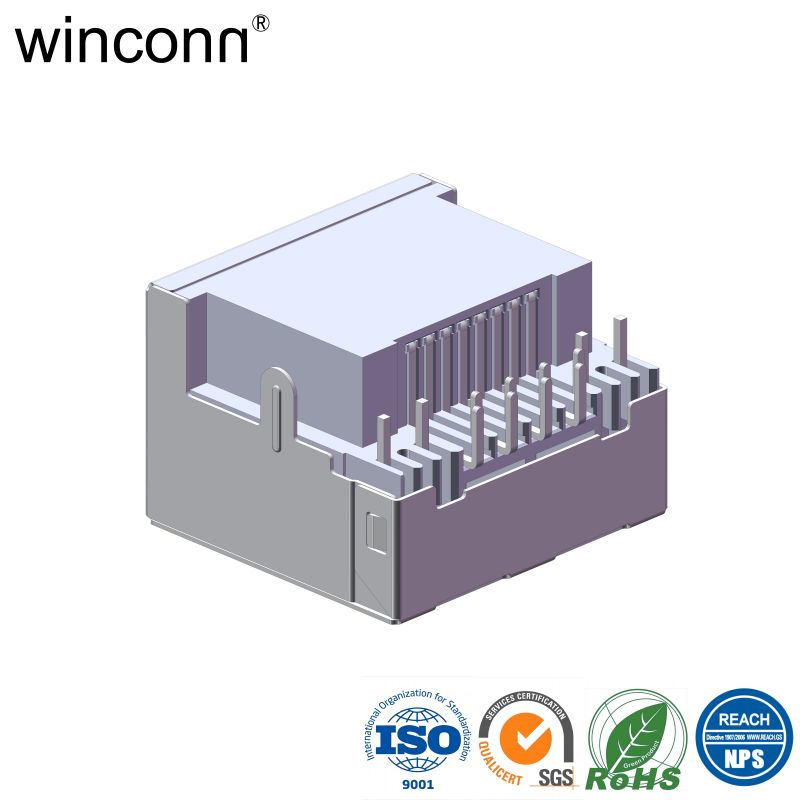

Sinker Type Right Angle DIP with LED RJ45 connector

Share to:

Sinker Type Right Angle DIP with LED RJ45 connector

Sinker Type Right Angle DIP with LED RJ45 connector,Right Angle DIP with LED Sinker Type RJ45 connector,Angle DIP with LED Sinker Type Right RJ45 connector,DIP with LED Sinker Type Right Angle RJ45 connector,with LED Sinker Type Right Angle DIP RJ45 connector

Availability:



Inquire Add to Basket

Model:
RJ-1021-3XNB-TR
Brand:
winconn

Product Description

RJ45 Right Angle DIP type connector

P/N: RJ-1021-3XNB-TR

Product Parameters

1.Material:

HOUSING: GLASS FILLED POLYESTER(UL94V-0)

CONTACT: PHOSPHOR BRONZE

SHELL: PHOSPHOR BRONZE

2.FINISH:

CONTACT: AU PLATING OVER NI(50m" MIN.)

SHELL: NI PLATING.

3.ELECTRICAL:

CONTACT RESISTANCE: 50 mΩ MAX.

INSULATION RESISTANCE: 500MΩ Min.

DIELECTRIC WITHSTANDING VOLTAGE: 1000V AC

CURRENT RATING: 1.5A

4.ENVIRONMENTAL:

OPERATING TEMPERATURE: -40°C TO +105°C
