Auto lock-nail system with the actuator PCB Mount office equipment FPC

Auto lock-nail system with the actuator PCB Mount office equipment FPC,system with the actuator PCB Mount office equipment Auto lock-nail FPC,with the actuator PCB Mount office equipment Auto lock-nail system FPC,PCB Mount office equipment Auto lock-nail system with the actuator FPC,Mount office equipment Auto lock-nail system with the actuator PCB FPC
Availability:
  • WFP258H-0XXG10M

  • winconn

Product Description

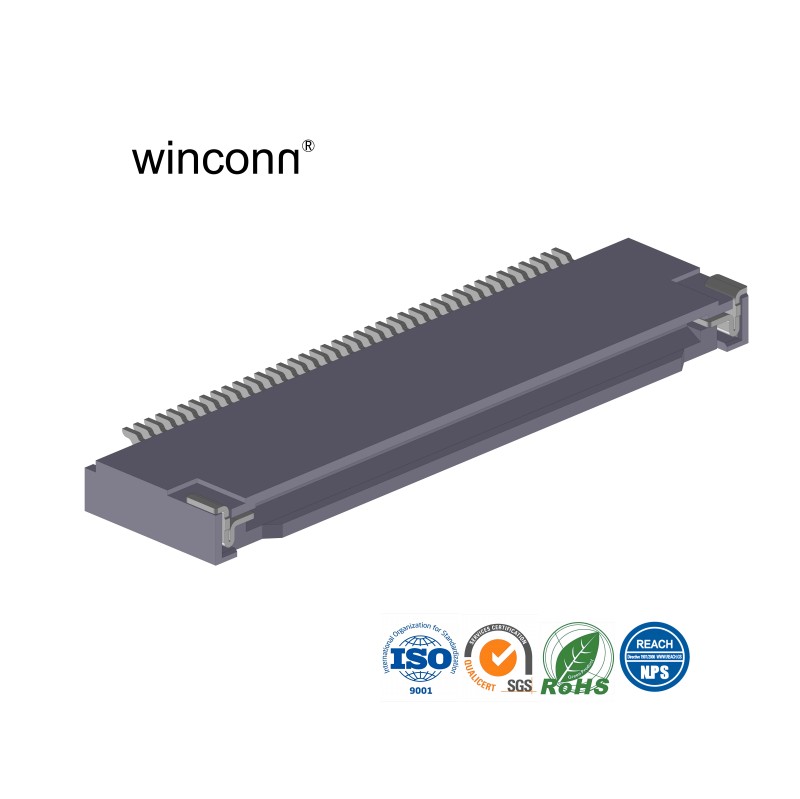

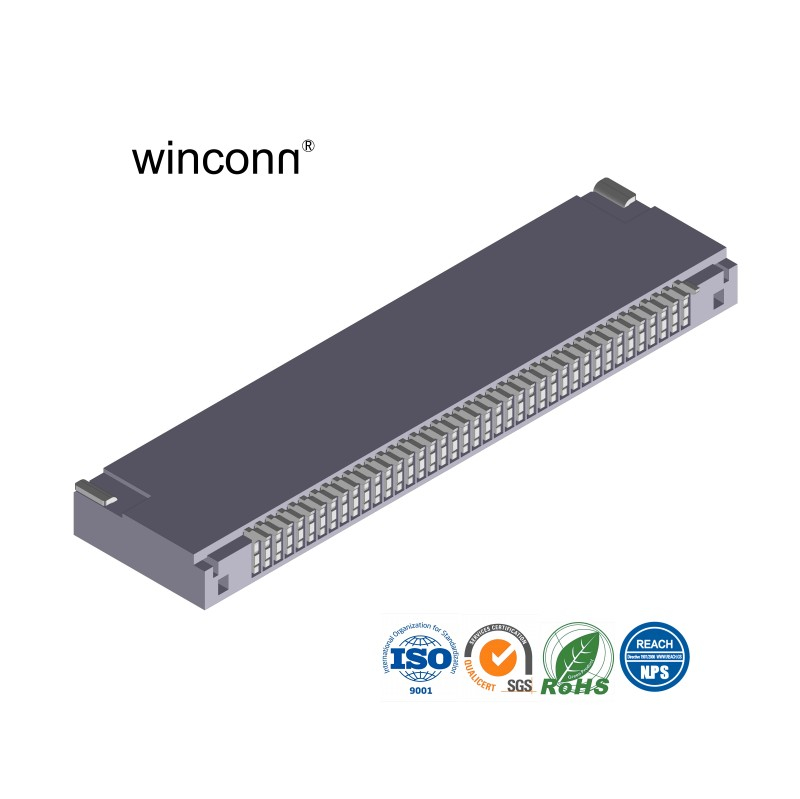

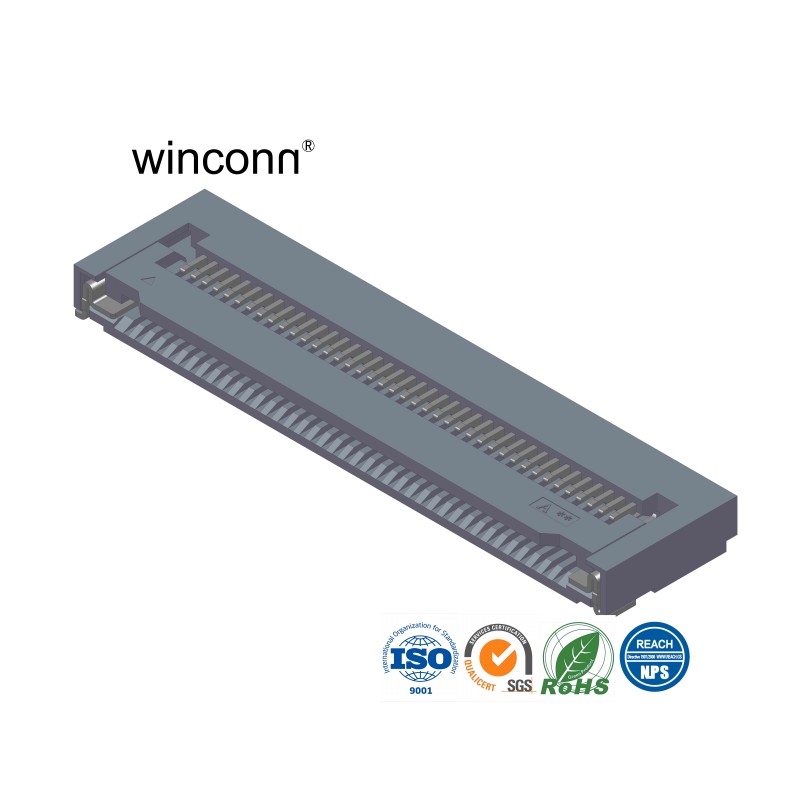

FPC 1.00mm H2.00 Right Angle SMT Type

P/N: WFP258H-0XXG10M



Product Parameters

1.MATERIAL:

HOUSING: HIGH TEMPERATURE THERMOPLASTIC,UL 94V-0,Nature

COVER: HIGH TEMPERATURE THERMOPLASTIC,UL 94V-0,Black

CONTACT: COPPER ALLOY.

PEG: COPPER ALLOY.


2.FINISH:

CONTACT: Au plating on contact area,Sn(100u" Min.) plating on solder tail,

Ni(50u'' Min.) underplating overall

PEG: Tin plated on Ni overall.


3.ELECTRICAL:

CURRENT RATING: 0.5A AC/DC.

VOLTAGE RATING: 50V AC/DC.


4.ENVIRONMENTAL:

OPERATING TEMPERATURE: -25°C TO +85°C


WFP258H-0XXG10M_00

WFP258H-0XXG10M_01
