HG02A10P8C
winconn

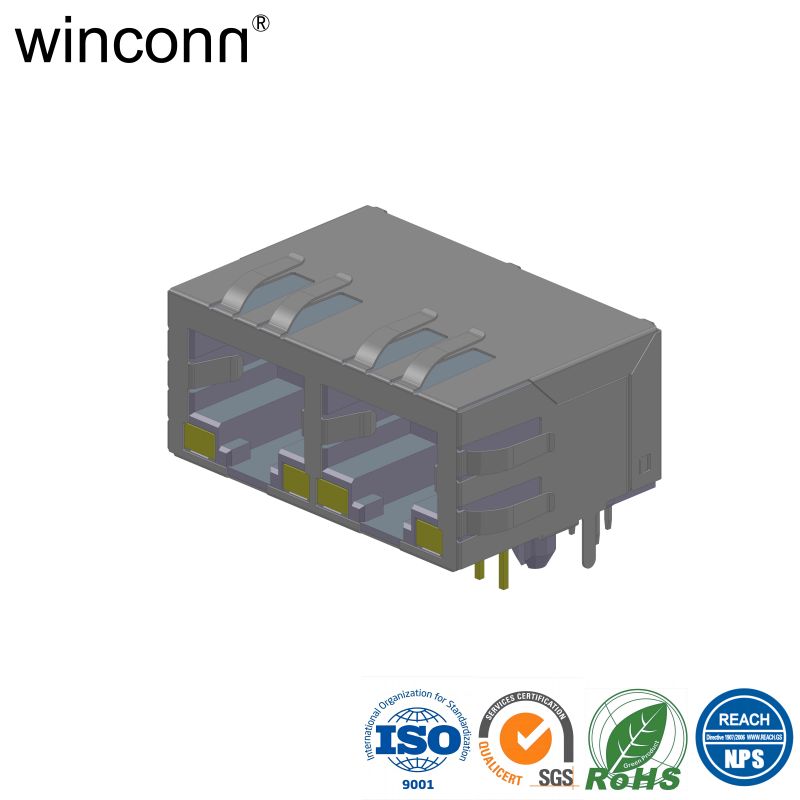

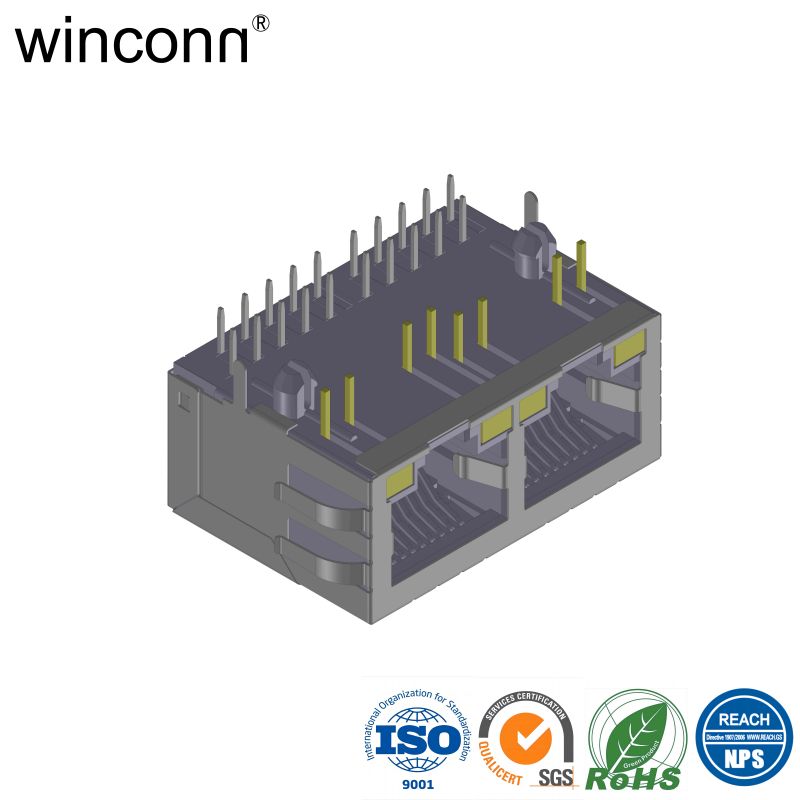

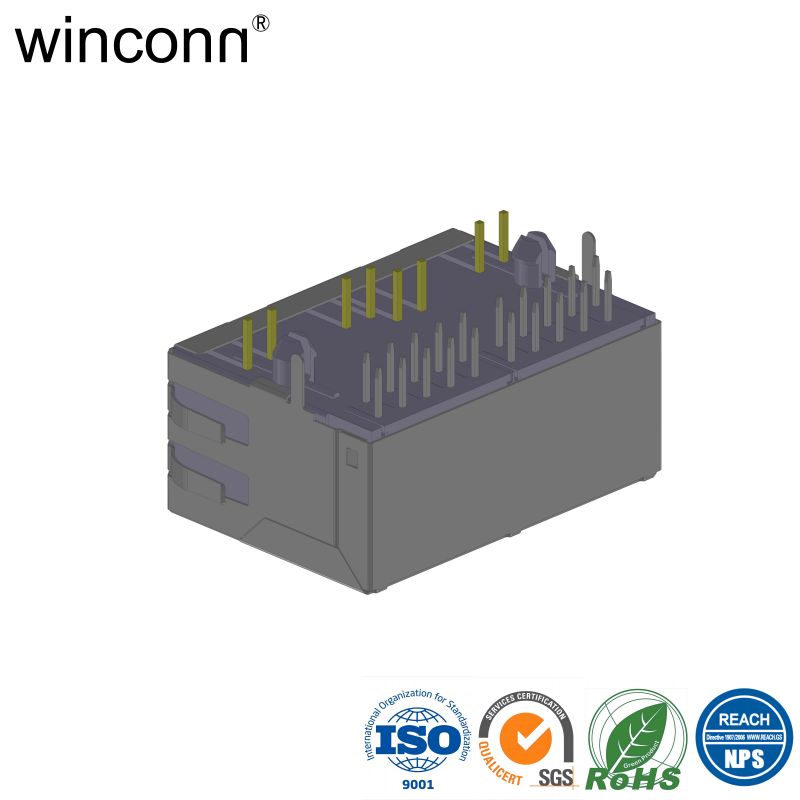

RJ45 1*2port Right Angle DIP type connector
P/N: HG02A10P8C
Product Parameters
1.Material:
HOUSING: GLASS FILLED POLYESTER(UL94V-0)
CONTACT: PHOSPHOR BRONZE
SHELL: PHOSPHOR BRONZE
2.FINISH:
CONTACT: AU PLATING OVER NI(50m" MIN.)
SHELL: NI PLATING.
3.ELECTRICAL:
CONTACT RESISTANCE: 50 mΩ MAX.
INSULATION RESISTANCE: 500MΩ Min.
DIELECTRIC WITHSTANDING VOLTAGE: 1000V AC
CURRENT RATING: 1.5A
4.ENVIRONMENTAL:
OPERATING TEMPERATURE: -40°C TO +105°C
