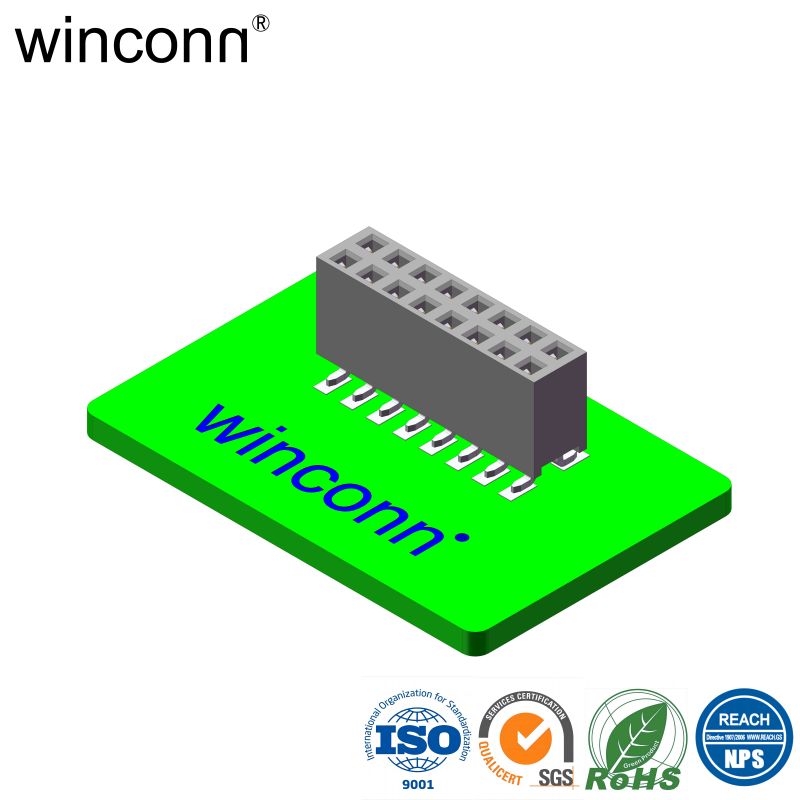

FEMALE HEADER 2.00mm DOUBLE ROW VERTICAL SMT TYPE

P/N: WFH-7011-2XX-2GXB-XR

NOTE:
1. MATERIAL:
 HOUSING: THERMOPLASTIC,HIGH TEMP, 30% G/F
              UL 94V-0, COLOR:BLACK.
 CONTACT: PHOSPHOR BRONZE OR BRASS.
2. FINISH:
 CONTACT: AU PLATING OVER NI(50m" MIN.)
3.ELECTRICAL:
 CONTACT RESISTANCE: 20mΩ Max.
  INSULATION RESISTANCE: 1000MΩ Min.
 DIELECTRIC WITHSTANDING VOLTAGE: 500V AC
 CURRENT RATING: 1.5A
4.ENVIRONMENTAL:
 OPERATING TEMPERATURE: -25°C TO +85°C
 COMPLIANCE: RoHS or HF
