WPH-7008-1XX-1GXB-XR
winconn

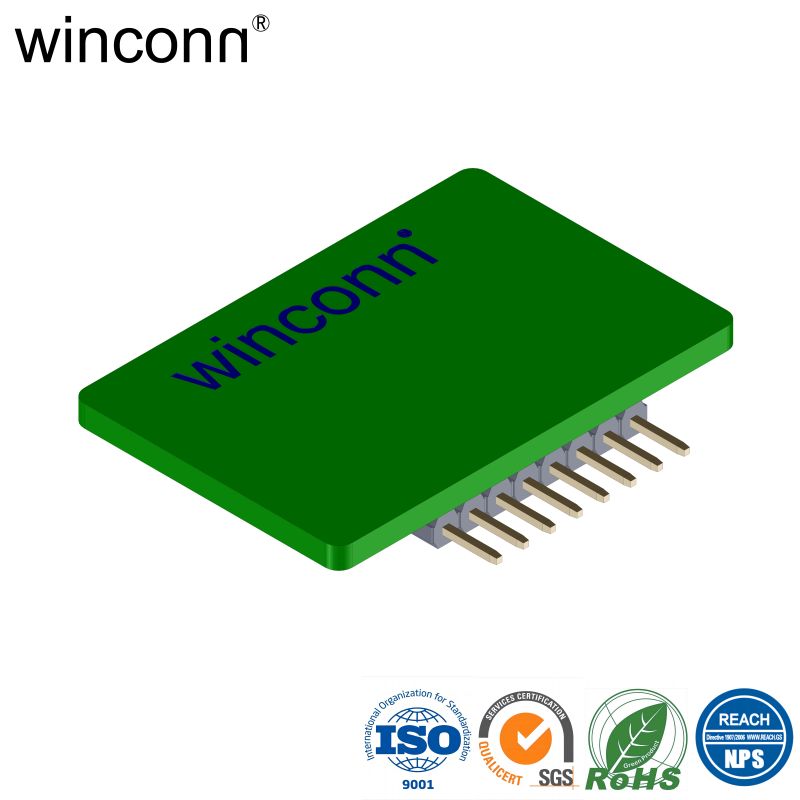

Pin Header Pitch=2.00mm Single Row Right Angle SMT Type H=2.00mm
P/N: WPH-7008-1XX-1GXB-XR
MATERIAL:
HOUSING: THERMOPLASTIC,HIGH TEMP, 30% G/F
UL 94V-0, COLOR:BLACK.
CONTACT: BRASS.
2. FINISH:
CONTACT: AU PLATING OVER NI(50m" MIN.)
3.ELECTRICAL:
CONTACT RESISTANCE: 20mΩ Max.
INSULATION RESISTANCE: 1000MΩ Min.
DIELECTRIC WITHSTANDING VOLTAGE: 500V AC
CURRENT RATING: 1.5A
4.ENVIRONMENTAL:
OPERATING TEMPERATURE: -25°C TO +85°C
COMPLIANCE: RoHS or HF
