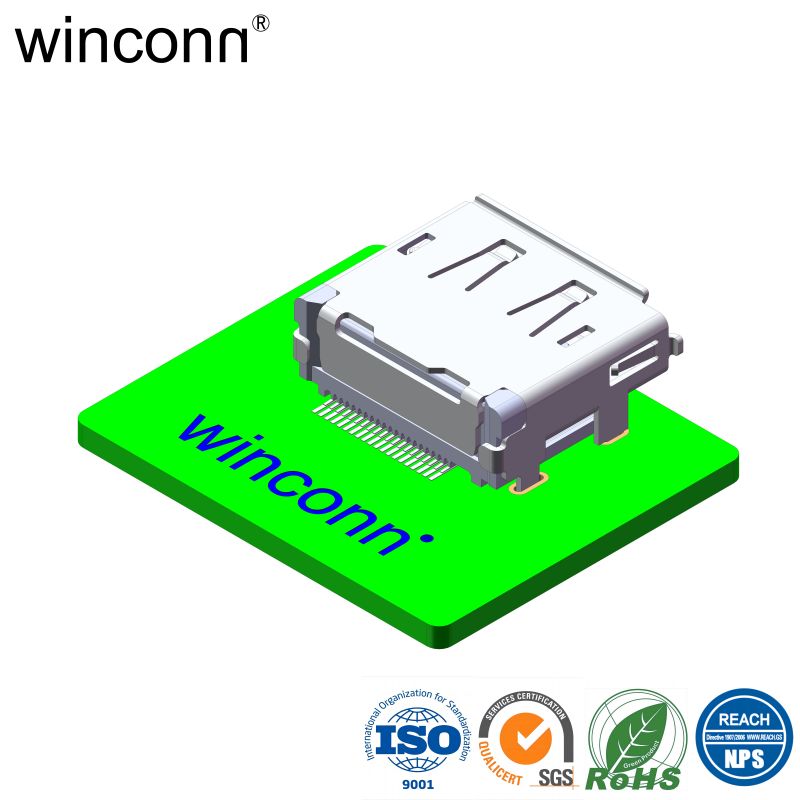

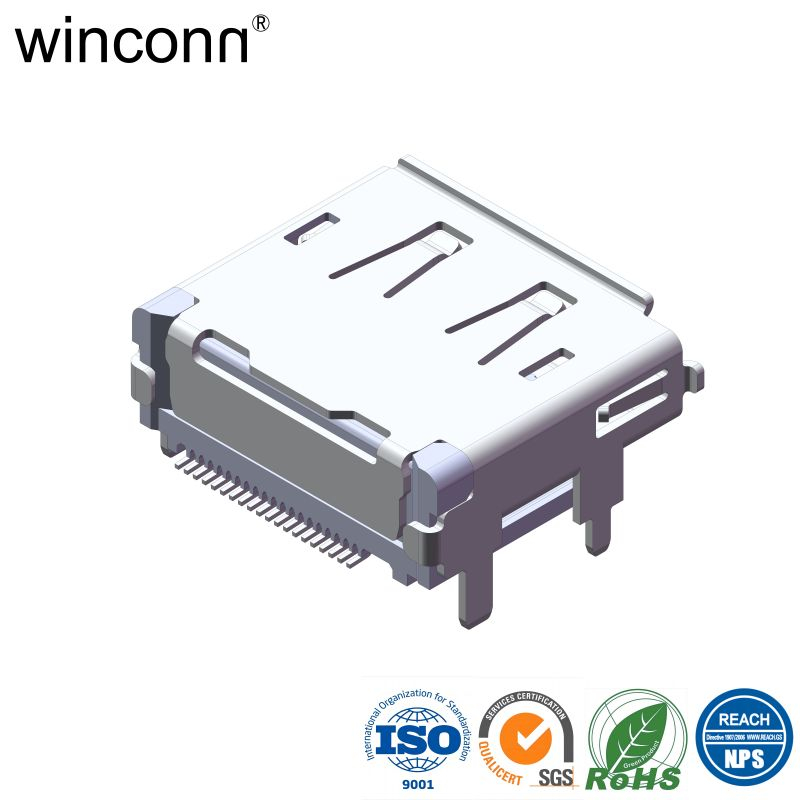

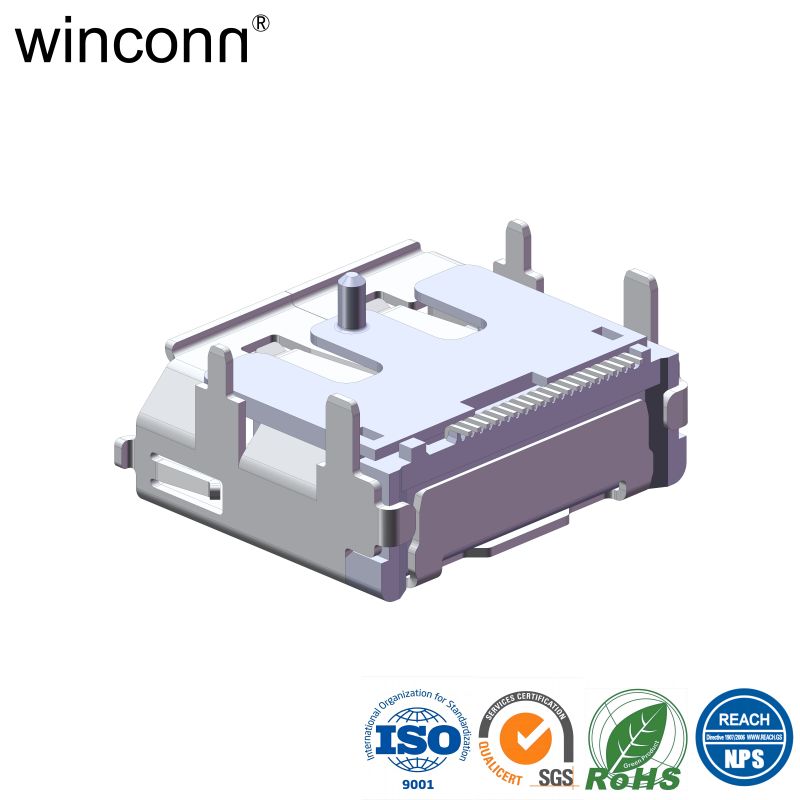

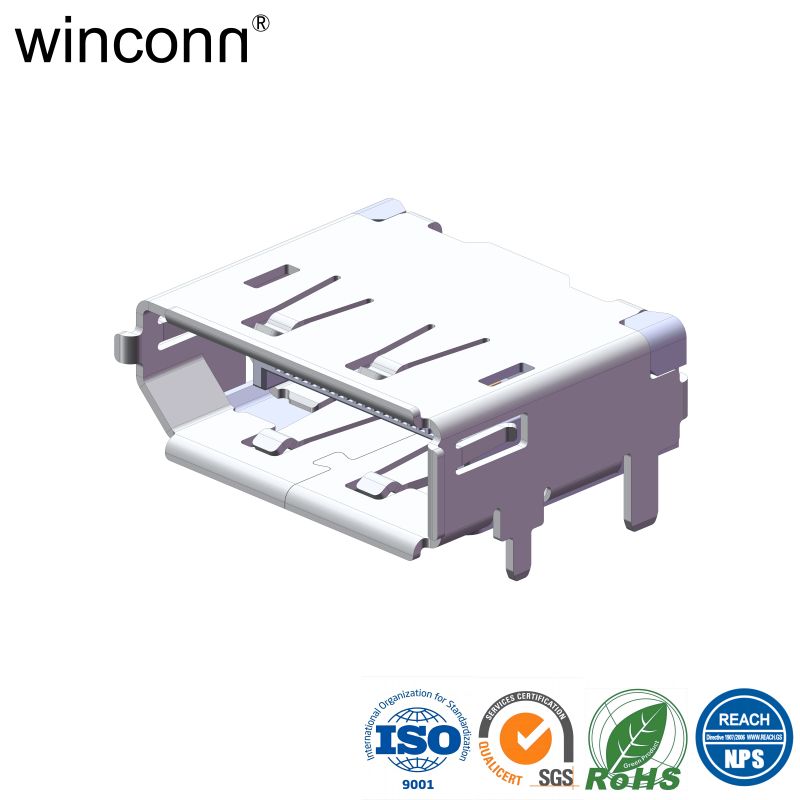

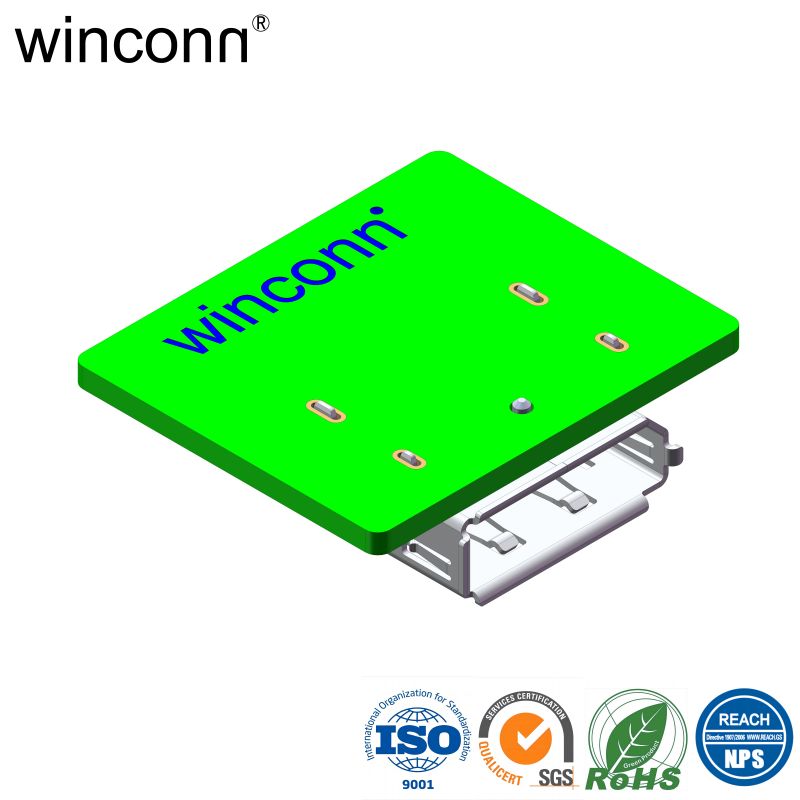

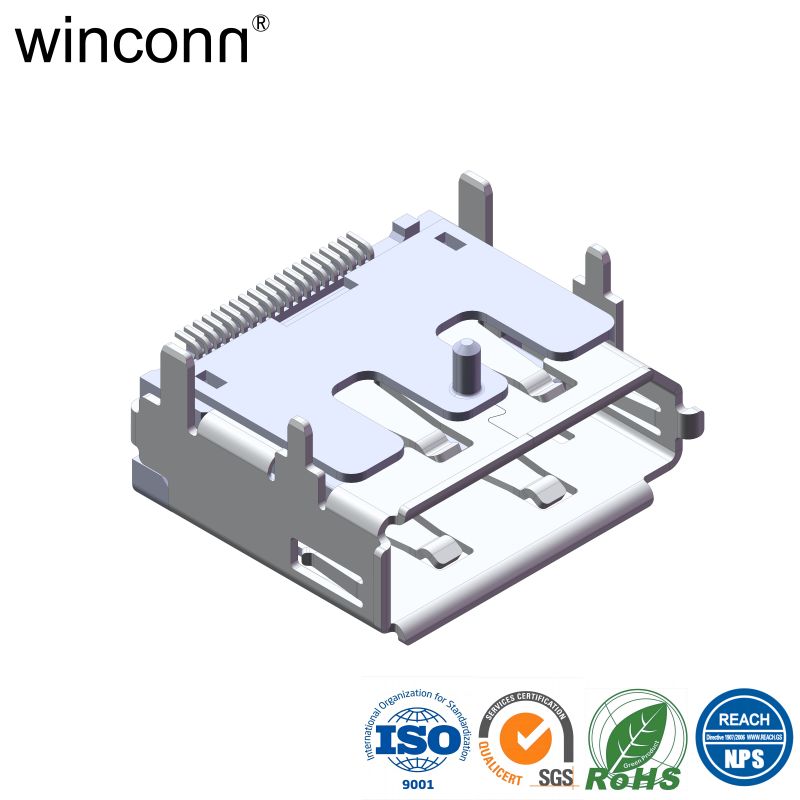

Right Angle SMT Medical Displayport connector

Displayport Right Angle SMT Medical connector

P/N: DP-1001-1XNB-TR

Right Angle SMT Medical Displayport connector

Angle SMT Medical Right Displayport connector

SMT Medical Right Angle Displayport connector

Medical Right Angle SMT Displayport connector

Right Angle SMT Medical connector Displayport

Angle SMT Medical connector Right Displayport

SMT Medical connector Right Angle Displayport

Medical connector Right Angle SMT Displayport

connector Right Angle SMT Medical Displayport

Displayport connector Right Angle SMT Medical

NOTES:

1.MATERIAL:

1.1 INSULATOR:LCP E130i WITH 30% G/F UL 94V-0 COLOR:BLACK

1.2 CONTACT:BRASS C2680 T=0.20MM

1.3 SHELL:STEEL T=0.5MM

2.PLATING SPECIFICATION:

2.1 CONTACTS:Ni 50u" MIN. UNDER PLATED,GOLD FLASH PLATED

ON THE MATING AREA OF CONTACT.

MATTE Sn MIN. PLATED ON THE SOLDER TALL.

2.2 FRONT SHELL:Black Ni or Ni 50u"MIN. UNDER PLATED OVER ALL.

3.ELECTRICAL CHARACTERISTIC:

3.1 LOW LEVEL CONTACT RESISTANCE:30mΩ MAX.

3.2 DIELECTIC WITHSTANDING VOLTAGE:

40 VAC BETWEEN ADJACENT TERMINAL OR GROUND,No Breakdown

3.3 INSULATION RESISTANCE:100MΩ  MINIMUM(Unmated).

10MΩ  MINIMUM(Mated).

4.MECHANICAL CHARACTERISTIC:

4.1 INSERTION FORCE:44.1N(4.5kgf)MAXIMUM.

4.2 EXTRACTION FORCE:

INITIAL:9.8N(1.0kgf)-39.2N(4.0kgf).

AFTER 2001 TO 10000 CYCLES:4.9N(0.5kgf)-39.2N(4.0kgf).

5.SALT SPRAY TEST: 24H
