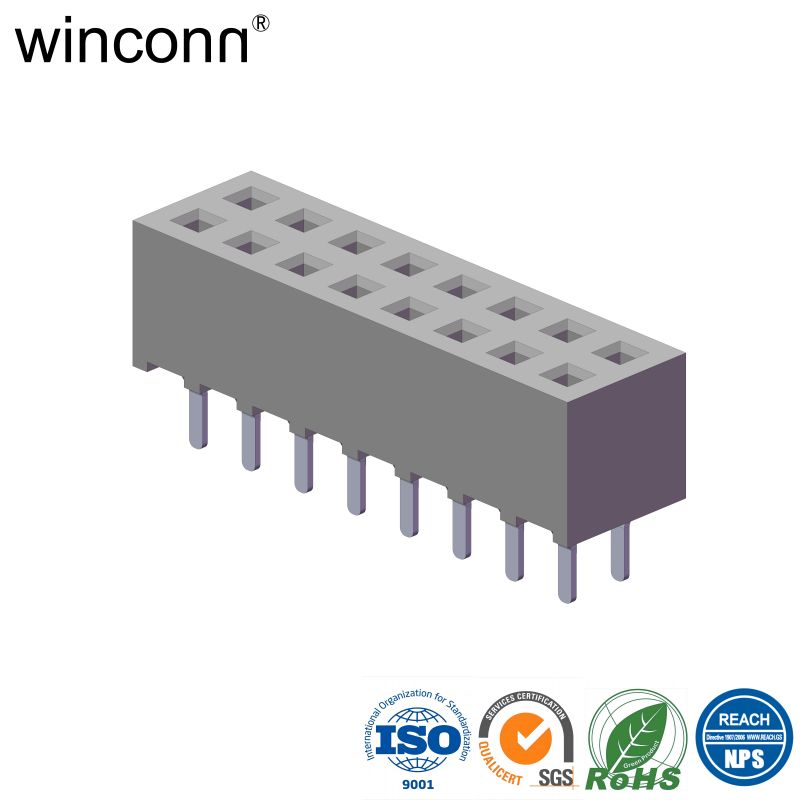

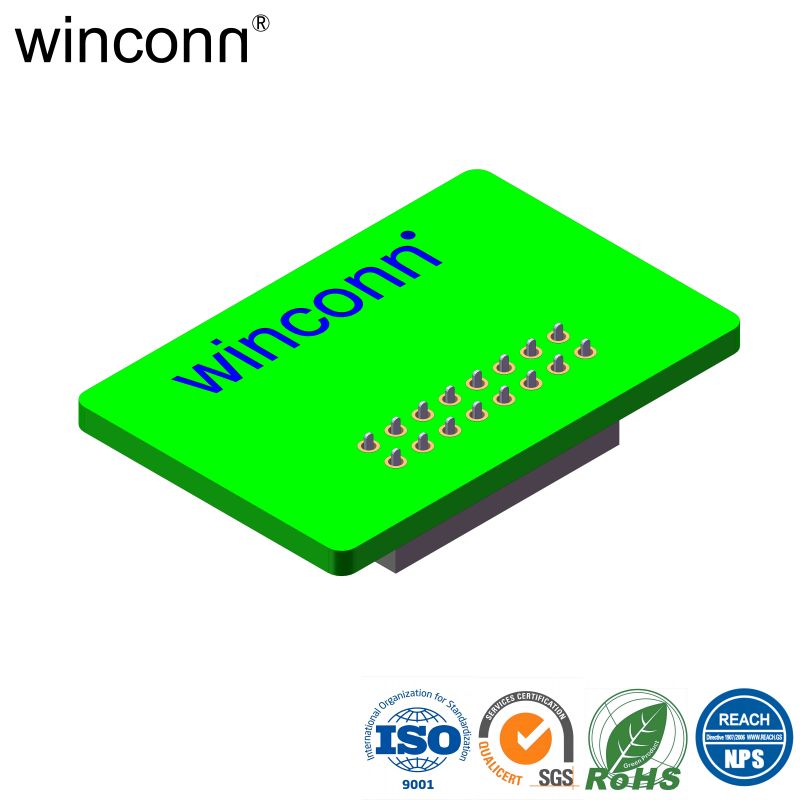

Horizontal DIP Set Top Boxes Female Header Terminal

P/N: WFH-7X02-2XX-4GXB-XR
Packing: Bag/Tray/Tape Reel
Delivery time: 10~20 Days
RoHS/HF/GP Compliant
Availability:
  • WFH-7X02-2XX-4GXB-XR

  • winconn

Product Description

FEMALE HEADER 2.00mm DOUBLE ROW STRAIGHT DIP TYPE H=4.3

P/N: WFH-7X02-2XX-4GXB-XR


NOTE:
1. MATERIAL:
 HOUSING: THERMOPLASTIC,HIGH TEMP, 30% G/F
              UL 94V-0, COLOR:BLACK.
 CONTACT: PHOSPHOR BRONZE OR BRASS.
2. FINISH:
 CONTACT: AU PLATING OVER NI(50m" MIN.)
3.ELECTRICAL:
 CONTACT RESISTANCE: 20mΩ Max.
  INSULATION RESISTANCE: 1000MΩ Min.
 DIELECTRIC WITHSTANDING VOLTAGE: 500V AC
 CURRENT RATING: 1.5A
4.ENVIRONMENTAL:
 OPERATING TEMPERATURE: -25°C TO +85°C
 COMPLIANCE: RoHS or HF


WFH-7X02-2XX-4GXB-XR_00

2D Drawing
