Name: Hirose Alternative DF13E-40DP-1.25V (55) WTB connector
Brand: winconn
Rating: 5.0 (57 reviews)

P/N: SCT1252WV-S-F-2xXXP
Packing: Bag/Tray/Tape Reel
Delivery time: 10~20 Days
RoHS/HF/GP Compliant

Product Description

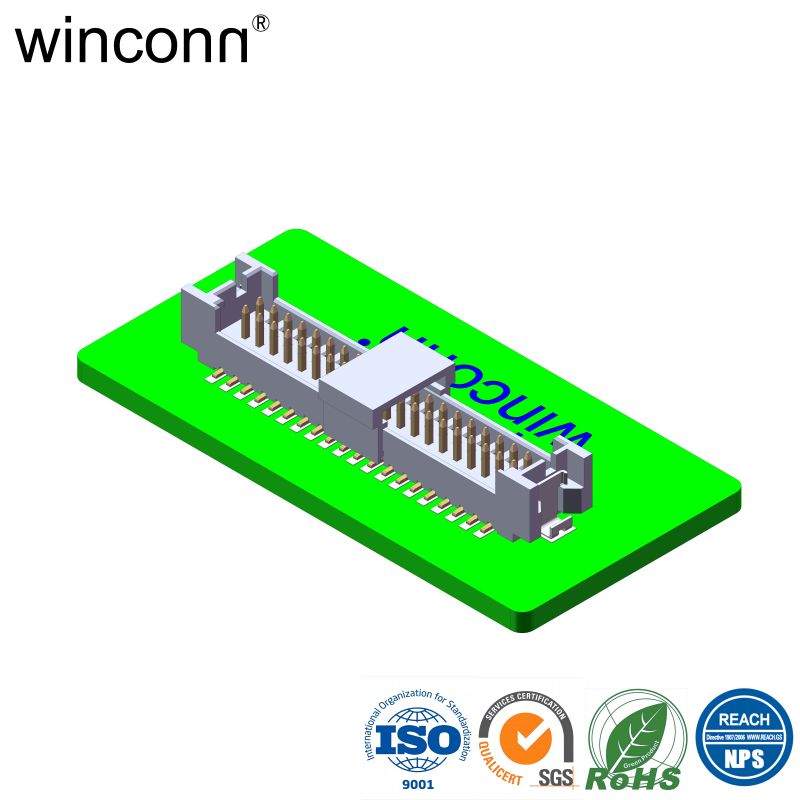

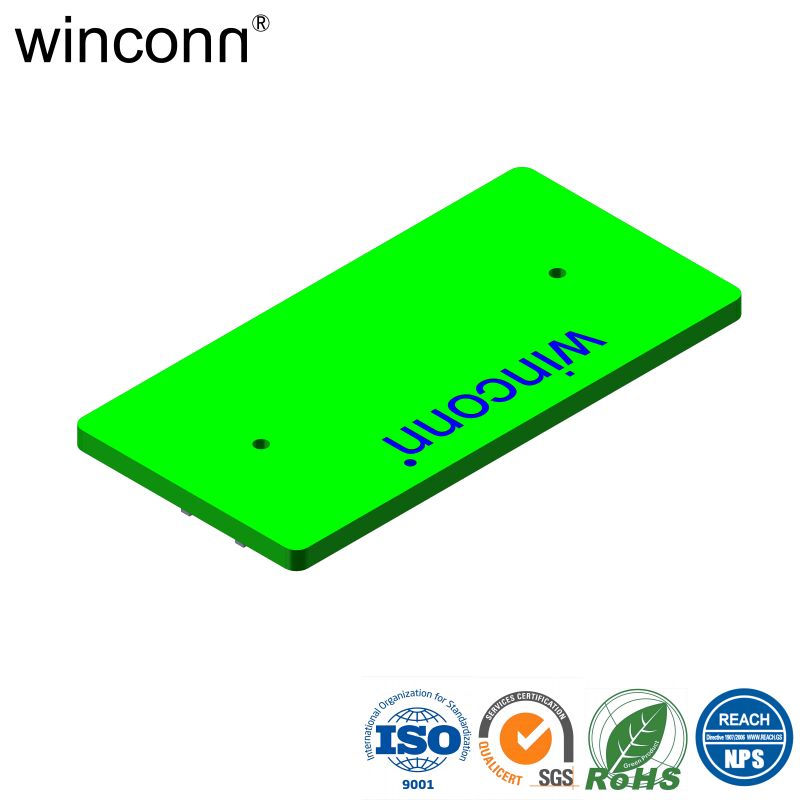

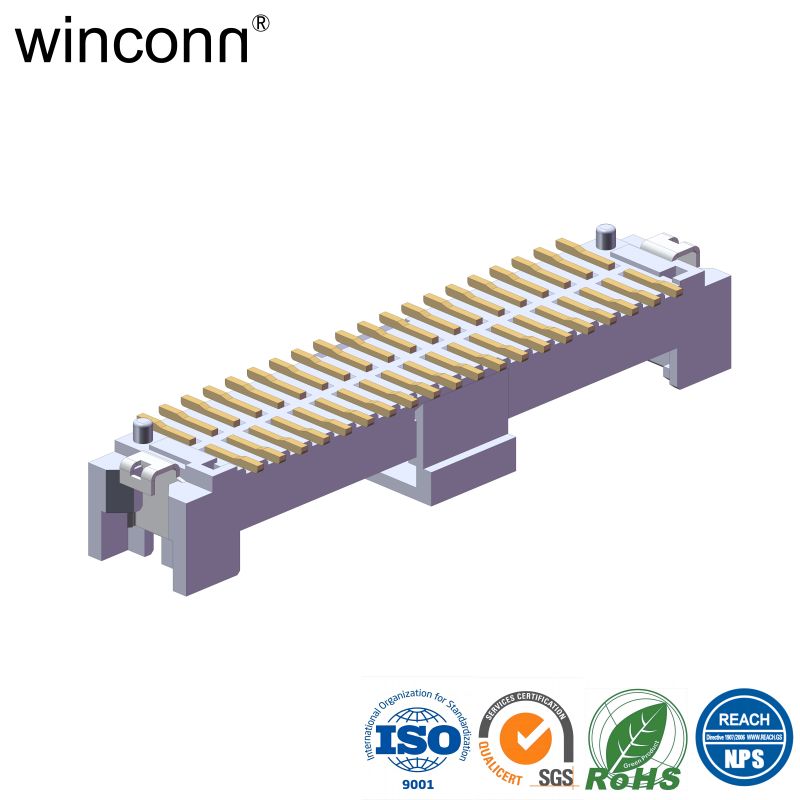

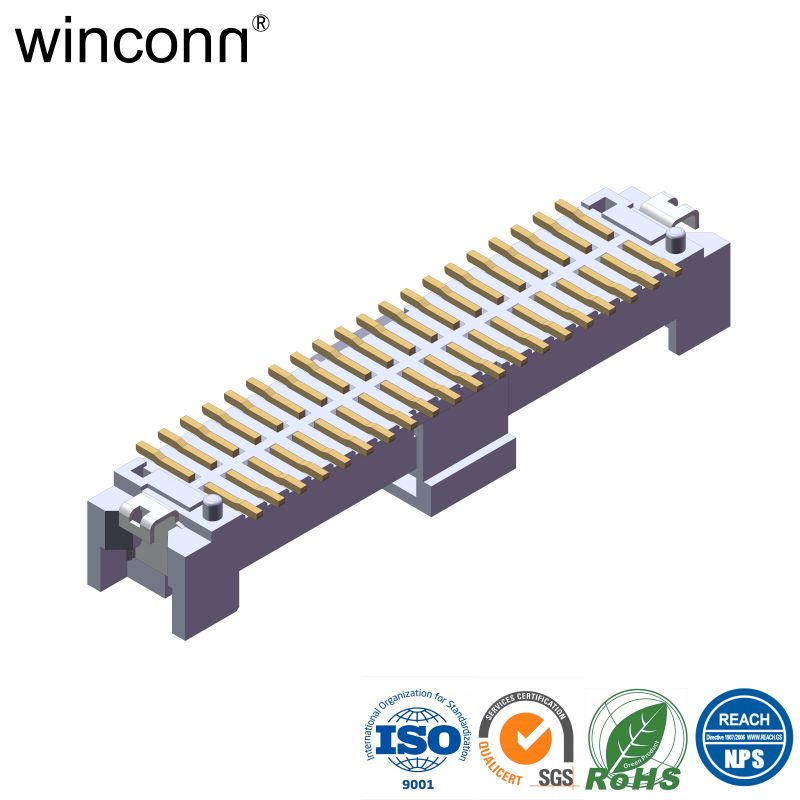

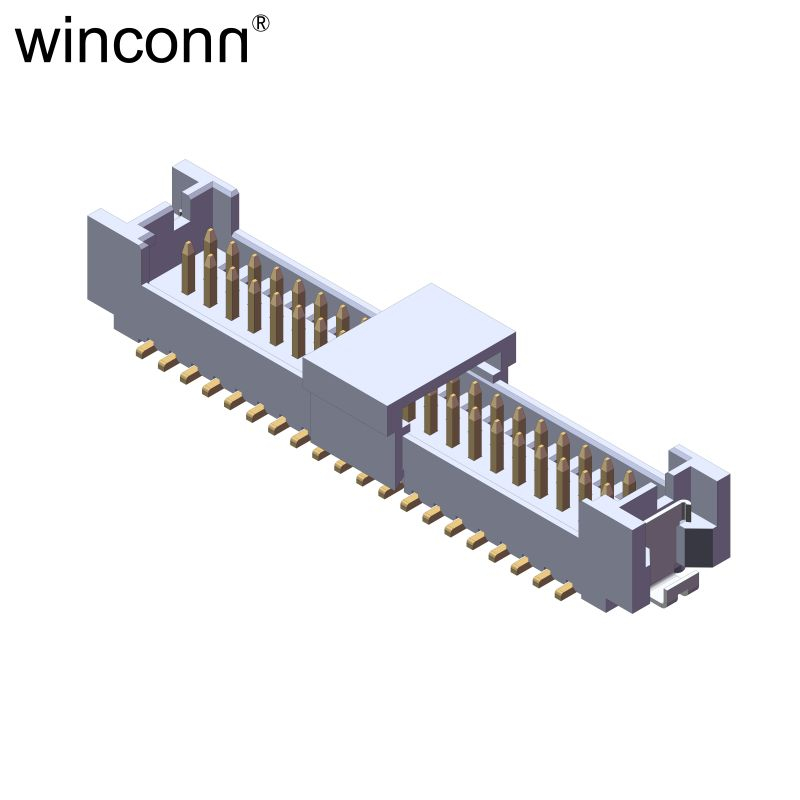

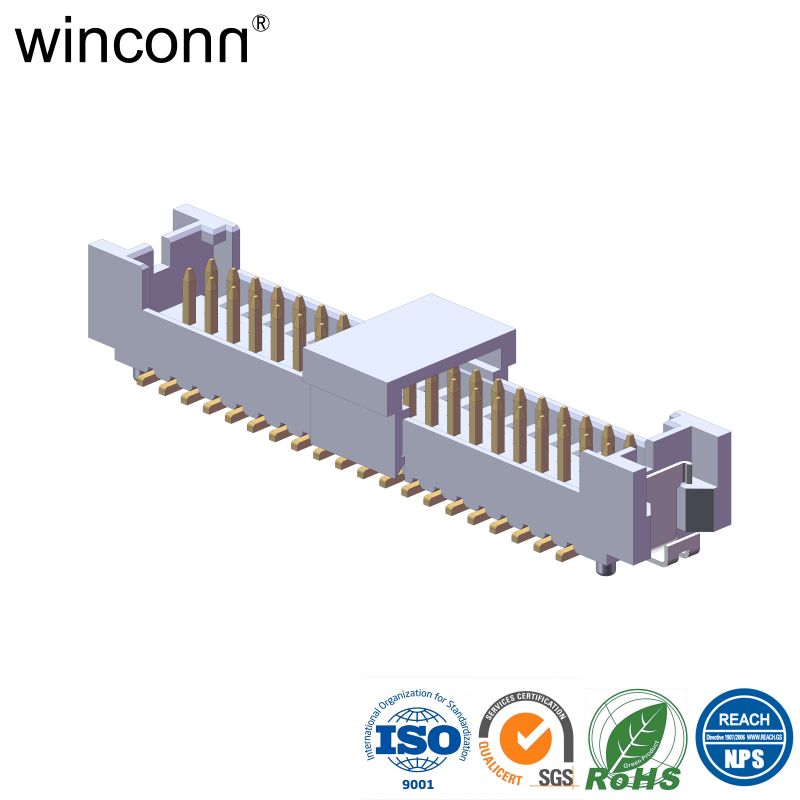

WTB 1.25mm Vertical SMT connector Alternative DF13E-40DP-1.25V (55)

SCT1252WV-S-F-2xXXP

NOTES:

1.MATERIAL:

HOUSING: NY9T+30%G/F,UL 94V-0

CONTACT: BRASS

2.FINISH: GOLD FLASH OVER 50m"MIN.NICKEL PLATED.

3.ELECTRICAL:

CONTACT RESISTANCE: 20 MILLIOHMS MAX.

INSULATION RESISTANCE: 500 MEGAOHMS MIN.

DIELECTRIC WITHSTANDING: 500V AC.

CURRENT RATING: 1A MAX.

VOLAGE RATING: 500V AC/DC MAX.

4.ENVIRONMENTAL: OPERATING TEMPERATURE: -25° TO +85°C.

2D Drawing
