WFH-8001-1XX-3GXB-XR
winconn

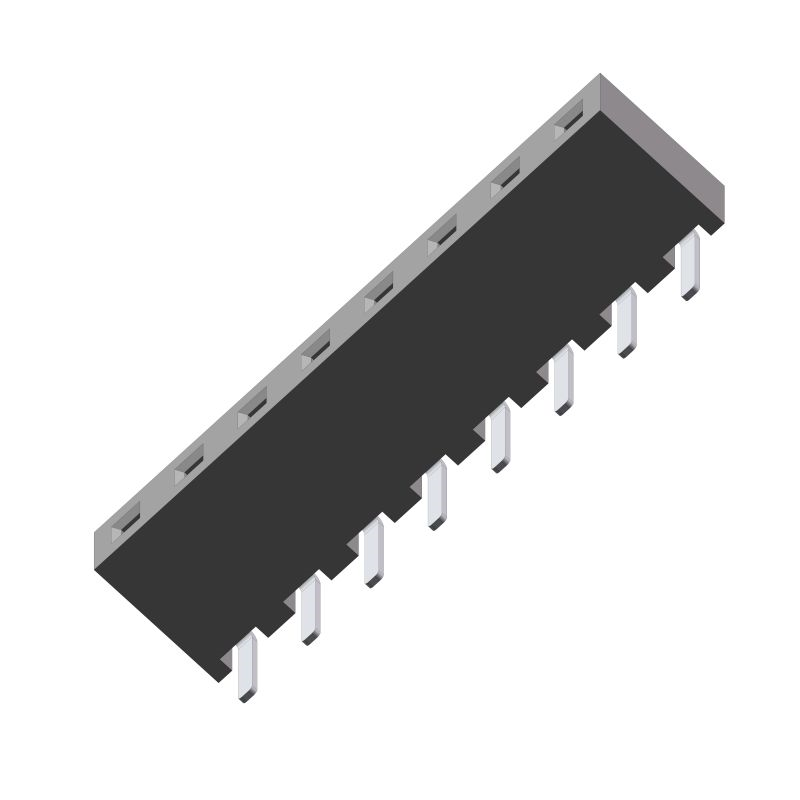

FEMALE HEADER 2.54mm SINGLE ROW RIGHT ANGLE DIP TYPE H=5.0
P/N: WFH-8001-1XX-3GXB-XR
Female Header Gold Plating
Female Header Tin Plating
Female Header Au Plating
Female Header Tin Plating
Female Header Gold Plated
Female Header Tin Plated
NOTE:
1. MATERIAL:
HOUSING: THERMOPLASTIC,HIGH TEMP, 30% G/F
UL 94V-0, COLOR:BLACK.
CONTACT: PHOSPHOR BRONZE OR BRASS.
2. FINISH:
CONTACT: AU PLATING OVER NI(50m" MIN.)
3.ELECTRICAL:
CONTACT RESISTANCE: 20mΩ Max.
INSULATION RESISTANCE: 1000MΩ Min.
DIELECTRIC WITHSTANDING VOLTAGE: 500V AC
CURRENT RATING: 3A
4.ENVIRONMENTAL:
OPERATING TEMPERATURE: -25°C TO +85°C
