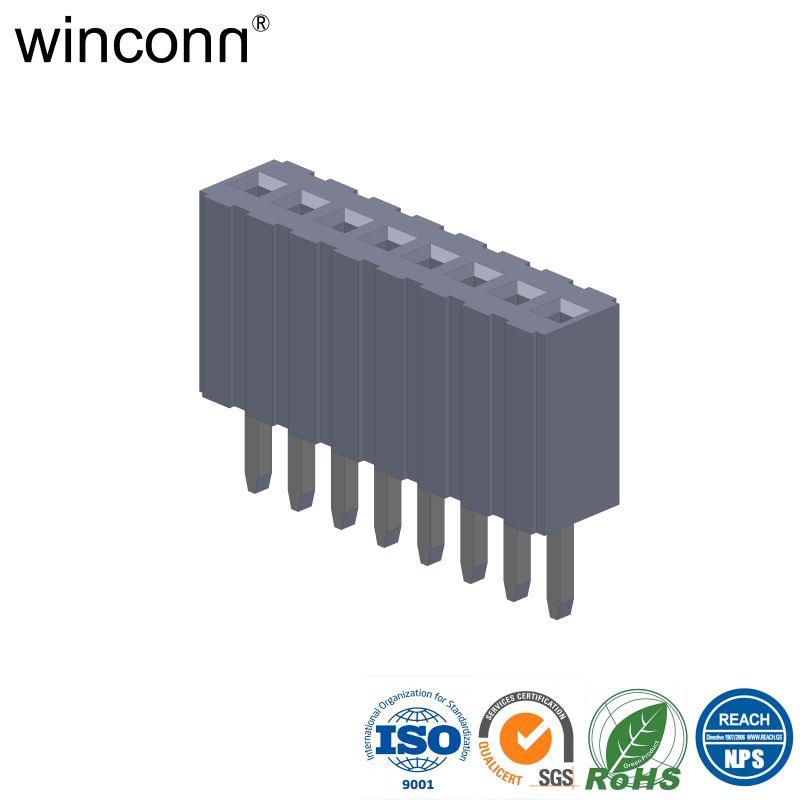

FEMALE HEADER 1.27mm SINGLE ROW STRAIGHT DIP TYPE H=4.6mm

P/N: WFH-6005-1XX-4GXB-XR
Packing: Bag/Tray/Tape Reel
Delivery time: 10~20 Days
RoHS/HF/GP Compliant
Availability:
  • WFH-6005-1XX-4GXB-XR

  • winconn

Product Description

FEMALE HEADER 1.27mm SINGLE ROW STRAIGHT DIP TYPE H=4.6mm

P/N: WFH-6005-1XX-4GXB-XR


NOTE:
1. MATERIAL:
  HOUSING: THERMOPLASTIC,HIGH TEMP, 30% G/F
                    UL 94V-0, COLOR:BLACK.
  CONTACT: PHOSPHOR BRONZE OR BRASS.
2. FINISH:
  CONTACT: AU PLATING OVER NI(50m" MIN.)
3.ELECTRICAL:
  CONTACT RESISTANCE: 20mΩ Max.
   INSULATION RESISTANCE: 1000MΩ Min.
  DIELECTRIC WITHSTANDING VOLTAGE: 500V AC
  CURRENT RATING: 1.0A
4.ENVIRONMENTAL:
  OPERATING TEMPERATURE: -25°C TO +85°C
  COMPLIANCE: RoHS or HF


WFH-6005-1XX-4GXB-XR_00

2D Drawing
