Customized Box Header PCB Mount Female Header Terminal

P/N: WFH-8009-2XX-4GXB-XR
Packing: Bag/Tray/Tape Reel
Delivery time: 10~20 Days
RoHS/HF/GP Compliant
Availability:
  • WFH-8009-2XX-4GXB-XR

  • winconn

Product Description

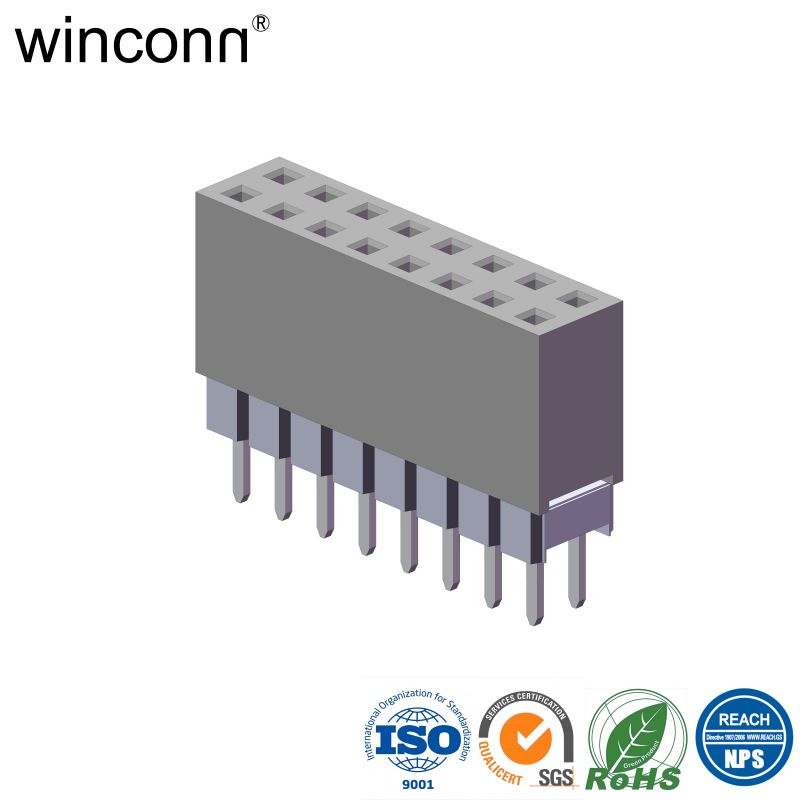

2.54mm FEMALE HEADER DOUBLE ROW STRAIGHT DIP TYPE H=11.0mm

P/N: WFH-8009-2XX-4GXB-XR


Female Header 8.5mm+2.5mm(PH Housing) Achieve the height of raised board to board to meet the height requirements of the customer,Reach the height of the board to meet the height requirements of customers, if the customer needs 13.5mm height of the board to the board, then the mother with 2.5mm high row of pins after the height of 13.5mm, so that you can achieve 13.5mm height.Of course, he can also be equipped with higher rows of needles to achieve a higher closing height, so that it can meet the higher closing height


Customized Box Header PCB Mount Female Header Terminal

Header PCB Mount Customized Box Female Header Terminal

PCB Mount Customized Header Box Female Header Terminal

Customized Header Box PCB Mount Female Header Terminal

Customized Header Box PCB Mount Terminal Female Header

Box PCB Mount Terminal Customized Header Female Header

PCB Mount Terminal Customized Header Box Female Header



NOTE:

1. MATERIAL:

     HOUSING: THERMOPLASTIC,HIGH TEMP, 30% G/F

                  UL 94V-0, COLOR:BLACK.

     CONTACT: PHOSPHOR BRONZE OR BRASS.


2. FINISH:

     CONTACT: AU PLATING OVER NI(50m" MIN.)


3.ELECTRICAL:

     CONTACT RESISTANCE: 20mΩ Max.

     INSULATION RESISTANCE: 1000MΩ Min.

     DIELECTRIC WITHSTANDING VOLTAGE: 500V AC

     CURRENT RATING: 3A


4.ENVIRONMENTAL:

     OPERATING TEMPERATURE: -40°C TO +105°C
