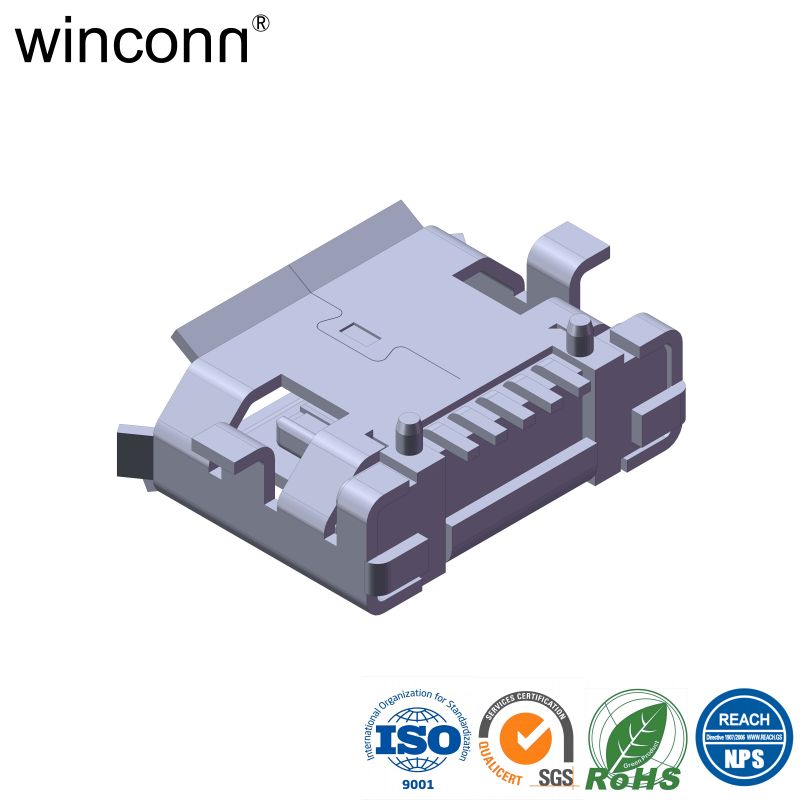

AB Type Mounting Flange connector Micro USB

P/N: US-1040-1GNB-RR
Packing: Bag/Tray/Tape Reel
Delivery time: 10~20 Days
RoHS/HF/GP Compliant
Availability:
  • US-1040-1GNB-RR

  • winconn

Product Description

AB Type Mounting Flange connector Micro USB

P/N: US-1040-1GNB-RR


AB Type Mounting Flange connector Micro USB

Mounting Flange connector AB Type Micro USB

Flange connector AB Type Mounting Micro USB

connector AB Type Mounting Flange Micro USB

AB Type Mounting Flange Micro USB connector

Mounting Flange AB Type Micro USB connector

Flange AB Type Mounting Micro USB connector

Micro USB connector AB Type Mounting Flange

Micro USB AB Type Mounting Flange connector

Micro USB Mounting Flange AB Type connector


Note:

1.Material:

1.1 Housing: LCP-Black,UL94v-0

1.2 Contact: C5191R-EH,t=0.20mm,

Gold flash plated on solder tails under Ni plated

1.3 Shell: C2680,t=0.25mm,

Matte Ti plating overall under Ni plated

2.Specification:

2.1 Current rating:1,5PIN 1.8A Max/2,3,4PIN 1A Max.

2.2 Dielectric withstanding

voltage: 100 V(ac) for 1 min.

2.3 Contact resistance: 30 mΩ Max.

2.4 Insulation resistance: 100 MΩ Min.

2.5 Total mating force: 3.57 Kgf Max.

2.6 Total unmating force: 1.0 Kgf Min.

2.7 Temperature range: -40°C~85°C



US-1040-1GNB-RR_00

2D Drawing
