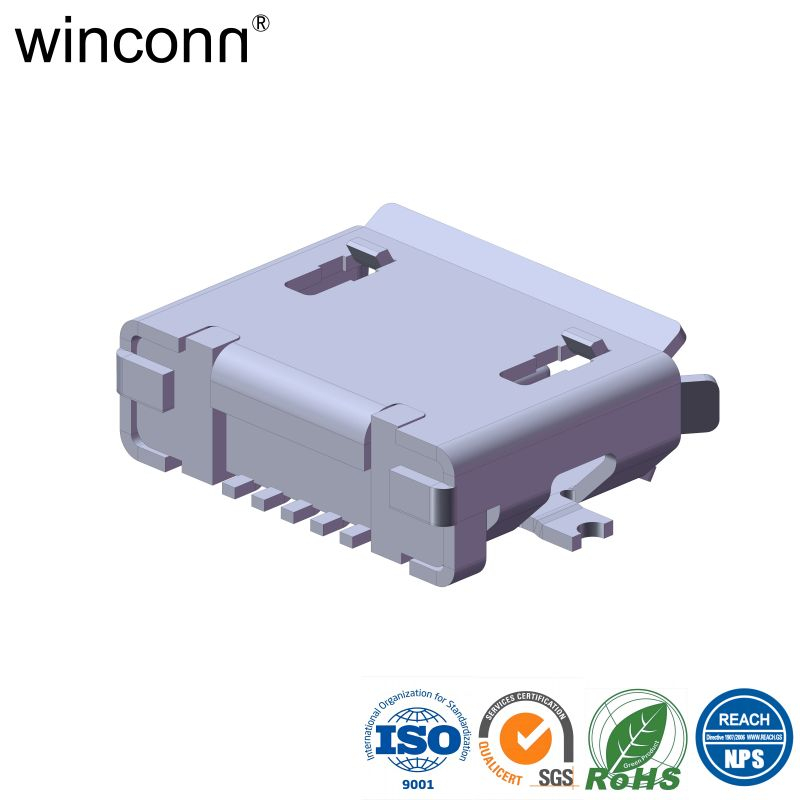

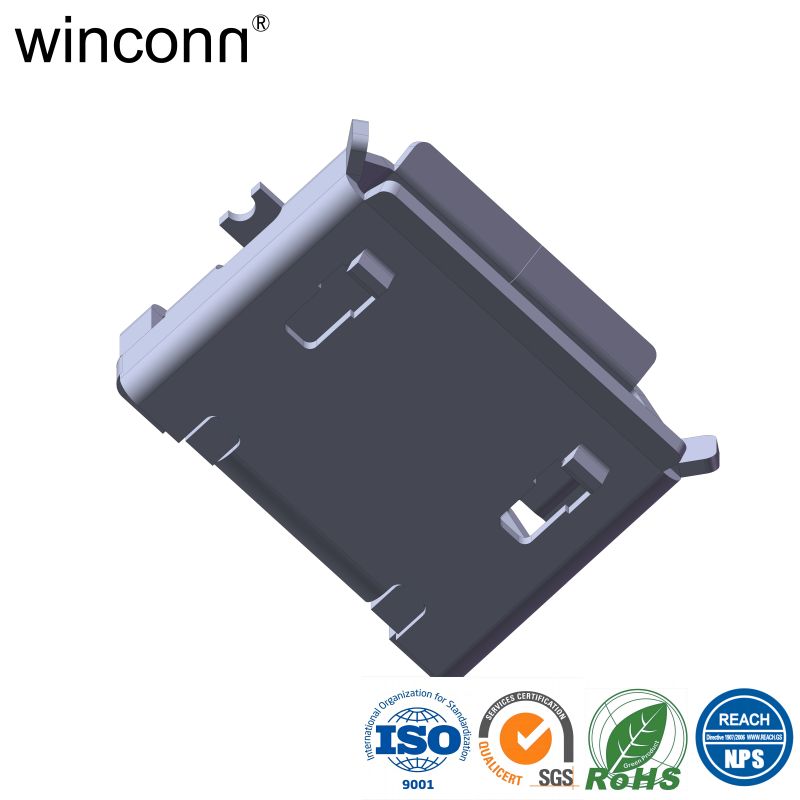

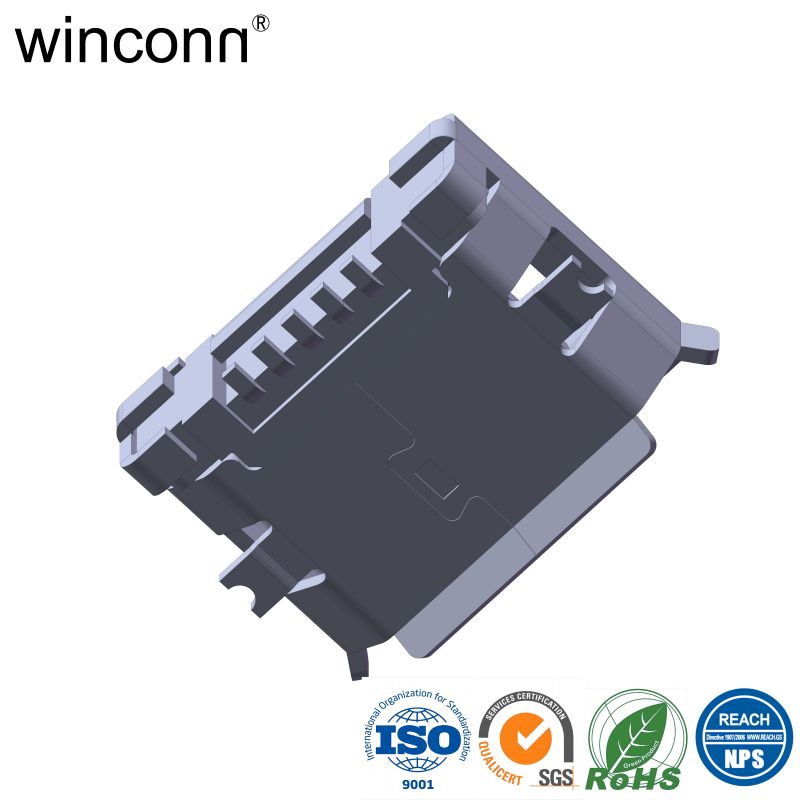

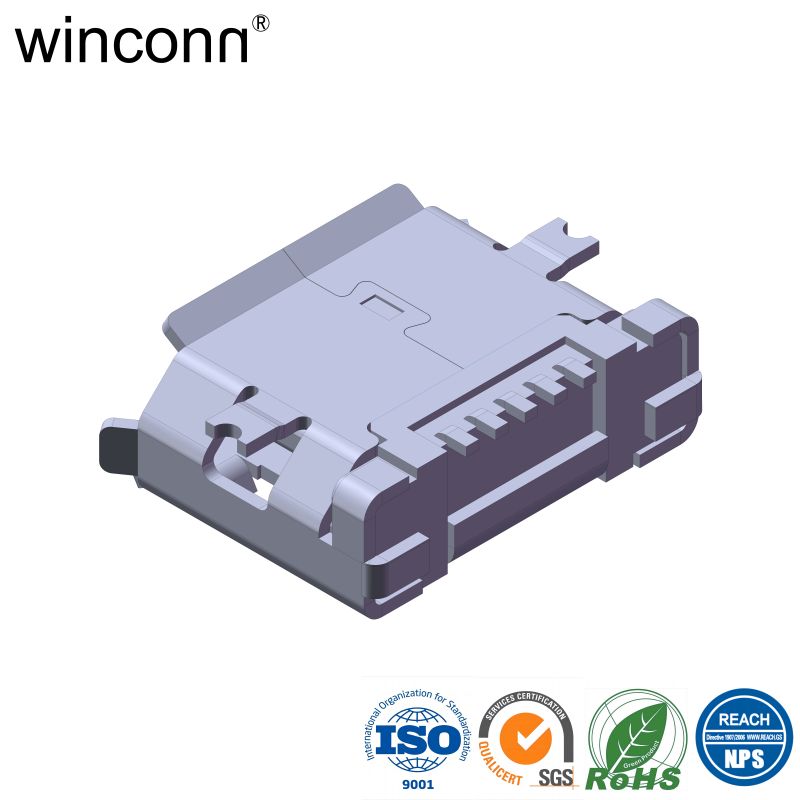

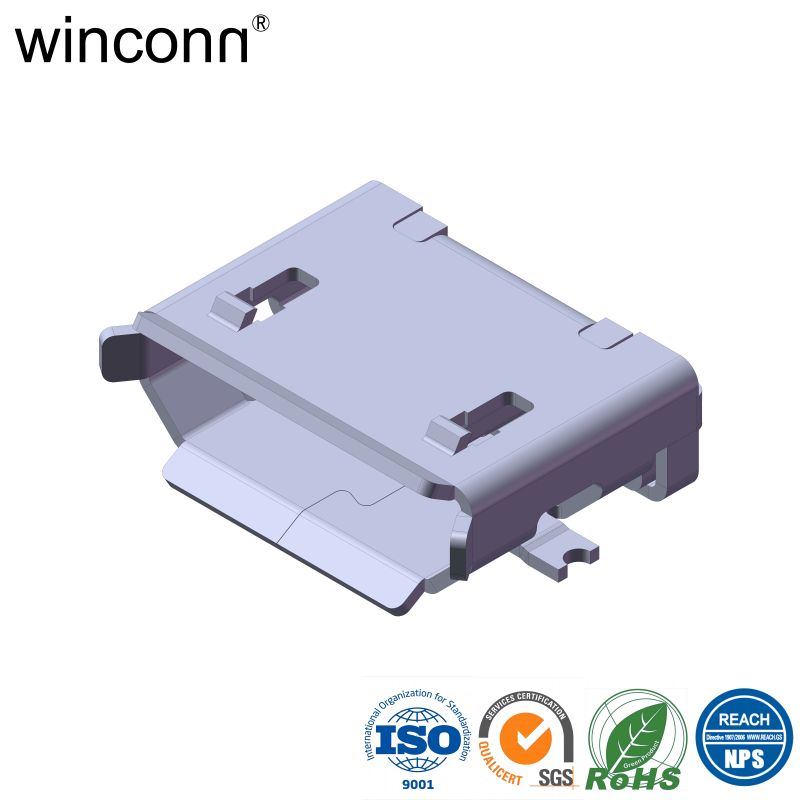

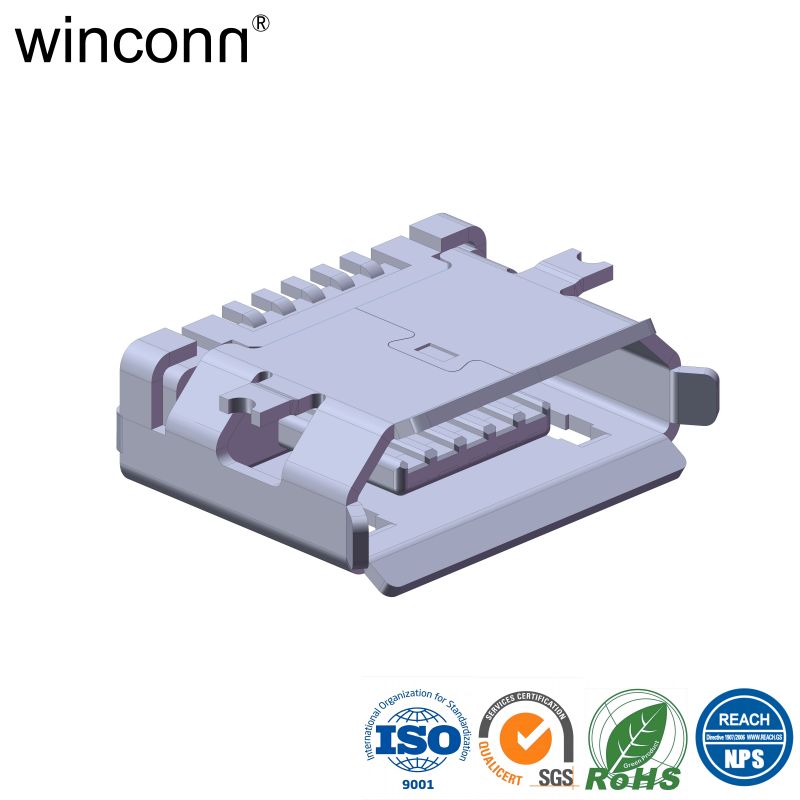

USB 10Gbps Vertical Mounting Style micro USB connector

Note:

1.Material:

1.1 Housing: LCP-Black,UL94v-0

1.2 Contact: C5191R-EH,t=0.20mm,

Gold flash plated on solder tails under Ni plated

1.3 Shell: C2680,t=0.25mm,

Matte Ti plating overall under Ni plated

2.Specification:

2.1 Current rating:1,5PIN 1.8A Max/2,3,4PIN 1A Max.

2.2 Dielectric withstanding

voltage: 100 V(ac) for 1 min.

2.3 Contact resistance: 30 mΩ Max.

2.4 Insulation resistance: 100 MΩ Min.

2.5 Total mating force: 3.57 Kgf Max.

2.6 Total unmating force: 1.0 Kgf Min.

2.7 Temperature range: -40°C~85°C
