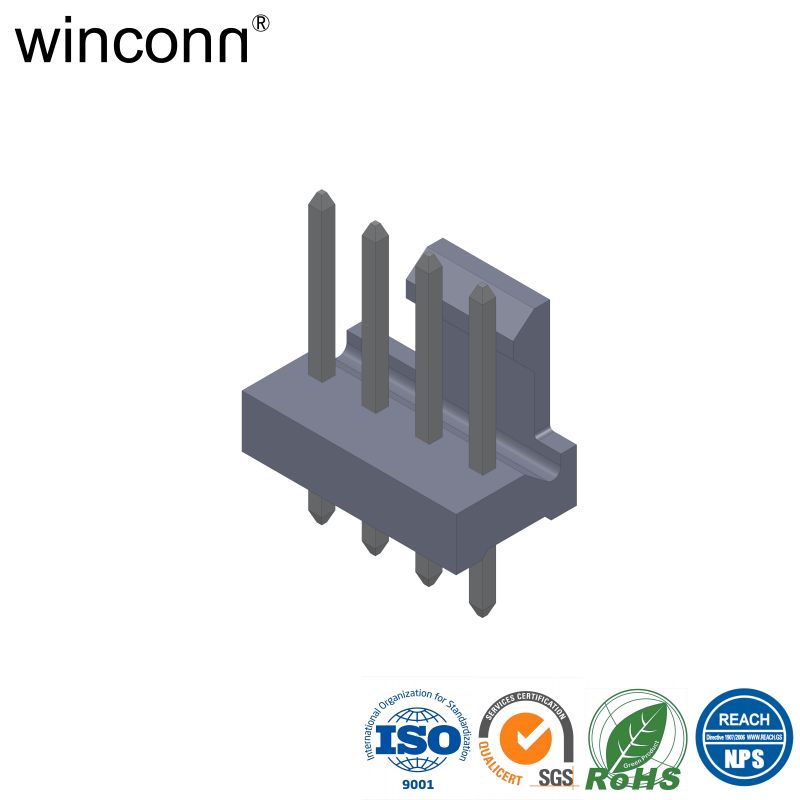

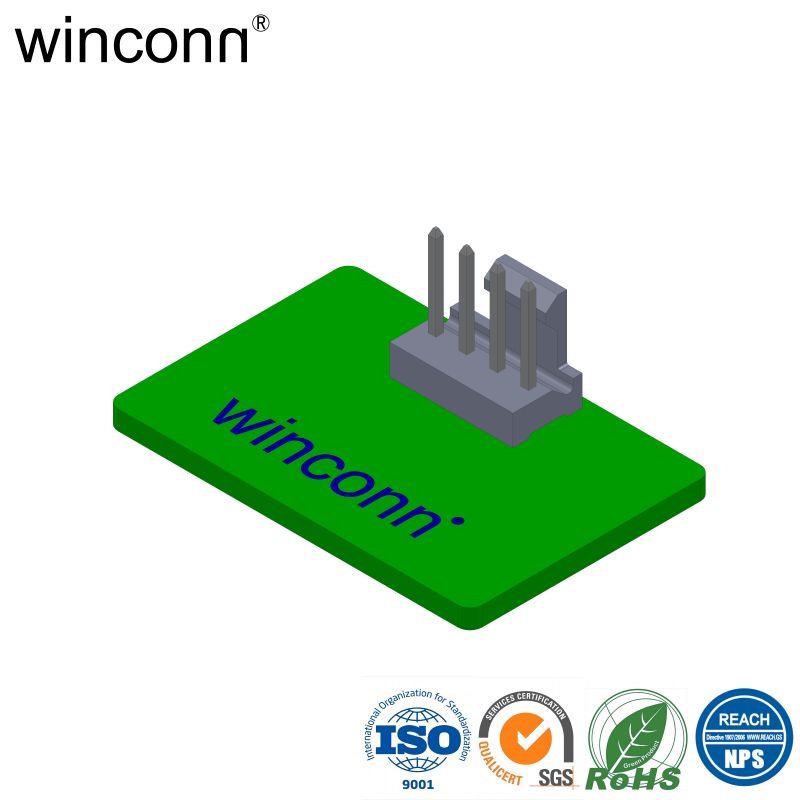

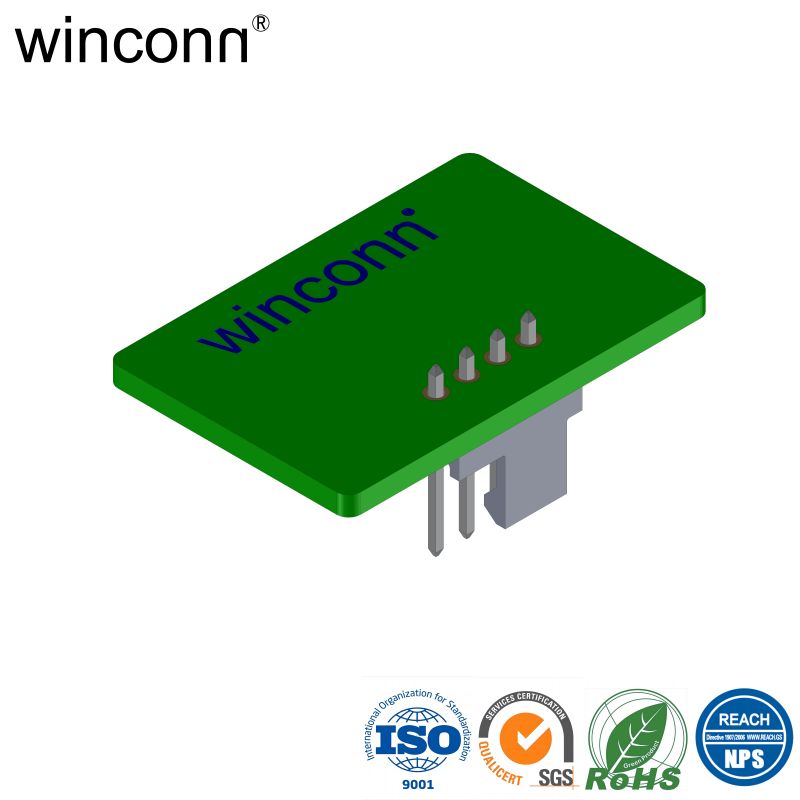

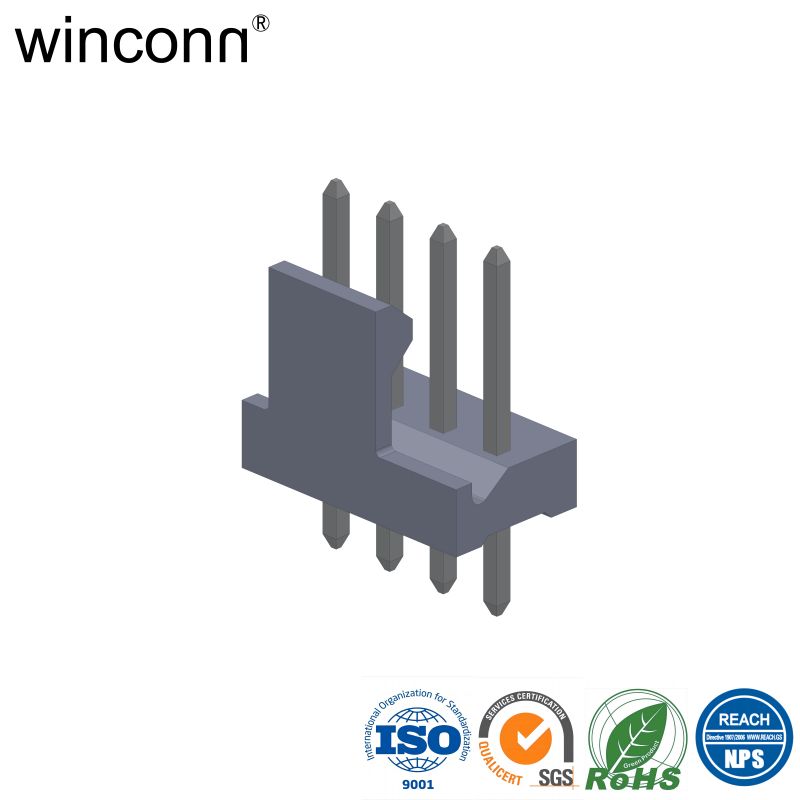

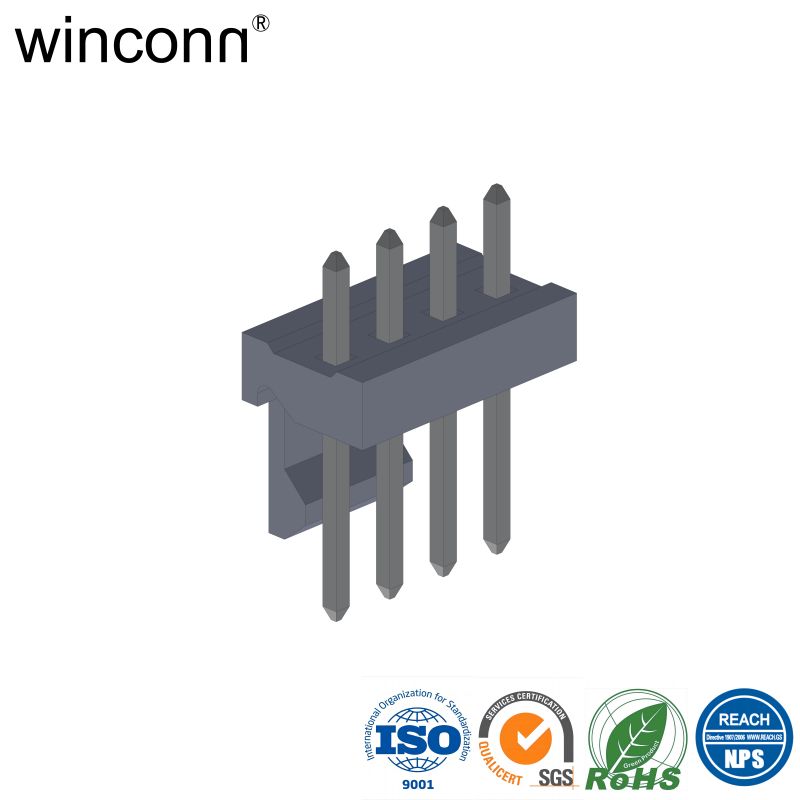

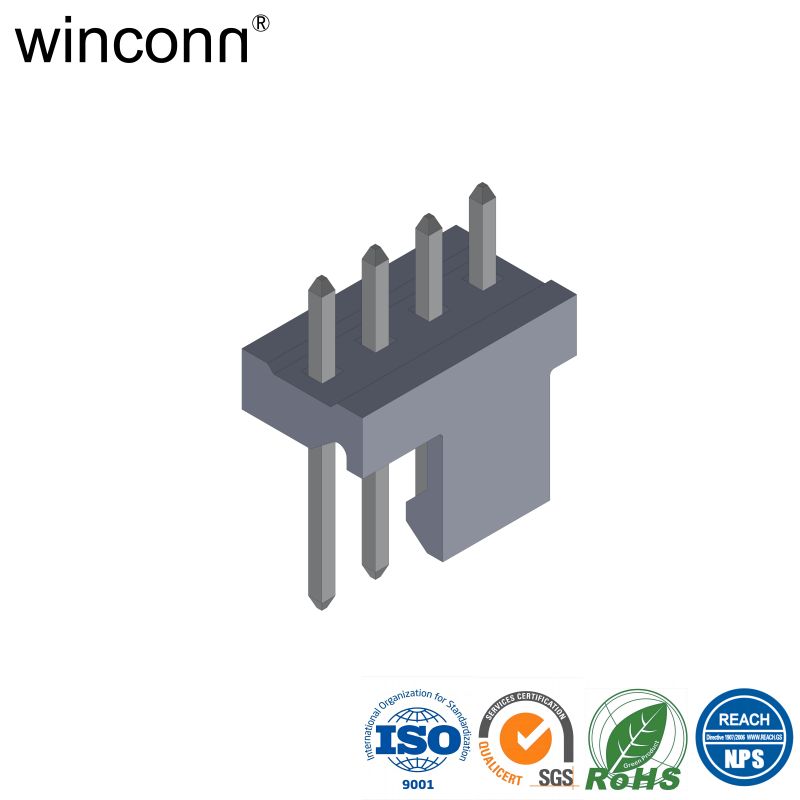

WA-1003-04-4T11-BR
winconn
NOTES:
1.MATERIAL:
HOUSING: NY6T+30%G/F,UL 94V-0
CONTACT: BRASS
2.FINISH: 100m"MIN. TIN OVER 50m"MIN.NICKEL PLATED.
3.ELECTRICAL:
CONTACT RESISTANCE: 40 MILLIOHMS MAX.
INSULATION RESISTANCE: 1000 MEGAOHMS MIN.
DIELECTRIC WITHSTANDING: 500V AC.
CURRENT RATING: 2.5A MAX.
VOLAGE RATING: 500V AC/DC MAX.
4.ENVIRONMENTAL: OPERATING TEMPERATURE: -40° TO +85°C.
