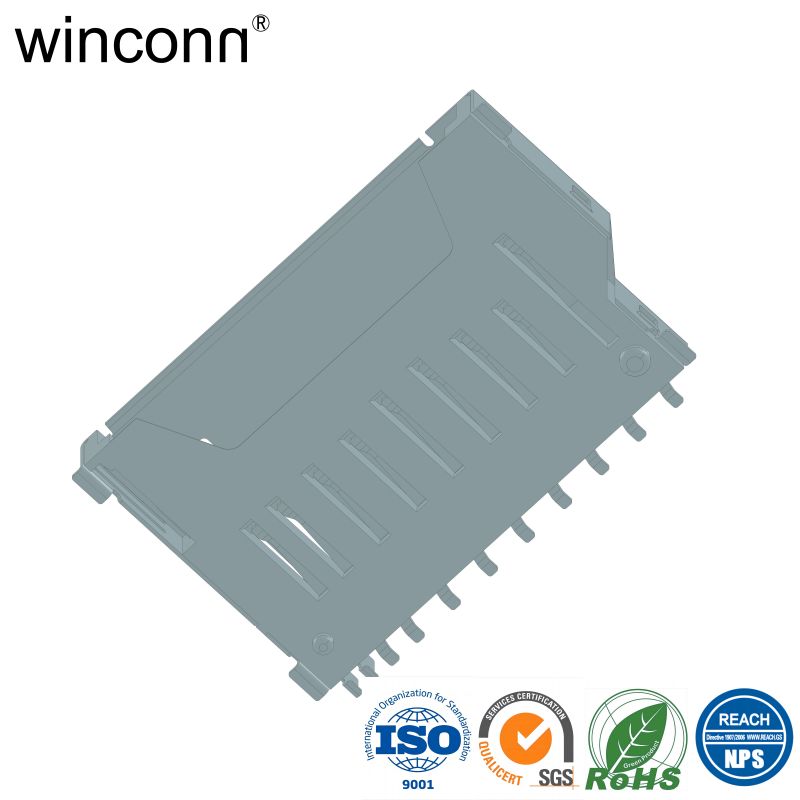

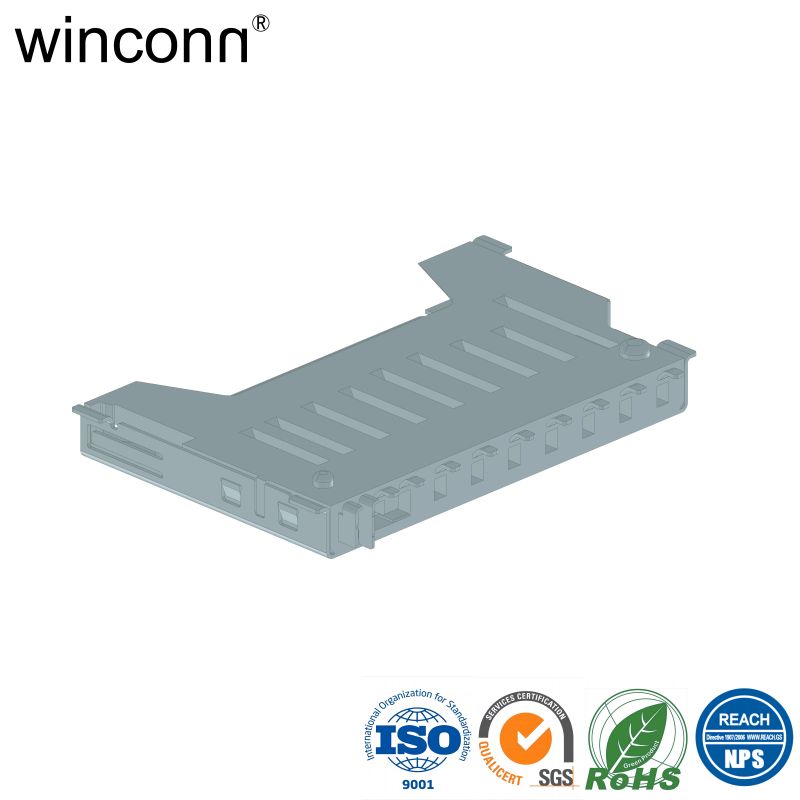

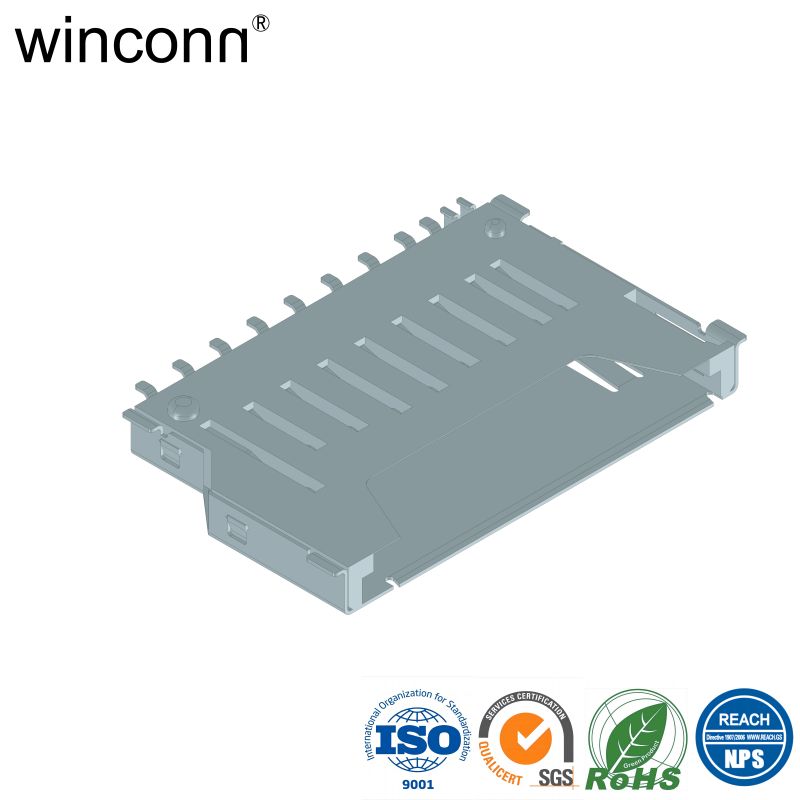

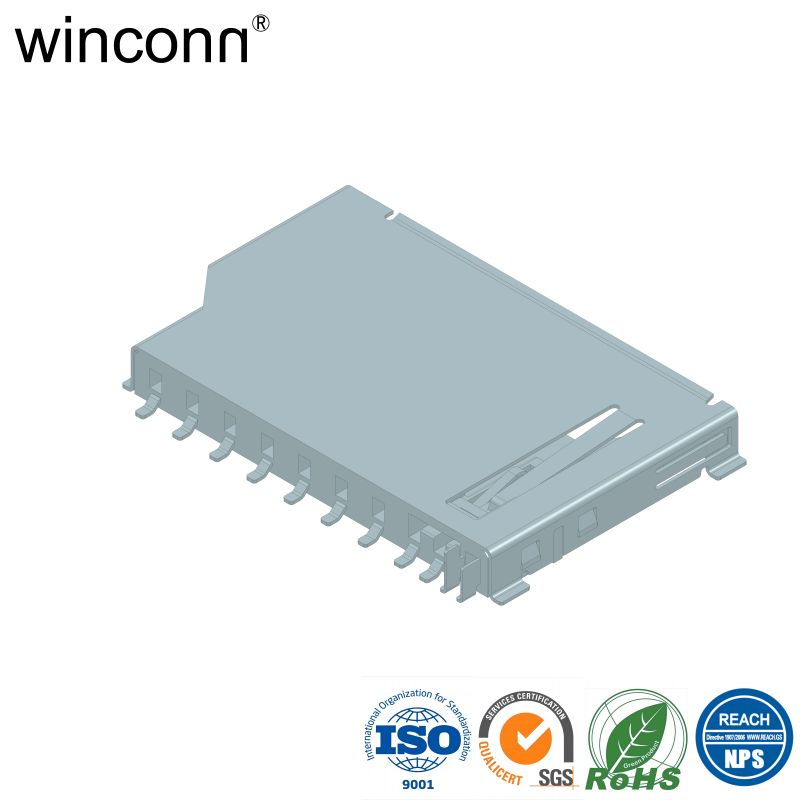

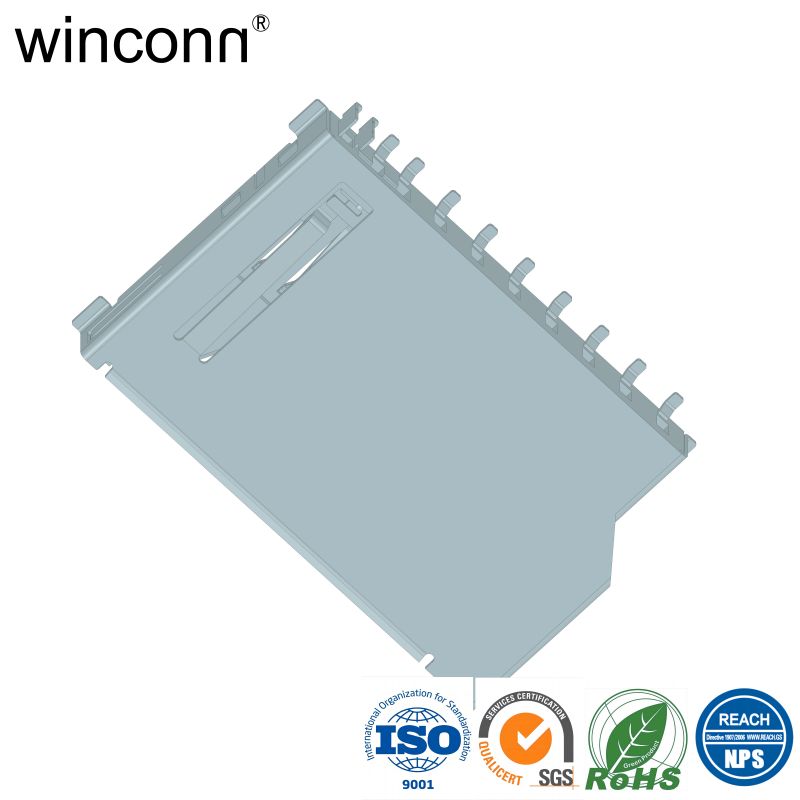

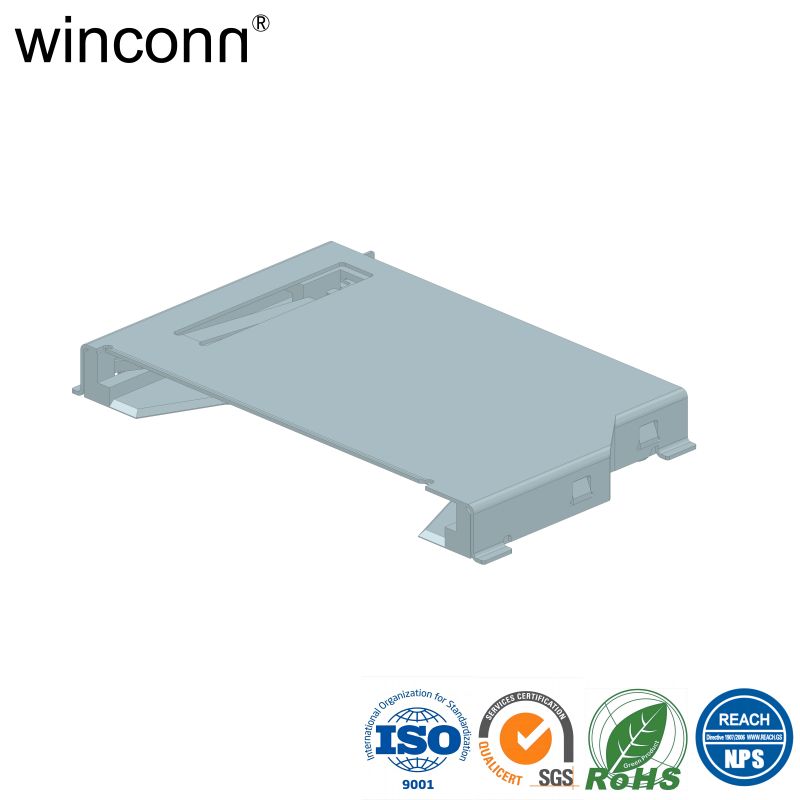

SD-6001-1XNX-RR
winconn
SD Short Type
P/N: SD-6001-1XNX-RR
SPECIFICATION
1.ELECTRICAL CHARACTERISTIES:
CONTACT CURRENT RATING:0.5 AMPERES.
DIELECTRIC WITHSTANDING VOLTAGE:AC500VR.M.S.
LLNSULATION RESISTANTE:1000mΩ MINIMUM.
CONTACT RESISTANTE:40MΩ MAXIMUM.
2.ENVIRONMENTAL:
OPERATING TEMPERATURE:-20℃~+85℃.
3.MATERIAL:
HOUSING:H1-TEMP PLASTIC LCP UL 94V-O RATED
CANTACT:COPPER ALLOY(T=0.20MM).
SHELL:COPPER ALLOY(T=0.20MM).
