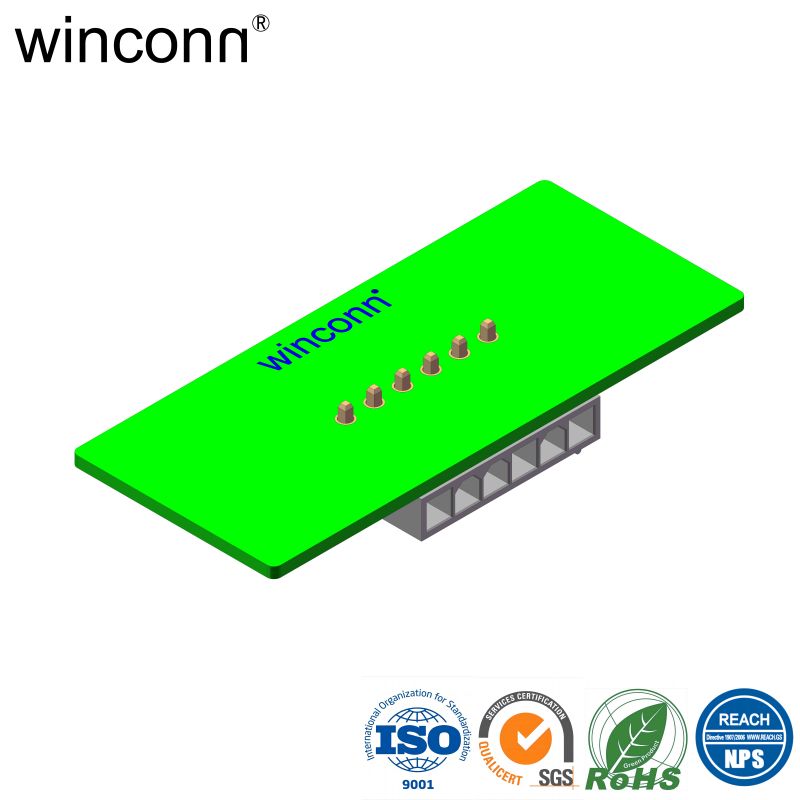

WAT-8006-1XX-3TXB-XR
winconn
Mini Fit Pitch 4.20mm Single Row Right Angle DIP Type
P/N: WAT-8006-1XX-3TXB-XR
Right Angle DIP Washing machine Mini-Fit Max Socket
DIP Washing machine Right Angle Mini-Fit Max Socket
Washing machine Right Angle DIP Mini-Fit Max Socket
Right Angle DIP Washing machine Max Mini-Fit Socket
Right Angle DIP Washing machine Max Socket Mini-Fit
DIP Washing machine Max Socket Right Angle Mini-Fit
Washing machine Max Socket Right Angle DIP Mini-Fit
Max Socket Right Angle DIP Washing machine Mini-Fit
Socket Right Angle DIP Washing machine Max Mini-Fit
Mini-Fit Socket Right Angle DIP Washing machine Max
1.MATERIAL:
HOUSING: THERMOPLASTIC,HIGH TEMP, 30% G/F,UL 94V-0.
CONTACTS: BRASS.
2.PLATING
CONTACTS: 100m" MIN. TIN OVER 50m" MIN.
NICKEL UNDER PLATING OVERALL.
3.ELECTRICAL:
CONTACT RESISTANCE: 20 mΩ MAX.
INSULATION RESISTANCE: 1000 MΩ MIN.
DIELECTRIC WITHSTANDING: 1500V AC
VOLAGE RATING: 250V AC/DC MAX.
CURRENT RATING:
AWG#16 : 9 Amperes (per pin)
AWG#18 : 9 Amperes (per pin)
AWG#20 : 7 Amperes (per pin)
AWG#22 : 5 Amperes (per pin)
AWG#24 : 4 Amperes (per pin)
AWG#26 : 3 Amperes (per pin)
AWG#28 : 2 Amperes (per pin)
4.ENVIRONMENTAL: OPERATING TEMPERATURE: -25°C TO +85°C
