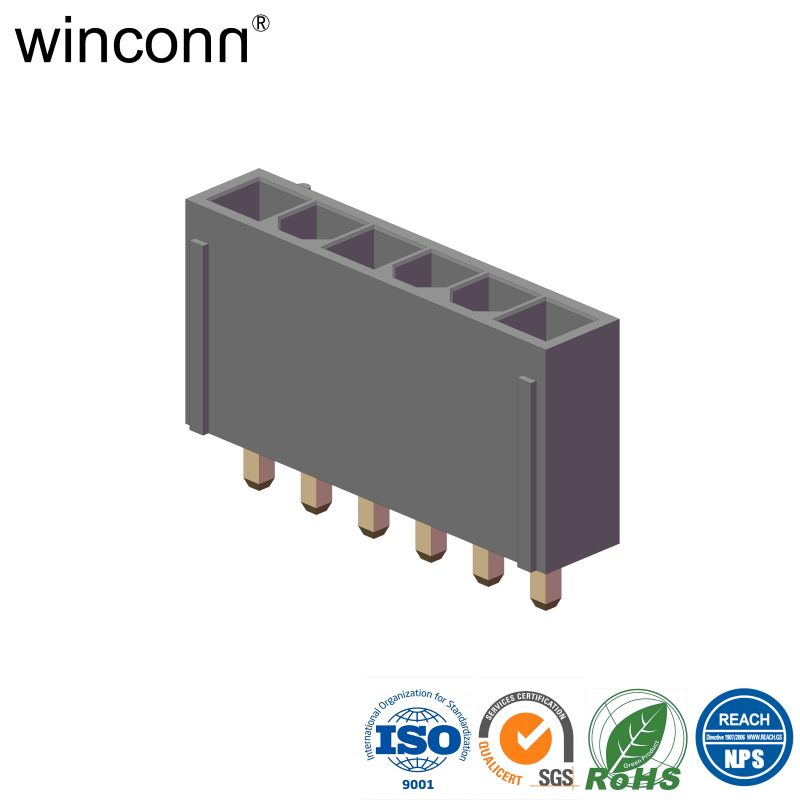

Mini Fit ATX Pitch 4.20mm Single Row Straight DIP Type

P/N: WAT-8006-1XX-4TXB-XR
Packing: Bag/Tray/Tape Reel
Delivery time: 10~20 Days
RoHS/HF/GP Compliant
Availability:
  • WAT-8006-1XX-4TXB-XR

  • winconn

Product Description

Mini Fit Pitch 4.20mm Single Row Straight DIP Type

P/N: WAT-8006-1XX-4TXB-XR


1.MATERIAL:
 HOUSING: THERMOPLASTIC,HIGH TEMP, 30% G/F,UL 94V-0.
 CONTACTS: BRASS.
2.PLATING
 CONTACTS: 100m" MIN. TIN OVER 50m" MIN.
            NICKEL UNDER PLATING OVERALL.
3.ELECTRICAL:
 CONTACT RESISTANCE: 20 mΩ MAX.
 INSULATION RESISTANCE: 1000 MΩ MIN.
 DIELECTRIC WITHSTANDING: 1500V AC
 VOLAGE RATING: 250V AC/DC MAX.
 CURRENT RATING:
  AWG#16 : 9 Amperes (per pin)
  AWG#18 : 9 Amperes (per pin)
  AWG#20 : 7 Amperes (per pin)
  AWG#22 : 5 Amperes (per pin)
  AWG#24 : 4 Amperes (per pin)
  AWG#26 : 3 Amperes (per pin)
  AWG#28 : 2 Amperes (per pin)
4.ENVIRONMENTAL: OPERATING TEMPERATURE: -25°C TO +85°C
