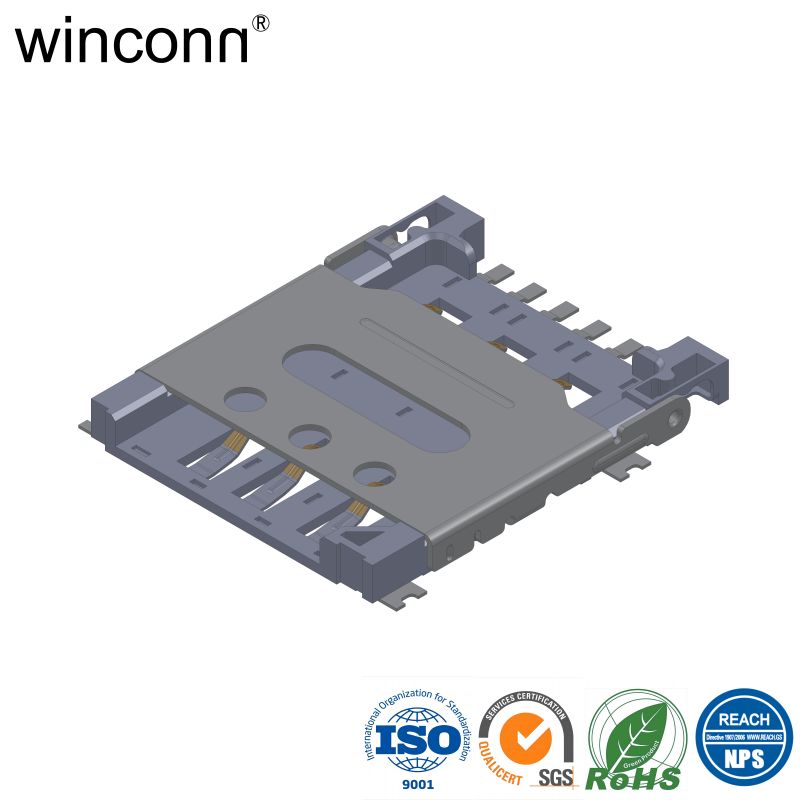

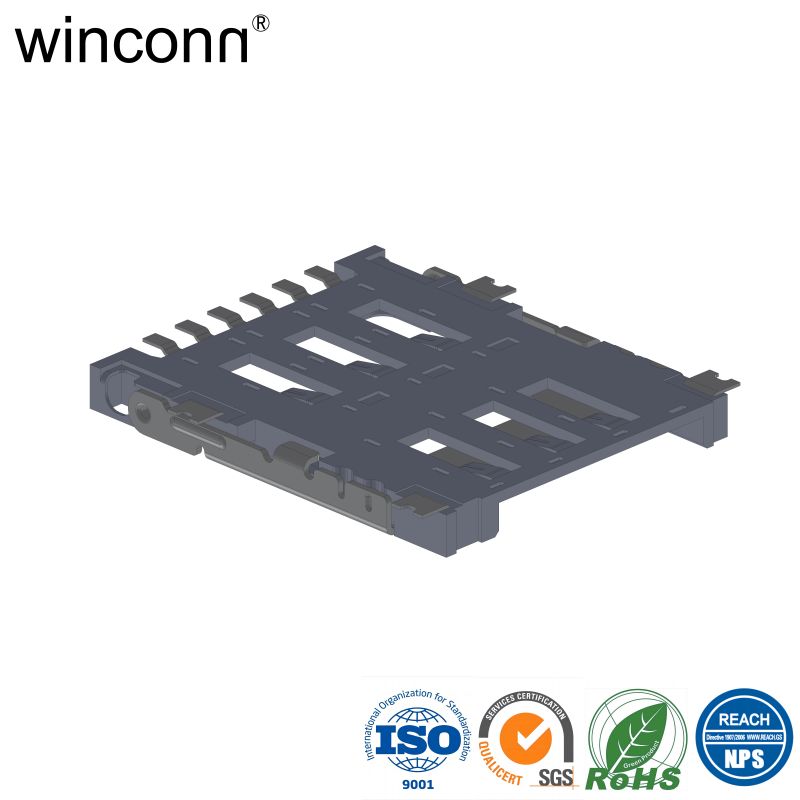

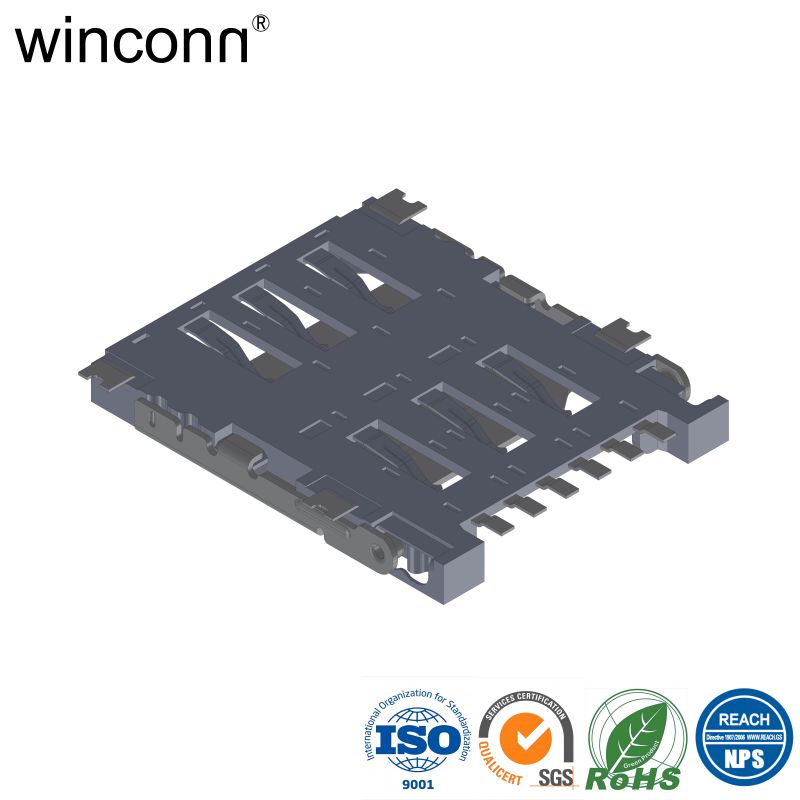

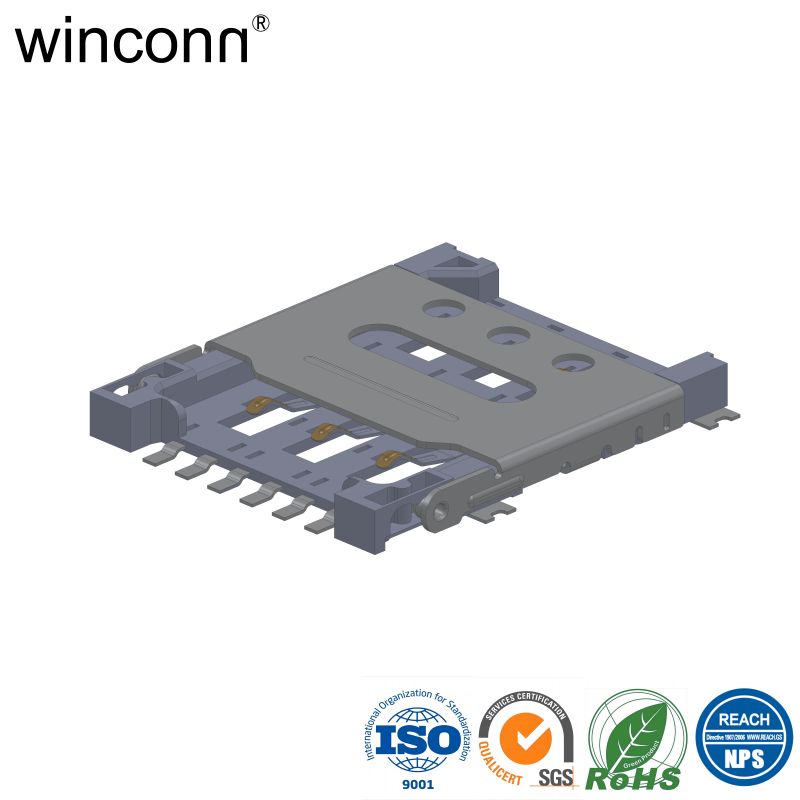

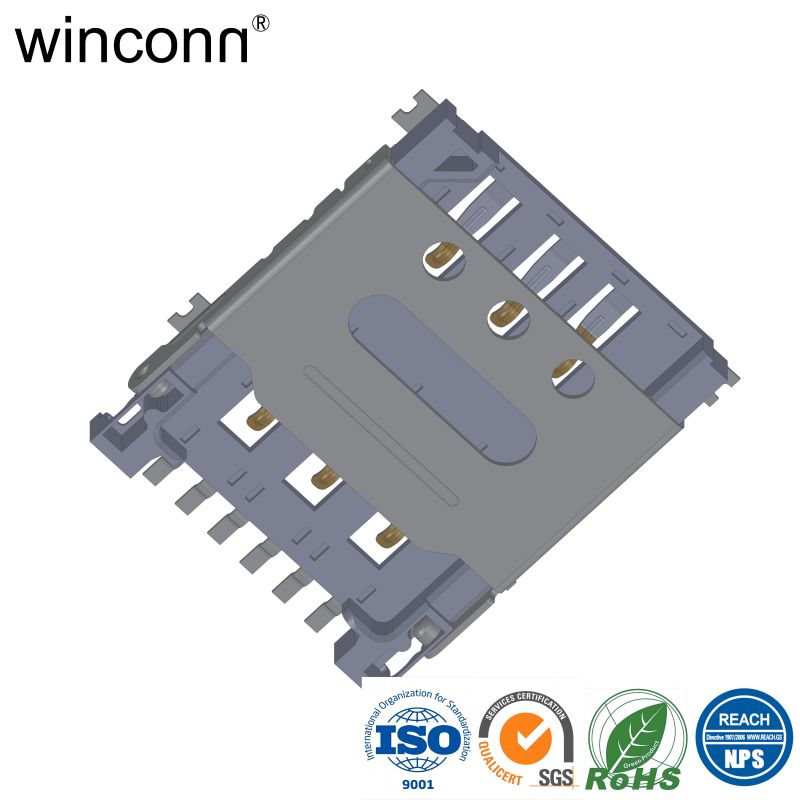

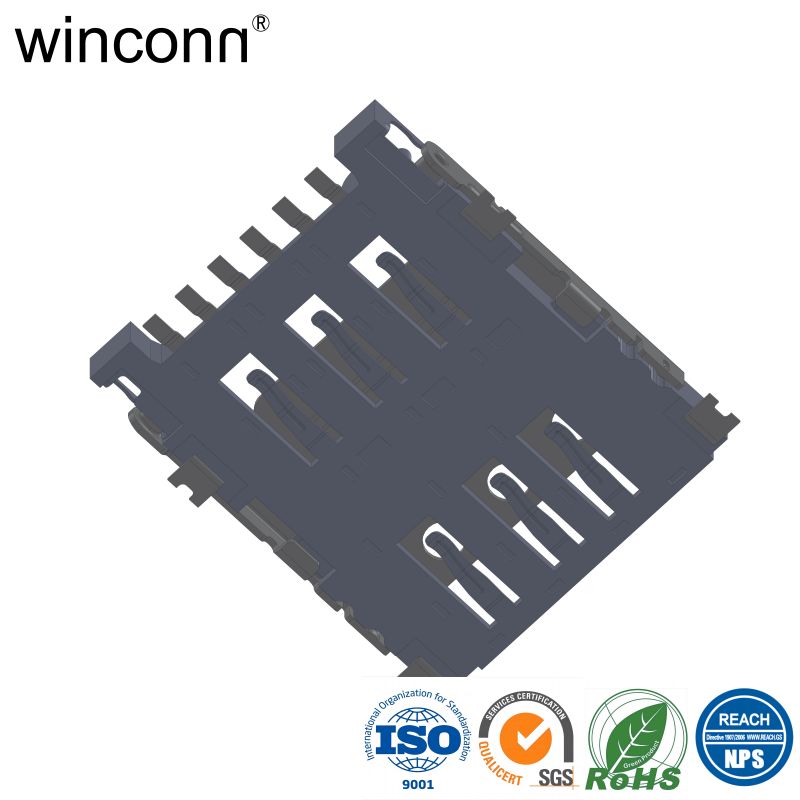

Nano SIM 6P 8P SMT mobile phone connector

NANO SIM 6PIN 1.4H

P/N: SM-3003-1X0B-RR

NOTES:

1. MATERIAL:

1.1 Housing:High Temperature Thermoplastic

UL94V-0; Color Black.

1.2 Terminal:Copper Alloy,T=0.12mm.

1.3 Shell:Stainless Steel,T=0.20mm.

2. FINISH:

2.1 Terminal:Plated Gold on the Contact Area

and Solder Tails

2.2 Peg:Plated Gold on the Solder Tails.

3. SPECIALITY:

3.1 Rated current:0.5A

3.2 Rated voltage:50V

3.3 Contact Resistance:80mΩ MAX

3.4 Insulation Resistance:100MΩMIN 100V DC

3.5 Dielectric withstanding voltage: 100V AC.

3.6 Solder ability:245±5°C,5±0.5s.

3.7 Operating condition:Temperature: -30°C~+80°C

Humidity: 80% R.H MAX
