P/N: B5081AWV-XXP
Packing: Bag/Tray/Tape Reel
Delivery time: 10~20 Days
RoHS/HF/GP Compliant

Product Description

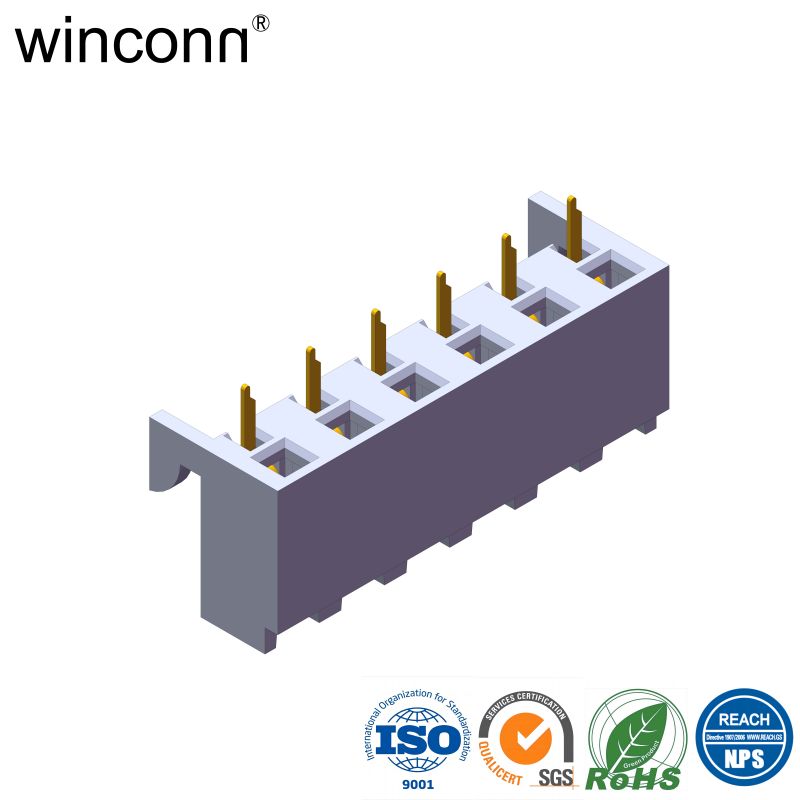

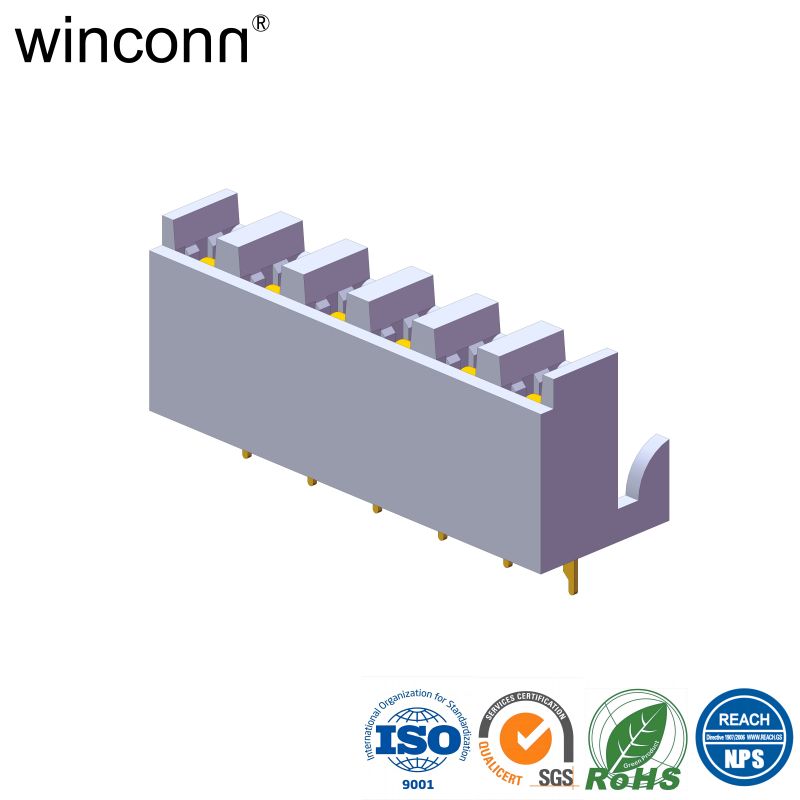

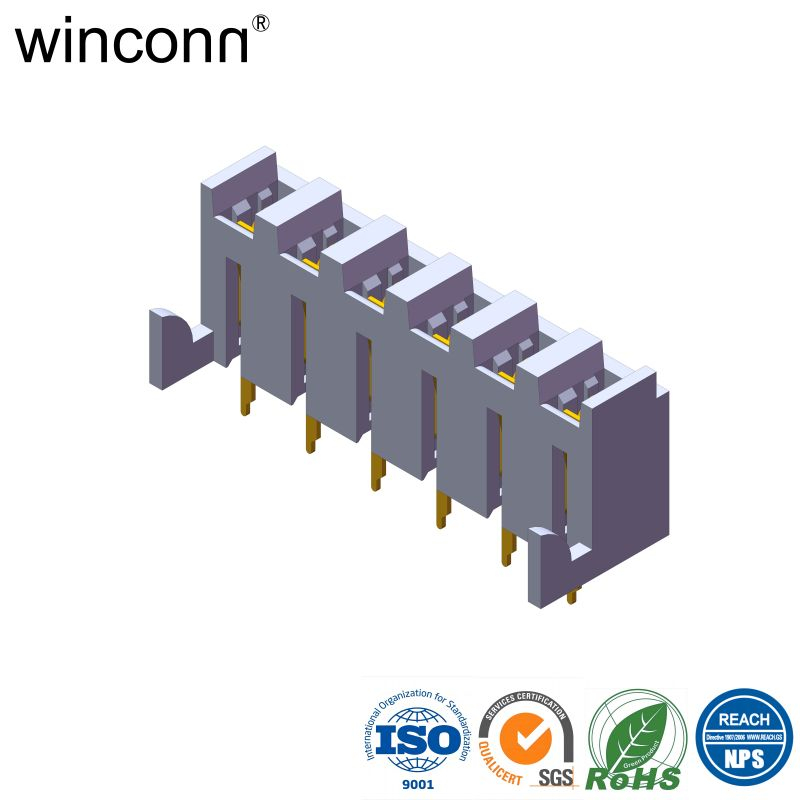

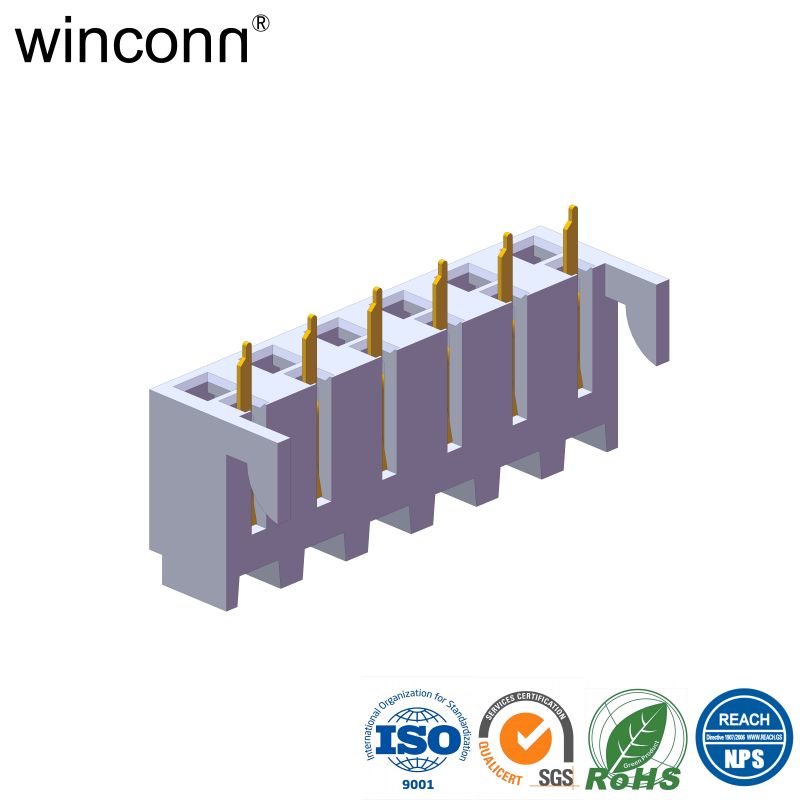

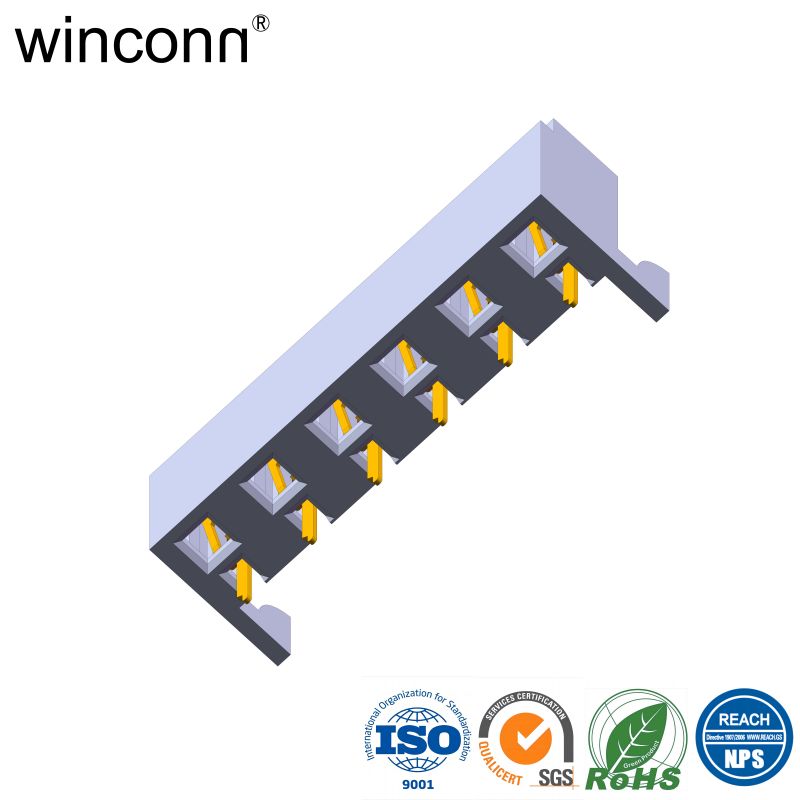

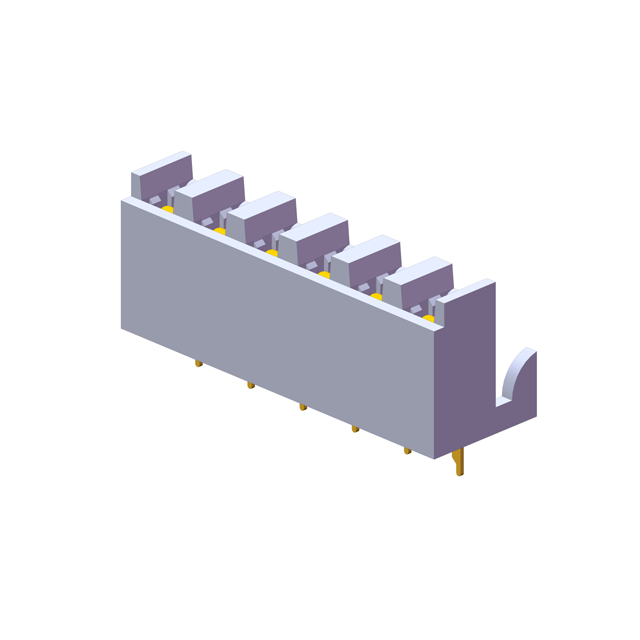

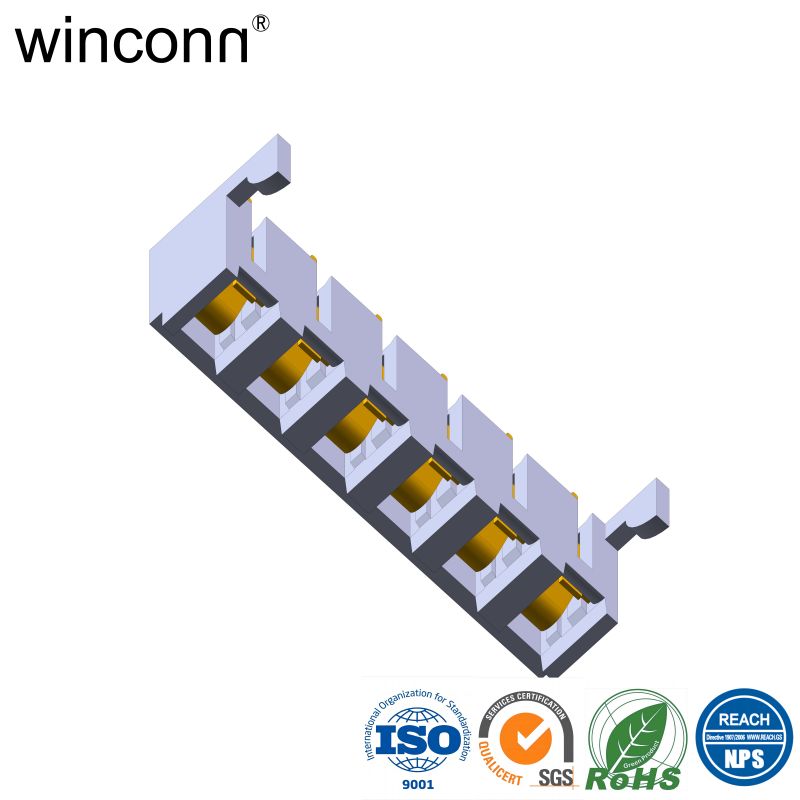

WTB 5.08mm Straight DIP connector

B5081AWV-XXP

NOTES:

1.MATERIAL:

HOUSING: NY66,UL 94V-2

CONTACT: BRASS

2.FINISH: 100u" Tin OVER 50m"MIN.NICKEL PLATED.

3.ELECTRICAL:

CONTACT RESISTANCE: 10 MILLIOHMS MAX.

INSULATION RESISTANCE: 1000 MEGAOHMS MIN.

DIELECTRIC WITHSTANDING: 1500V AC.

CURRENT RATING: 7A MAX.

VOLAGE RATING: 250V AC/DC MAX.

4.ENVIRONMENTAL: OPERATING TEMPERATURE: -40° TO +85°C.

2D Drawing
