8639 Solder Pin Straight DIP Power Supplies Markets and Applications SAS connector

P/N: SAF000-X0XX
Packing: Tube/Tray/Tape Reel
Delivery time: 25~30 Days
RoHS/HF/GP Compliant
Availability:
  • SAF000-X0XX

  • winconn

Product Description

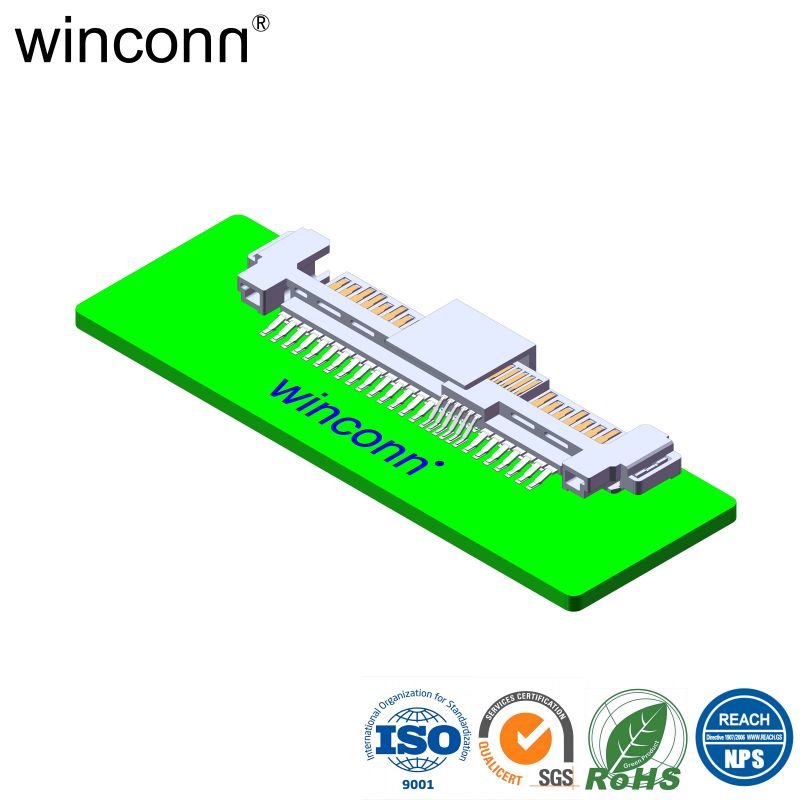

SAS 68P Female Right Angle SMT TYPE


P/N: SAF000-X0XX

1.Material:

HOUSING: THERMOPLASTIC,HIGH TEMP, 30% G/F

UL 94V-0, COLOR:BLACK.

CONTACT: PHOSPHOR BRONZE.

BOARDLOCK :BRASS.


2.FINISH:

CONTACT: AU PLATING ON CONTACT AREA SN(100m" MIN. ) PLATING

ON SOLDER TAILS,NI(50m" MIN.) UNDERPLATING OVER ALL.

BOARDLOCKS: SN (100m" MIN.) OVER NI(50m" MIN.)

UNDERPLATING OVER ALL.


3.ELECTRICAL:

CONTACT RESISTANCE: 30 mΩ MAX.

INSULATION RESISTANCE: 1000MΩ Min.

DIELECTRIC WITHSTANDING VOLTAGE: 500V AC

CURRENT RATING: 1.5A

VOLAGE RATING: 12V AC


4.MECHANICAL:

INSERTION FORCE: 45N Max

WITHDRAWAL FORCE: 10N Min

DURABILITY: 500 CYCLES


5.ENVIRONMENTAL:

OPERATING TEMPERATURE: -25°C TO +85°C


SAF000-X0XX_00

2D drawing
