SA1000-X0XX
winconn

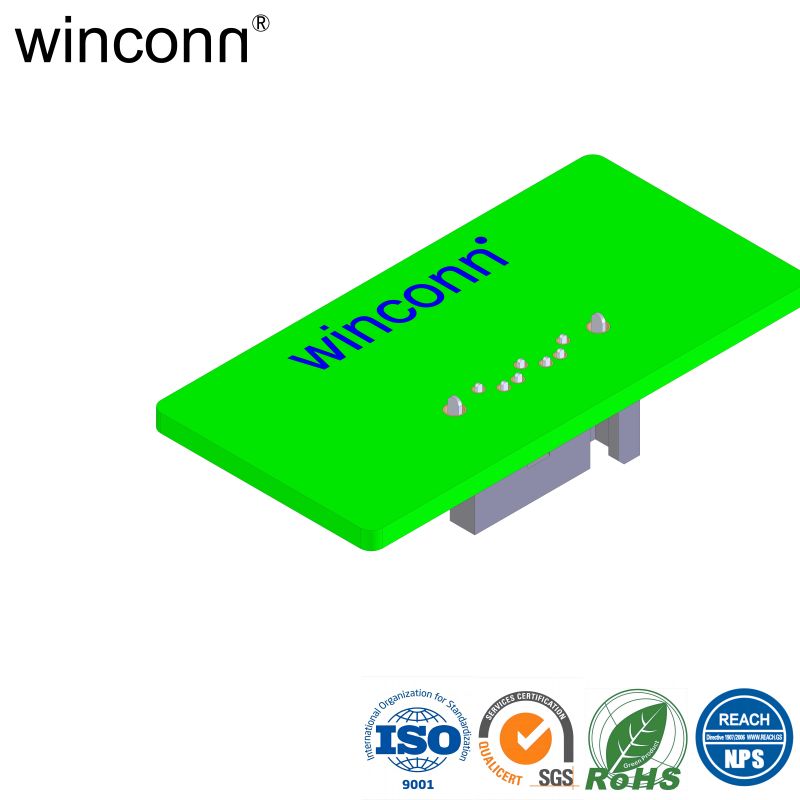

SATA 7P STRAIGHT DIP TYPE
P/N: SA1000-X0XX
1.Material:
HOUSING: THERMOPLASTIC,HIGH TEMP, 30% G/F
UL 94V-0, COLOR:BLACK.
CONTACT: BRASS.
BOARDLOCK :BRASS.
2.FINISH:
CONTACT: AU PLATING ON CONTACT AREA SN(100m" MIN. ) PLATING
ON SOLDER TAILS,NI(50m" MIN.) UNDERPLATING OVER ALL.
BOARDLOCKS: SN (100m" MIN.) OVER NI(50m" MIN.)
UNDERPLATING OVER ALL.
3.ELECTRICAL:
CONTACT RESISTANCE: 30 mΩ MAX.
INSULATION RESISTANCE: 1000MΩ Min.
DIELECTRIC WITHSTANDING VOLTAGE: 500V AC
CURRENT RATING: 1.5A
VOLAGE RATING: 12V AC
4.MECHANICAL:
INSERTION FORCE: 45N Max
WITHDRAWAL FORCE: 10N Min
DURABILITY: 500 CYCLES
5.ENVIRONMENTAL:
OPERATING TEMPERATURE: -25°C TO +85°C
